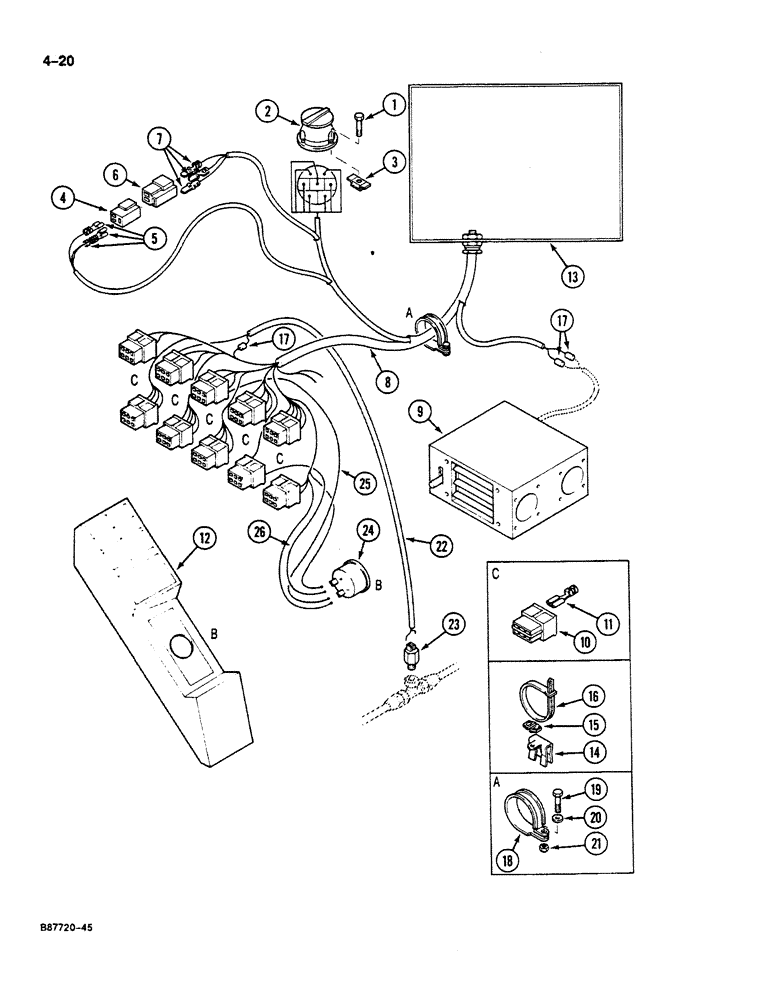

Запчасти Case 125B (4-20) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74591 THROUGH 74963, 21801 THROUGH 21868 (04) - ELECTRICAL SYSTEMS

1

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

9

P1634573

NUT

- cage type, 6 mm

3шт.

4

P1340708

CASE

CONNECTOR - male, 3-way

1шт.

5

P640945

CLIP,ELECTRICAL

CLIP - wire

3шт.

6

P840766

ELEC CONNECTOR

CONNECTOR - female, 3-way

1шт.

7

P40938

CONNECTION

RETAINER - wire

3шт.

8

P8547233

HARNESS

- instrument panel, Serial Range: 74591-74630

1шт.

8

P9547236

HARNESS

- instrument panel, Serial Range: 74631-74963

1шт.

8

P9547236

HARNESS

- instrument panel, Start Serial: 21801

1шт.

9

REF

INSTRUCTION

HEATER - see Figure 4-88

1шт.

10

P840757

CASE

CONNECTOR - male, 6-way

10шт.

11

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

12

REF

INSTRUCTION

INSTRUMENT PANEL - see Figure 4-14

1шт.

13

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 through 4-72, see Figure 4-24 for instrument panel electrical connections, Serial Range: 74631-74963

1шт.

13

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 through 4-72, see Figure 4-24 for instrument panel electrical connections, Start Serial: 21801

1шт.

14

P2036902

CLASP

CLIP - retainer, expands from 0.12" to 0.27" (3 mm - 7 mm)

1шт.

14

P2036903

CLASP

CLIP - retainer, expands from 0.31" to 0.51" (8 mm - 13 mm)

1шт.

14

P1436963

CLASP

CLIP - retainer, expands from 0.55" to 0.79" (14 mm - 20 mm)

1шт.

15

P2036939

CLASP

RETAINER - tie strap

1шт.

16

P336923

CLAMP

TIE STRAP - harness, 4-5/8" (117 mm) long

1шт.

16

P51946

CLAMP

TIE STRAP - harness, 10-1/8" (258 mm) long

1шт.

16

P136922

CLAMP

TIE STRAP - harness, 13-7/8" (351 mm) long

1шт.

17

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

3шт.

18

P1736988

CLAMP

- harness, 1-3/4" (44 mm) to 2" (51 mm) diameter

1шт.

19

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

20

P3528794

WASHER

SPACER - clamp bolt

1шт.

21

P1334571

NUT

- clamp bolt

1шт.

22

P9247229

CABLE

HARNESS -, Serial Range: electrical,-sender

1шт.

23

P1241847

ELECTRO/HYD CONTACT

SENDER - electrical, heavy lift, see Figures 8-136 (Ref. 13A) and 8-140 (Ref. 14) for hydraulic control circuit connections

1шт.

24

REF

INSTRUCTION

ALARM - low engine oil pressure, for instrument panel mounting, and parts list see Figure 4-14

1шт.

25

P9547271

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.

26

P9547272

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.
