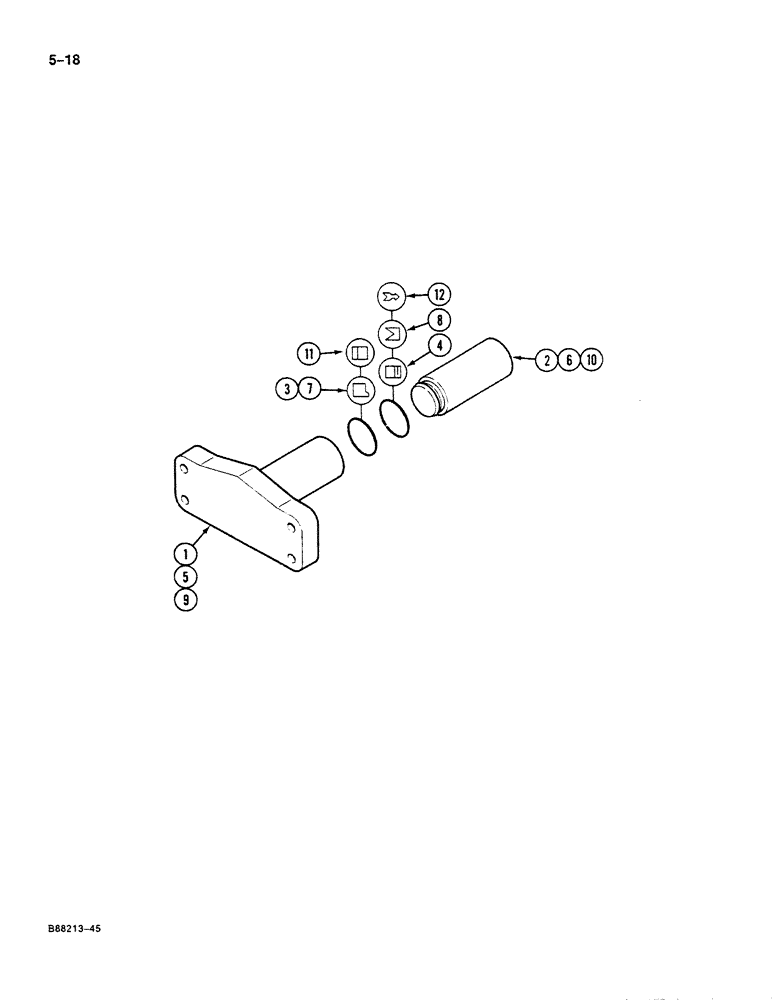

Запчасти Case 125B (5-18) - TRACK ADJUSTMENT CYLINDER, P.I.N. 74430 THROUGH 74936 (11) - TRACKS/STEERING

P6546277

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, ITM indentification, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment

1шт.

2

P7646256

PISTON

- adjustment cylinder

1шт.

3

P151234

WIPER SEAL

SEAL - piston, inner

1шт.

Ref #3 - (3 3/16 X 3 7/16 X 1/4")

1шт.

4

P3946055

SEAL

- piston, outer

1шт.

Ref #4 - (60.25 X 80 X 15)

1шт.

P6546277

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, INTERTRAC indentification, Includes: Ref. 5 - 8

2шт.

5

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment

1шт.

6

P7646259

PISTON

- adjustment cylinder

1шт.

7

P8046072

SEAL

- piston, inner

1шт.

Ref #7 - (3 1/4 X 3 5/8 X 7/16")

1шт.

8

P8046054

SEAL

- piston, outer

1шт.

Ref #8 - (2 3/8 X 3 3/16 X 7/16")

1шт.

P6546277

SHOCK ABSORBER

CYLINDER ASSEMBLY - track adjustment, POCLAIN indentification, Includes: Ref. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

BRACKET AND CYLINDER - track adjustment

1шт.

10

P8349475

STEM

PISTON - adjustment cylinder

1шт.

11

P1751227

SEAL

- piston, inner

1шт.

12

P1251302

SCRAPER

SEAL - piston, outer

1шт.

Ref #12 - (80 X 90 X 9.5) 07/09/96

1шт.
