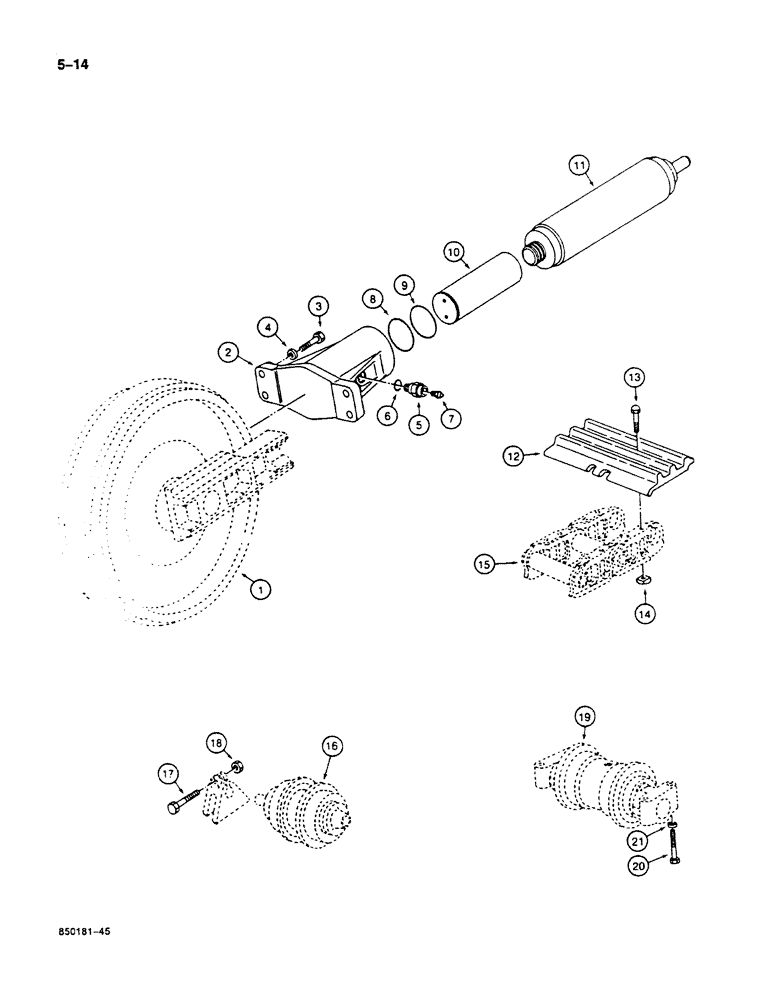

Запчасти Case 125B (5-14) - TRACK ADJUSTMENT CYLINDER AND TRACK SHOES, P.I.N. 74251 THROUGH 74429 (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, for correct assembly and components see Figures 5-26 and 5-28

2шт.

2

P5846288

BODY

BRACKET - mounting, track adjustment, Serial Range: cylinder-idler

2шт.

3

P133835

SCREW

BOLT -, Serial Range: bracket-idler

8шт.

4

P4328747

WASHER

SPACER - mounting bracket bolt

8шт.

P3043308

BLOCK ASSY.

ADAPTER ASSEMBLY - grease fitting, Includes: Ref. 5 - 7

2шт.

5

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting

1шт.

6

P1230443

O-RING

- seal, adapter

1шт.

7

J45801

LUBE NIPPLE,M8 x 1.25

- track adjustment M8 x 1.25

1шт.

8

P4046030

SEAL

- piston, inner

2шт.

Ref #8 - (90 X 100 X 10.5)

1шт.

9

P2046007

WIPER SEAL

SEAL - piston, outer

2шт.

Ref #9 - (90 X 100 X 10)

1шт.

10

P5446271

PISTON

- track adjustment

2шт.

11

P5446277

SHOCK ABSORBER

CYLINDER ASSEMBLY - shock absorber, elastomer type, component parts not serviced separately

2шт.

12

P1842364

TRACK SHOE

- grouser, 30" (750 mm) long

100шт.

12

P1842365

TRACK SHOE

- grouser, 36" (900 mm) long

100шт.

13

P3333001

SCREW

BOLT - track, Serial Range: shoe-chain

400шт.

14

P2434519

NUT

- track, Serial Range: shoe-chain

400шт.

15

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-36 for chain identification and parts list

2шт.

16

P1642328

ROLLER, TRACK

CARRIER ROLLER ASSEMBLY - track, for correct assembly and components see Figure 5-30

4шт.

17

P833815

SCREW

BOLT - carrier roller to track frame

4шт.

18

P134566

SAFETY NUT

NUT - carrier roller bolt

4шт.

19

P1642330

ROLLER, TRACK

ROLLER ASSEMBLY - track, see Figure 5-34 for roller identification and parts list

18шт.

20

P133835

SCREW

BOLT - track roller to track frame

72шт.

21

P4328747

WASHER

SPACER - track roller bolt

72шт.
