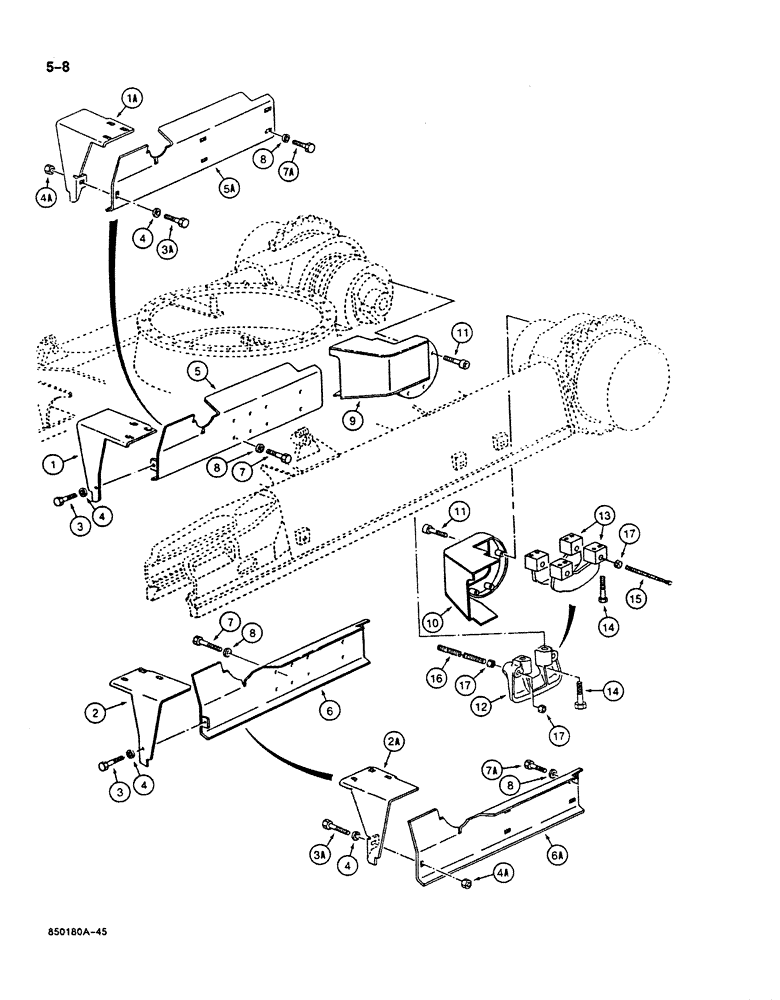

Запчасти Case 125B (5-08) - TUBE GUARDS AT TRACK FRAME, P.I.N. 74251 THROUGH 74879 (11) - TRACKS/STEERING

1

P4525686

HOUSING

GUARD - tube, right-hand front, bolts to front of center guard, if used

1шт.

1a

P4625681

HOUSING

GUARD - tube, right-hand front, bolts to side of center guard, if used

1шт.

2

P4525685

HOUSING

GUARD - tube, left-hand front, bolts to front of center guard, if used

1шт.

2a

P4625682

HOUSING

GUARD - tube, left-hand front, bolts to side of center guard, if used

1шт.

3

P33840

SCREW

BOLT - hex head, 12 mm x 30 mm, used with tube guards, reference numbers 1 and 2

2шт.

3a

P33873

SCREW

BOLT - hex head, 12 mm x 25 mm, used with tube guards, 1A and 2A

2шт.

4

P3528793

WASHER

SPACER - front tube guard bolt, 8 mm thick

2шт.

4a

P1334578

NUT

- hex, 12 mm, used with front guards items 1A and 2A only

2шт.

5

P4340361

HOUSING

GUARD - tube, right-hand center, with oval slots for mounting hardware, if used

1шт.

5a

P4340384

HOUSING

GUARD - tube, right-hand center, with rectangular slots for mounting hardware, if used

1шт.

6

P4340360

HOUSING

GUARD - tube, left-hand center, with oval slots for mounting hardware, if used

1шт.

6a

P4340385

HOUSING

GUARD - tube, left-hand center, with rectangular slots for mounting hardware, if used

1шт.

7

P33840

SCREW

BOLT - hex head, 12 mm x 30 mm, used with tube guards, reference numbers 5 and 6

8шт.

7a

P33873

SCREW

BOLT - hex head, 12 x 25 mm, used with tube guards, reference numbers 5A and 6A

8шт.

8

P3528793

WASHER

SPACER - center tube guard bolt, 8 mm thick

8шт.

9

P3940395

HOUSING

GUARD - tube, right-hand rear

1шт.

10

P3940394

HOUSING

GUARD - tube, left-hand rear

1шт.

11

P1532904

SCREW

BOLT - hex socket head, 20 mm x 70 mm

6шт.

12

P1604022

GUIDE

GUARD - track, at track frame, cast type

8шт.

Ref #12 - Adopt P1929258 Spacers

1шт.

13

P2346165

GUIDE

GUARD - track, at track frame, fabricated type

8шт.

14

P133835

SCREW

BOLT - hex head, 20 mm x 100 mm, guard to track frame

16шт.

15

P2527766

TRUSS ROD

STUD - tie, inner to outer track guard, used with fabricated type guard

8шт.

16

P2527752

STEM

STUD - tie, inner to outer track guard, used with cast type guard

8шт.

17

P34229

NUT

- hex, 24 mm

32шт.
