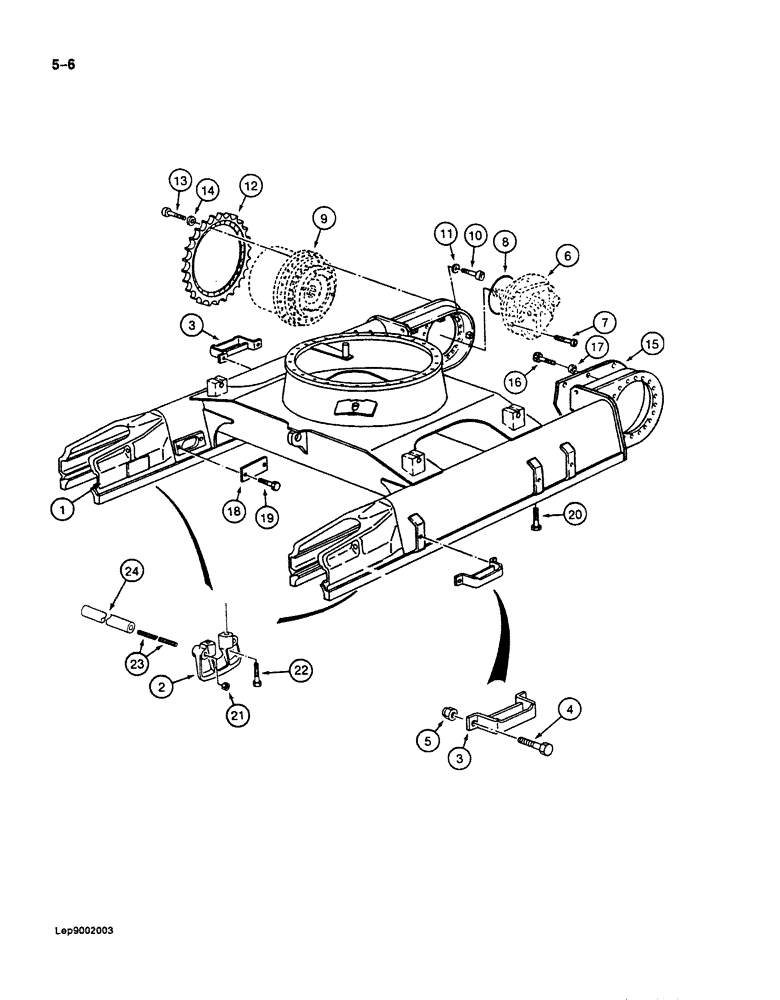

Запчасти Case 125B (5-06) - TRACK FRAME AND UNDERCARRIAGE, P.I.N. 21819 THROUGH 21868, 26801 AND AFTER (11) - TRACKS/STEERING

1

P2254602

FRAME

TRACK FRAME ASSEMBLY - excavator, Serial Range: 21819-21861

1шт.

1

P1254668

CHASSIS

TRACK FRAME ASSEMBLY - excavator, Serial Range: 21862-21868

1шт.

1

P1254668

CHASSIS

TRACK FRAME ASSEMBLY - excavator, Start Serial: 26801

1шт.

2

P1604022

GUIDE

- track, at track frame, front, bolted to track frame

4шт.

3

P1304073

STEP

- assist, at track frame

2-4шт.

4

P133805

SCREW

BOLT -, Serial Range: step-frame

4-8шт.

5

P34562

SAFETY NUT

NUT - hex, step bolt

4-8шт.

6

REF

INSTRUCTION

MOTOR ASSEMBLY - track drive, parts list Figure 6-12

2шт.

7

P532988

SCREW

BOLT - hex socket head, 10 mm x 25 mm, class 10.9

12шт.

8

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- drive motor to final drive transmission

2шт.

9

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - final drive, parts list Figures 6-4 and 6-6

2шт.

10

P732986

SCREW

BOLT - hex socket head, 20 mm x 75 mm, class 10.9

40шт.

11

P4328747

WASHER

SPACER - bolt, 14 mm thick

40шт.

12

P1942392

DRIVE SPROCKET

SPROCKET - drive

2шт.

13

P632962

SCREW

BOLT - hex socket head, 20 mm x 60 mm, class 10.9

32шт.

14

P4328747

WASHER

SPACER - bolt, 14 mm thick

32шт.

15

P4524135

HOUSING

GUARD - drive motor, inside track frame

2шт.

16

P33873

SCREW

BOLT - hex head, 12 mm x 25 mm

10шт.

17

P3528793

WASHER

SPACER - bolt, 8 mm thick

10шт.

18

P2923161

PLATE

- cover, track frame

2шт.

19

P33873

SCREW

BOLT - hex head, 12 mm x 25 mm

4шт.

20

P333888

SCREW

BOLT - hex head, 20 mm x 30 mm, used when optional rear track guards are not installed

8шт.

21

P34229

NUT

- hex, 24 mm

8шт.

22

P1633877

SCREW

BOLT - hex head, 20 mm x 100 mm, class 10.9, guards to track frame, Start Serial: 21807

8шт.

23

P2527752

STEM

STUD - tie, inner to outer track guard

4шт.

24

P1929258

SPACER

- guide

4шт.
