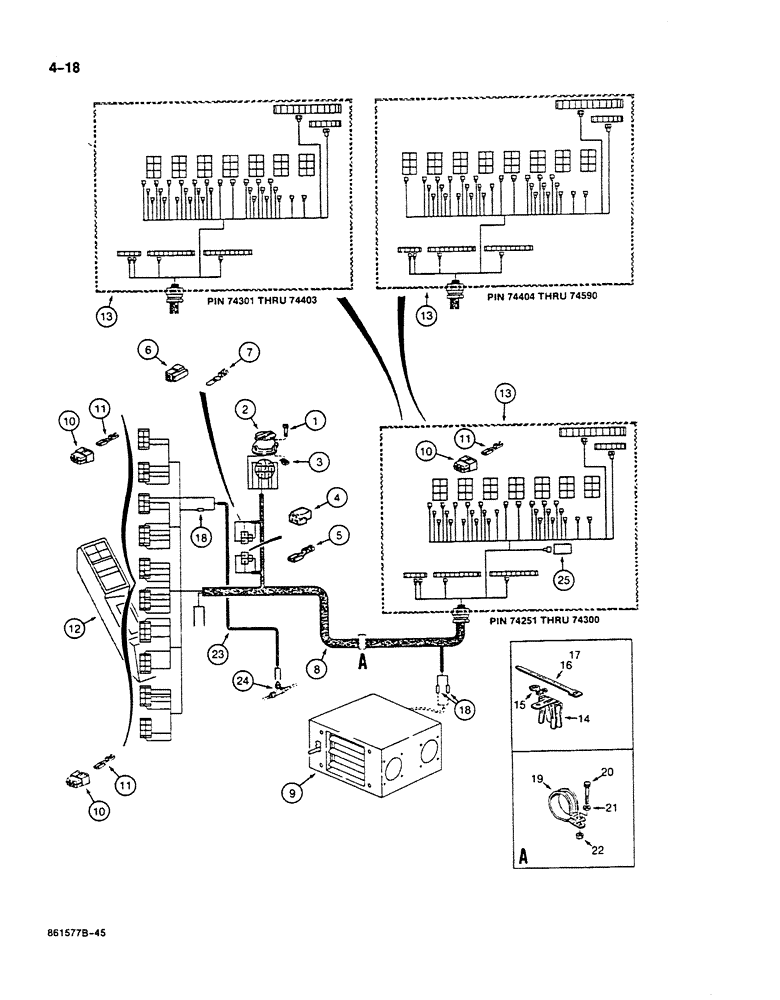

Запчасти Case 125B (4-18) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74251 THROUGH 74590 (04) - ELECTRICAL SYSTEMS

1

P32550

SCREW

- socket mounting

3шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

3

P1634573

NUT

- square, socket bolt

3шт.

4

P1340708

CASE

CONNECTOR - male, 3-way

1шт.

5

P640945

CLIP,ELECTRICAL

CLIP - wire

3шт.

6

P840766

ELEC CONNECTOR

CONNECTOR - female, 3-way

1шт.

7

P40938

CONNECTION

RETAINER - wire

3шт.

8

P8547233

HARNESS

- instrument panel

1шт.

9

REF

INSTRUCTION

HEATER - see Figure 4-88

1шт.

10

P840757

CASE

CONNECTOR - male, 6-way

18шт.

11

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

12

REF

INSTRUCTION

INSTRUMENT PANEL - see Figure 4-12

1шт.

13

REF

INSTRUCTION

BOX - electrical, see Figures 4-60 and 4-62

1шт.

14

P2036902

CLASP

CLIP - retainer, expands from 0.12" - 0.27" (3 mm to 7 mm)

1шт.

15

PP2036939

CLASP

RETAINER - tie strap

1шт.

16

P336923

CLAMP

TIE STRAP - harness, 4.6" (117 mm) long

1шт.

17

P51946

CLAMP

TIE STRAP - harness, 10.2" (258 mm) long

1шт.

18

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

3шт.

19

P1736988

CLAMP

- harness, 1.73" (44 mm) to 2.0" (51 mm) diameter

1шт.

20

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

21

P3528794

WASHER

SPACER - clamp bolt

1шт.

22

P1334571

NUT

- clamp bolt

1шт.

23

P9247229

CABLE

HARNESS -, Serial Range: electrical,-sender

1шт.

24

REF

INSTRUCTION

SENDER - electrical, heavy lift, see Figure 8-132, Ref. 13A for hydraulic control circuit connectors, and parts list

1шт.

25

REF

INSTRUCTION

CONNECTOR - electrical, instrument panel harness to printed circuit in electrical box, see Figure 4-62, reference number 68

1шт.
