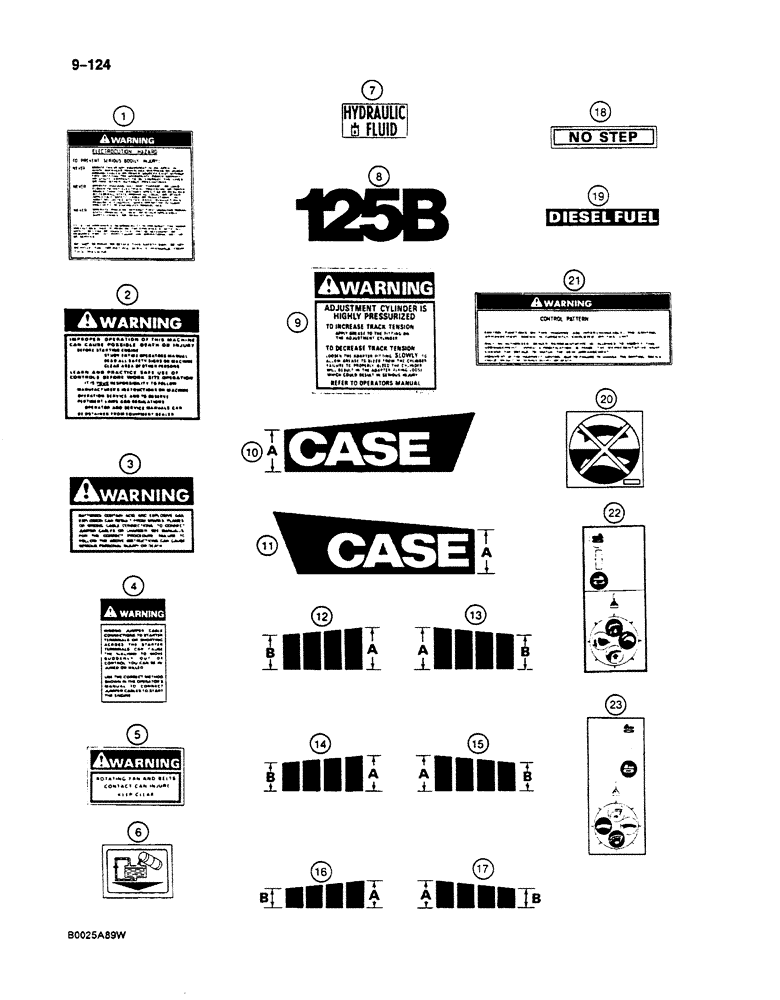

Запчасти Case 125B (9-124) - DECALS, P.I.N. 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P6147566
DECAL
- Warning, Electrocution Hazard
1шт.
2
P6147565
DECAL
- Warning, Improper Operation
1шт.
3
P251593
DECAL
- Warning, Batteries Contain Acid
1шт.
4
P251592
DECAL
- Warning, Wrong Jumper Cable Connections
1шт.
5
P251594
DECAL
- Warning, Rotating Fan and Belts
2шт.
6
P1451593
DECAL
- hydraulic system
1шт.
7
P251591
DECAL
- Hydraulic Fluid
1шт.
8
P251577
DECAL
- 125B
2шт.
9
P251597
DECAL
- Warning, Adjustment Cylinder Is Highly Pressurized
2шт.
10
P1651553
DECAL
- Case, left-hand side of boom, "A" dimension is 291 mm
1шт.
11
P1651554
DECAL
- case, right-hand side of boom, "A" dimension is 291 mm
1шт.
12
P1651555
DECAL
- treads, left-hand side of boom, "A" dimension is 289 mm, "B" dimension is 239 mm
1шт.
13
P1651556
DECAL
- treads, right-hand side of boom, "A" dimension is 289 mm, "B" dimension is 239 mm
1шт.
14
P1451541
DECAL
- treads, left-hand side of boom, "A" dimension is 237 mm, "B" dimension is 187 mm
1шт.
15
P1451545
DECAL
- treads, right-hand side of boom, "A" dimension is 237 mm, "B" dimension is 187 mm
1шт.
16
P1451542
DECAL
- treads, left-hand side of boom, "A" dimension is 185 mm, "B" dimension is 135 mm
1шт.
17
P1451546
DECAL
- treads, right-hand side of boom, "A" dimension is 185 mm, "B" dimension is 135 mm
1шт.
18
P251596
DECAL
- No Step
2шт.
19
P251595
DECAL
- Diesel Fuel
1шт.
20
P2247581
DECAL
- house lock location
1шт.
21
P6147567
DECAL
- Warning, Control Pattern
1шт.
22
S242817
DECAL
- control pattern A, right-hand side, optional
1шт.
22
S242830
DECAL
- control pattern C, right-hand side, optional
1шт.
22
P7947567
DECAL
- control pattern D, right-hand side, standard
1шт.
23
S242818
DECAL
- control pattern A, left-hand side, optional
1шт.
23
S242829
DECAL
- control pattern C, left-hand side, optional
1шт.
23
P7947568
DECAL
- control pattern D, left-hand side, standard
1шт.
Выбрано товаров: 27
