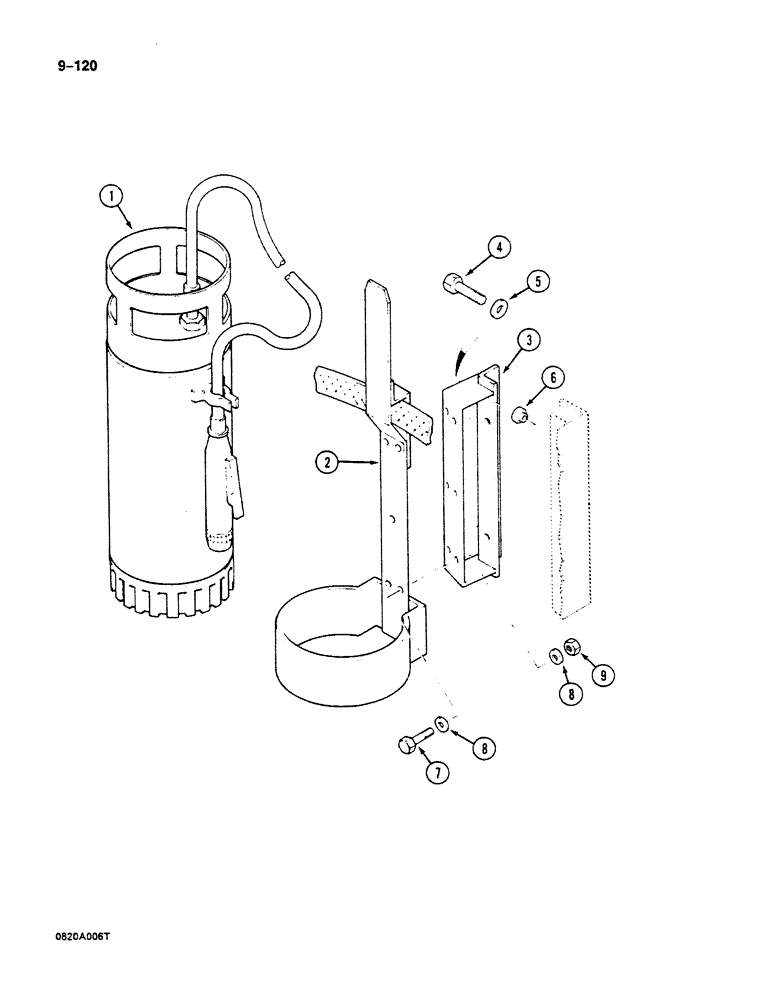

Запчасти Case 125B (9-120) - OPTIONAL FIRE EXTINGUISHER (09) - CHASSIS

1

P2843289

FIRE EXTINGUISHER

- excavator

1шт.

2

P7428202

SUPPORT

HOLDER - fire extinguisher

1шт.

3

P5628281

SUPPORT

BRACKET - mounting, holder

1шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

5

P3528794

WASHER

SPACER - 6 mm thick, mounting bolt

4шт.

6

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

4шт.

7

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

4шт.

8

P34611

WASHER

- flat, 10 mm

8шт.

9

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm - 1.5

4шт.
