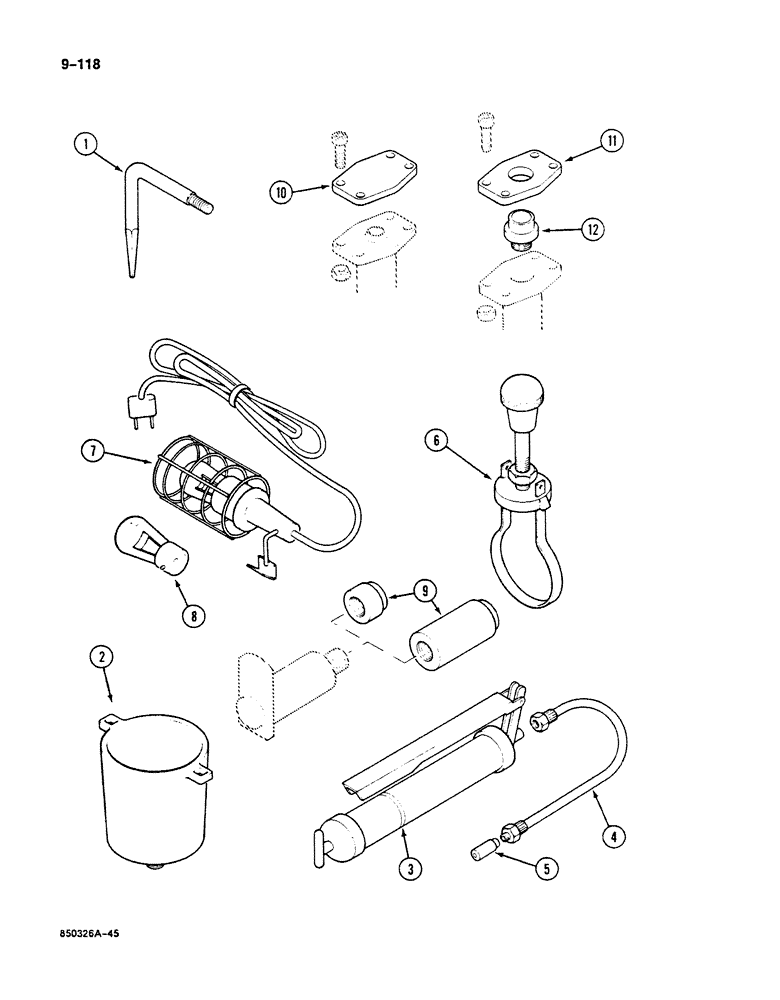

Запчасти Case 125B (9-118) - TOOLS, P.I.N. 74251 THROUGH 74963, 21801 THORUGH 21868, 28601 AND AFTER, STANDARD TOOLS (09) - CHASSIS

1

P52025

PLATE,SMALL SQUARE

HANDLE - square-end, hydraulic reservoir suction screen filter shutoff

1шт.

2

P840279

FUNNEL

- hydraulic reservoir oil, optional tool

1шт.

P44433

PUMP

ASSEMBLY - grease, optional tool, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PUMP - grease, optional tool

1шт.

4

PP31983

HOSE

- grease pump, optional tool

1шт.

5

P144420

CLASP

CAP - grease pump hose, optional tool

1шт.

6

P2644482

KEY

WRENCH - filter, strap type, optional tool

1шт.

7

P244462

LAMP

- inspection, optional tool

1шт.

8

P40585

LAMP

BULB - 24 volt, inspection lamp, optional tool

1шт.

9

P1644439

SLEEVE - threaded, arm to boom pin, 3.15" (80 mm) dia., optional tool

1шт.

9

P929941

CONE

SLEEVE - threaded, boom to turntable pin, 3.94" (100 mm) dia, optional tool

1шт.

10

P1937744

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 0.67" (17 mm) dia., optional tool

1шт.

11

P1224246

SHIN

PLATE - cover, hydraulic tube plug, 0.67" (17 mm) dia., optional tool

1шт.

12

P1627863

BLANK-OFF PLUG

PLUG - hydraulic tube, 0.67" (17 mm) dia., optional tool

1шт.

10

P1337777

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 0.83" (21 mm) dia., optional tool

1шт.

11

P724184

SHIN

PLATE - cover, hydraulic tube plug, 0.83" (21 mm) dia., optional tool

1шт.

12

P1627864

BLANK-OFF PLUG

PLUG - hydraulic tube, 0.83" (21 mm) dia., optional tool

1шт.

10

P1337778

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 1.06" (27 mm) dia., optional tool

1шт.

11

P724185

SHIN

PLATE - cover, hydraulic tube plug, 1.06" (27 mm) dia., optional tool

1шт.

12

P1627865

BLANK-OFF PLUG

PLUG - hydraulic tube, 1.06" (27 mm) dia., optional tool

1шт.

10

P1937727

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 1.34" (34 mm) dia., optional tool

1шт.

11

P1324196

SHIN

PLATE - cover, hydraulic tube plug, 1.34" (34 mm) dia., optional tool

1шт.

12

P537716

BLANK-OFF PLUG

PLUG - hydraulic tube, 1.34" (34 mm) dia., optional tool

1шт.

10

P1337779

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 1.65" (42 mm) dia., optional tool

1шт.

11

P724186

SHIN

PLATE - cover, hydraulic tube plug, 1.65" (42 mm) dia., optional tool

1шт.

12

P1627866

BLANK-OFF PLUG

PLUG - hudraulic tube, 1.65" (42 mm) dia., optional tool

1шт.
