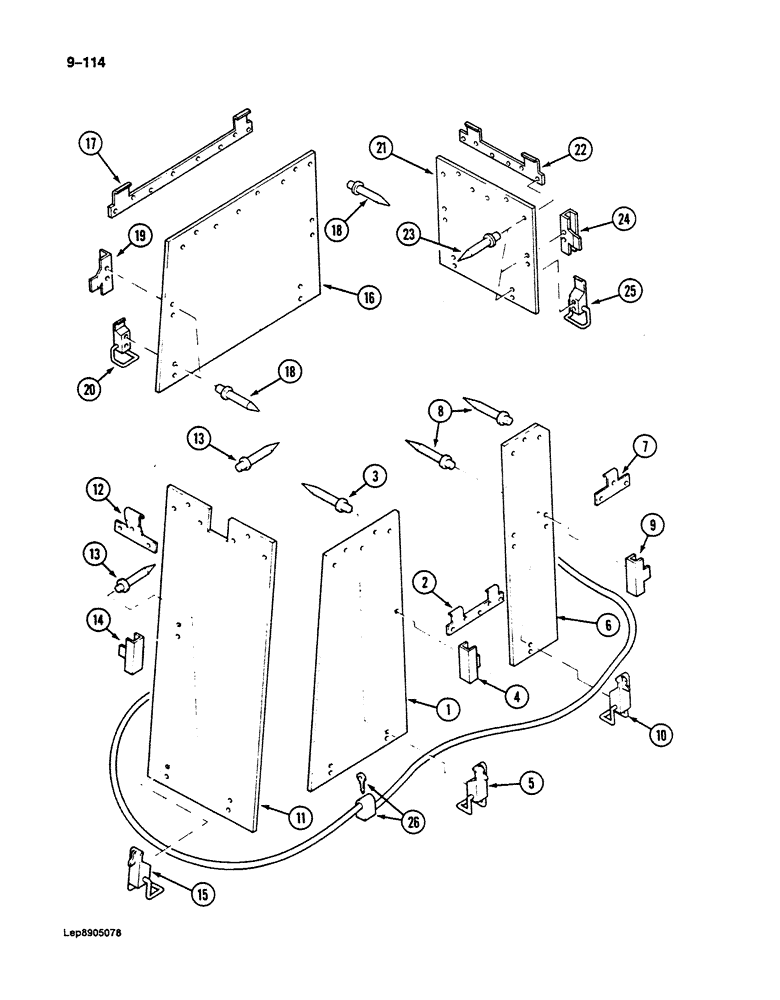

Запчасти Case 125B (9-114) - OPTIONAL CAB ANTI-VANDALISM GUARDS, GUARDS AND LOCKING PARTS (09) - CHASSIS

P2047019

PROTECTOR

GUARD ASSEMBLY - cab door window, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - door window

1шт.

2

P3226115

SWIVEL HOOK

BRACKET - top

1шт.

3

P35418

RIVET

- pop, 8 mm x 17 mm

13шт.

4

P2425963

HANDLE

BRACKET - side

2шт.

5

P3036975

CLAMP

LATCH - guard, lower

2шт.

P2047017

PROTECTOR

GUARD ASSEMBLY - cab left-hand side window, rear, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

GUARD - left-hand side window, rear

1шт.

7

P3226118

SWIVEL HOOK

BRACKET - top

1шт.

8

P35418

RIVET

- pop, 8 mm x 17 mm

9шт.

9

P3326314

HANDLE

BRACKET - side

2шт.

10

P3036975

CLAMP

LATCH - guard, lower

1шт.

P2047018

PROTECTOR

GUARD ASSEMBLY - cab windshield, Includes: Ref. 11- 15

1шт.

11

NSS

NOT SOLD SEPARAT

GUARD - windshield

1шт.

12

P3326313

SWIVEL HOOK

BRACKET - top

2шт.

13

P35418

RIVET

RIVER - pop, 8 mm x 17 mm

14шт.

14

P2425963

HANDLE

BRACKET - side

2шт.

15

P3036975

CLAMP

LATCH - guard, lower

2шт.

P2047016

PROTECTOR

GUARD ASSEMBLY - cab right-hand side window, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

GUARD - right-hand side window

1шт.

17

P3226116

SWIVEL HOOK

BRACKET - top

1шт.

18

P35418

RIVET

- pop, 8 mm x 17 mm

16шт.

19

P3326314

HANDLE

BRACKET - side

2шт.

20

P3036975

CLAMP

LATCH - guard, lower

2шт.

P2047015

PROTECTOR

GUARD ASSEMBLY - cab rear window, Includes: Ref. 21- 23

1шт.

21

NSS

NOT SOLD SEPARAT

GUARD - rear window

1шт.

22

P3226117

SWIVEL HOOK

BRACKET - top

1шт.

23

P35418

RIVET

- pop, 8 mm x 17 mm

14шт.

24

P3326314

HANDLE

BRACKET - side

2шт.

25

P3036975

CLAMP

LATCH - guard, lower

2шт.

26

P1352022

PADLOCK

CABLE AND LOCK ASSEMBLY - cab window guards

1шт.
