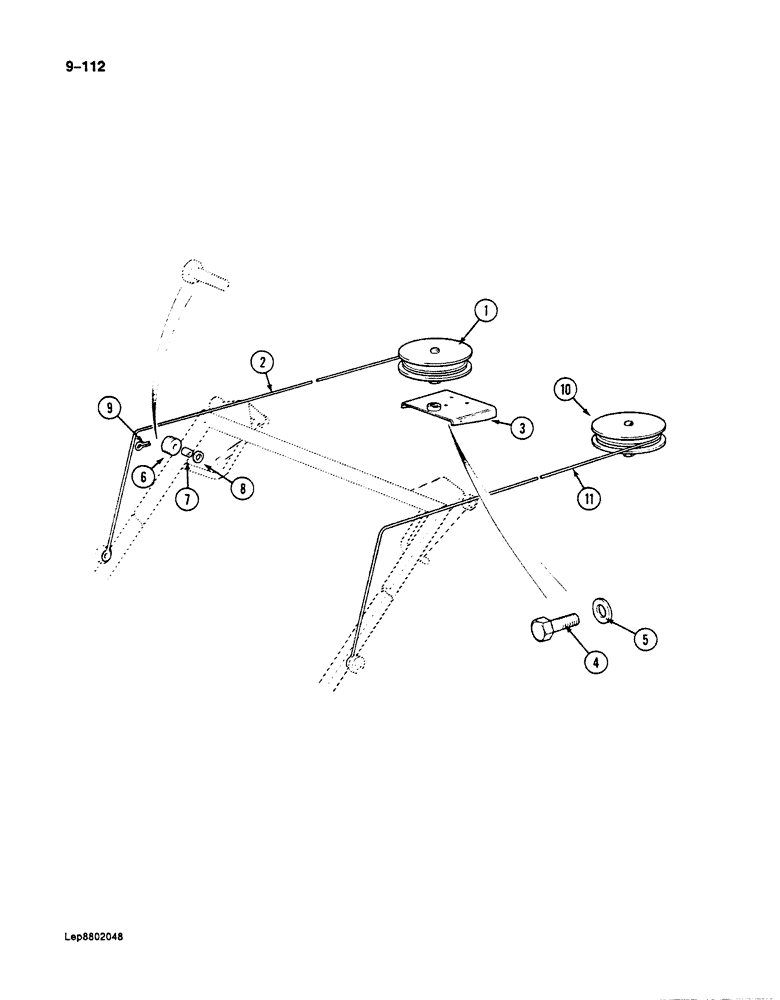

Запчасти Case 125B (9-112) - WINDSHIELD OPENING PARTS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-82 or 9-90, Includes: Ref. 1 - 11

1шт.

1

P5242727

CABLE WINDER

CABLE AND SPOOL ASSEMBLY - windshield opening, right-hand

1шт.

2

P9847252

CABLE

- windshield opening

1шт.

3

P4127158

SUPPORT

BRACKET - mounting, cable and spring

2шт.

4

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

mounting bracket Hex, M8 x 30, 8.8

4шт.

5

P3528794

WASHER

SPACER - 6 mm thick, bracket bolt

4шт.

6

P538589

PULLEY

- windshield cable

2шт.

7

P29299

SELF LUB RING

BUSHING - cable pulley

2шт.

8

P34611

WASHER

- flat, 10 mm, cable pulley

2шт.

9

P35512

SPLIT PIN

PIN - cotter, 2 mm x 30 mm, cable pulley

2шт.

10

P5242728

CABLE WINDER

CABLE AND SPOOL ASSEMBLY - windshield opening, left-hand, Includes: Ref. 11

1шт.

11

P9847252

CABLE

- windshield opening

1шт.
