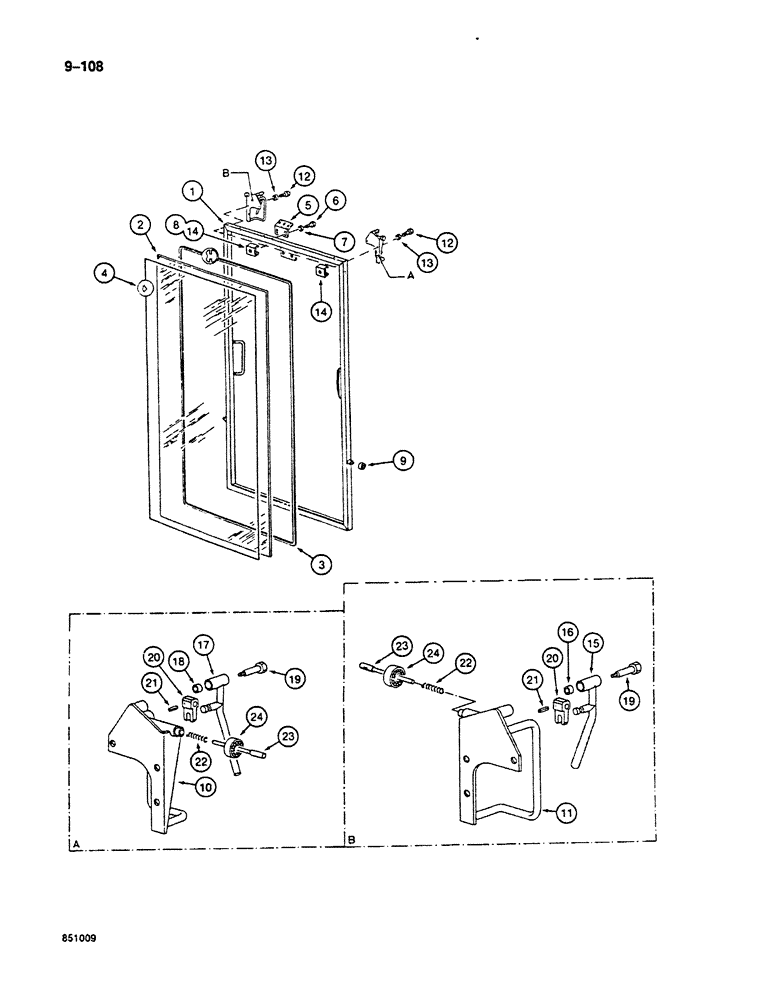

Запчасти Case 125B (9-108) - CAB WINDSHIELD, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21806 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
REF
INSTRUCTION
CAB ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Includes: Ref. 1 - 24
1шт.
P1347086
WINDSHIELD
ASSEMBLY - cab, Includes: Ref. 1 - 24
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME - windshield
1шт.
2
P1347088
GLASS
- windshield
1шт.
3
P8046008
SEAL
RETAINER -, Serial Range: glass-frame
1шт.
4
REF
INSTRUCTION
SEAL - windshield glass, 181" (4597 mm) long, cut from P346008
8шт.
5
P2826130
SUPPORT
BRACKET - wiper terminal switch, see Figures 4-34 or 4-36 for switches and wiring
1шт.
7
P234587
NUT
WASHER - flat, 8 mm
2шт.
8
P234587
NUT
RETAINER - bolt, clip type
2шт.
9
P139633
BEARING
- ball, windshield track, at frame
2шт.
10
P852079
CYLINDER END CAP
BRACKET - windshield release, left-hand
1шт.
11
P852078
SUPPORT
BRACKET - windshield release, right-hand
1шт.
13
P745438
WASHER
- flat, 8 mm
6шт.
14
P234587
NUT
RETAINER - bolt, clip type
6шт.
P4842701
LEVER
HANDLE ASSEMBLY - windshield release, right-hand, Includes: Ref. 15 and 16
1шт.
15
NSS
NOT SOLD SEPARAT
HANDLE - windshield release, right-hand
1шт.
16
P29299
SELF LUB RING
BUSHING - release handle
2шт.
P4042799
LEVER
HANDLE ASSEMBLY - windshield release, left-hand, Includes: Ref. 17 and 18
1шт.
17
NSS
NOT SOLD SEPARAT
HANDLE - windshield release, left-hand
1шт.
18
P29299
SELF LUB RING
BUSHING - release handle
2шт.
19
P1827967
PIN
BOLT - shoulder, Serial Range: handle-bracket
2шт.
20
P7646275
CLEVIS
LEVER - lock plunger
2шт.
21
P35720
SPLIT PIN/SAFETY PIN
PIN - roll, Serial Range: lever-plunger
2шт.
22
P738143
COMPRESSION SPRING
SPRING - plunger return
2шт.
23
P5327897
PLUNGER
- windshield release
2шт.
24
P139633
BEARING
- ball, windshield track, at release bracket
2шт.
Выбрано товаров: 28
