Запчасти Case 125B (4-16) - ELECTRICAL CONTROL PANEL, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

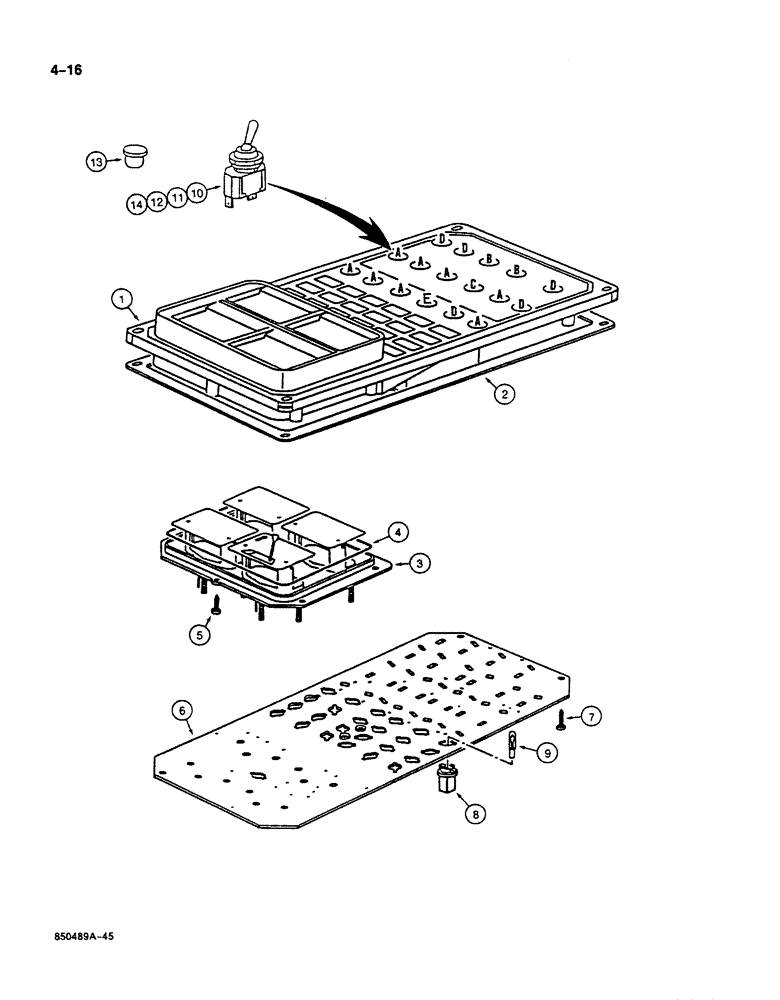

Схема запчастей Case 125B - (4-16) - ELECTRICAL CONTROL PANEL, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

P7043857

PANEL, INSTRUMENTS

PANEL ASSEMBLY - control, Includes: Ref. 1 - 14

1шт.

1

P2241062

FRAME

COVER - control

1шт.

2

P7546028

SEAL

GASKET - control panel, Serial Range: cover-console

1шт.

3

P7947574

BOTTOM

INSTRUMENT CLUSTER - control panel

1шт.

4

P7546029

SEAL

GASKET -, Serial Range: cluster-cover

1шт.

5

P2033026

SCREW

-, Serial Range: cluster-cover

6шт.

6

P151638

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - control panel

1шт.

7

P2033026

SCREW

- printed, Serial Range: circuit-panel

2шт.

8

P1941442

SUPPORT

SOCKET - control panel lamp

22шт.

9

P40506

LAMP

BULB - control panel lamp

22шт.

10

P641619

IGNITION SWITCH

SWITCH - toggle, control panel, "A" location

8шт.

11

P641611

SWITCH

- toggle, control panel, "B" location

2шт.

12

P641609

SWITCH

- toggle, control panel, "C" location

1шт.

13

P1540469

BLANK-OFF PLUG

PLUG - control panel, "D" location

5шт.

14

P2141698

SWITCH

- toggle, control panel, "E" location

1шт.

Выбрано товаров: 15
