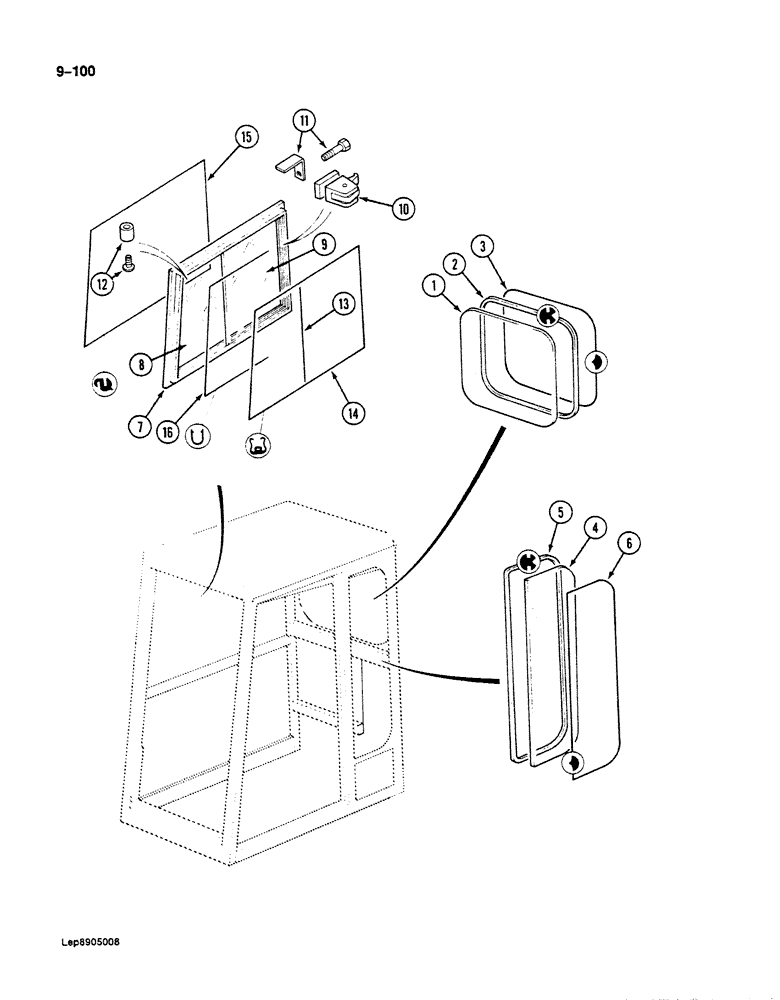

Запчасти Case 125B (9-100) - CAB, CAB GLASS, INSULATION AND SEALS, P.I.N. 21807 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-90 and 9-92, Includes: Ref. 1 - 16

1шт.

1

P2047006

GLASS

- window, cab rear

1шт.

2

P8846016

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

3

REF

INSTRUCTION

SEAL - window glass, 118-1/8" long, cut from P1303170

1шт.

4

P1347048

GLASS

- window, cab side, left-hand

1шт.

5

P7146074

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

6

REF

INSTRUCTION

SEAL - window glass, 122" long, cut from P346008

1шт.

P2047008

WINDOW

ASSEMBLY - sliding, right-hand cab side, Includes: Ref. 7 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

WINDOW - sliding, cab

1шт.

8

P2047042

GLASS

- front window glass, right-hand

1шт.

9

P2047041

GLASS

- rear window glass, right-hand

1шт.

10

P1352046

LOCK

LATCH - glass, rear

1шт.

11

P8646260

SPARE PART SET

KIT - window repairing, angle and bolts

1шт.

12

P8646261

SPARE PART SET

KIT - window repairing, stop rubber

1шт.

13

REF

INSTRUCTION

SEAL - between sliding glass, 32-1/4" long, cut from P1303187

1шт.

14

REF

INSTRUCTION

SEAL - glass, channel, 165-3/8" long, cut from P1303188

1шт.

15

REF

INSTRUCTION

SEAL - window to cab frame,165-3/8" long, cut from P1303186

1шт.

16

REF

INSTRUCTION

SEAL - window, internal, 88" long, cut from P9346038

1шт.
