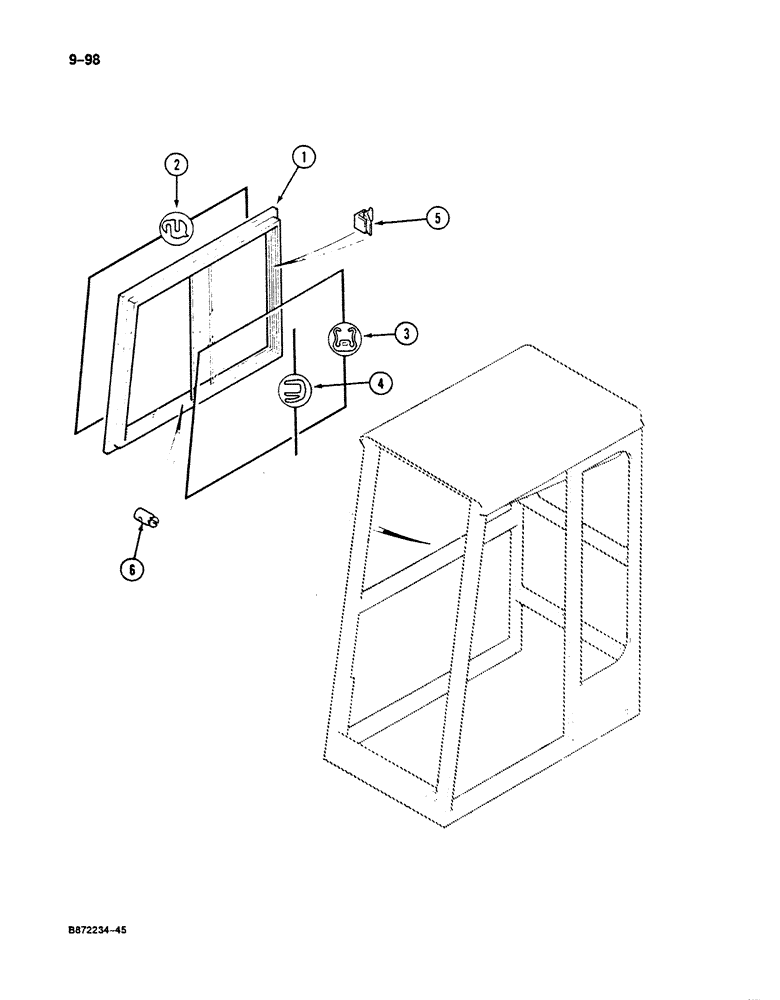

Запчасти Case 125B (9-098) - CAB, SLIDING WINDOW, IF USED (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figure 9-82 and 9-84, Includes: Ref. 1 - 6

1шт.

P2047008

WINDOW

ASSEMBLY - sliding, right-hand cab side, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

WINDOW - sliding, cab, Includes: Ref. 2 - 6

1шт.

2

REF

INSTRUCTION

SEAL - window to cab frame, 165-3/8" (4200 mm) long cut from P1303186

1шт.

3

REF

INSTRUCTION

SEAL - glass, channel, 165-3/8" (4200 mm) long, cut from P1303188

1шт.

4

REF

INSTRUCTION

SEAL - between sliding glass, 32-1/4" (820 mm) long, cut from P103187

1шт.

5

P1352031

LATCH ASSY.

HANDLE - glass pull

1шт.

6

P8346202

STOP

LATCH - sliding glass

1шт.
