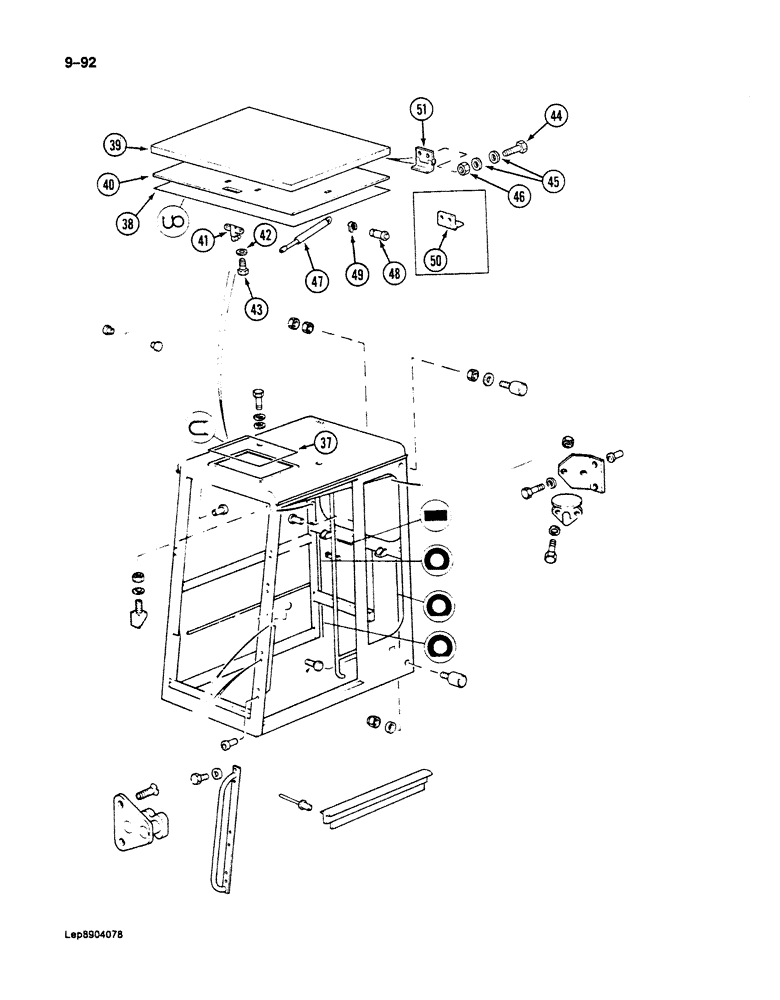

Запчасти Case 125B (9-092) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 21807 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figure 9-90, Includes: Ref. 37 - 50

1шт.

37

REF

INSTRUCTION

SEAL - cab roof to panel, 82-3/4" long, cut from P303112

1шт.

38

REF

INSTRUCTION

SEAL - at roof panel, 82-3/4" long, cut from P303167

1шт.

39

P8443834

HATCH

PANEL - roof, access cover

1шт.

40

P4241478

CLOTHES

INSULATION - access cover

1шт.

41

P1352049

LOCK

LATCH - panel open

1шт.

42

P35001

WASHER

- flat, 6 mm

2шт.

43

P32621

SCREW

BOLT - hex head, 6 mm x 16 mm

2шт.

44

P32610

SCREW

BOLT - hex head, 4 mm x 16 mm

4шт.

45

P34603

WASHER

- flat, 4 mm

8шт.

46

P34107

NUT - hex, 4 mm

4шт.

47

P3036997

GAS STRUT

GAS SPRING - panel control

1шт.

48

P6427819

PIN

- gas spring

4шт.

49

P1352050

SHAFT LOCK

CLIP - retainer

4шт.

50

P1352048

HINGE

- roof panel

2шт.
