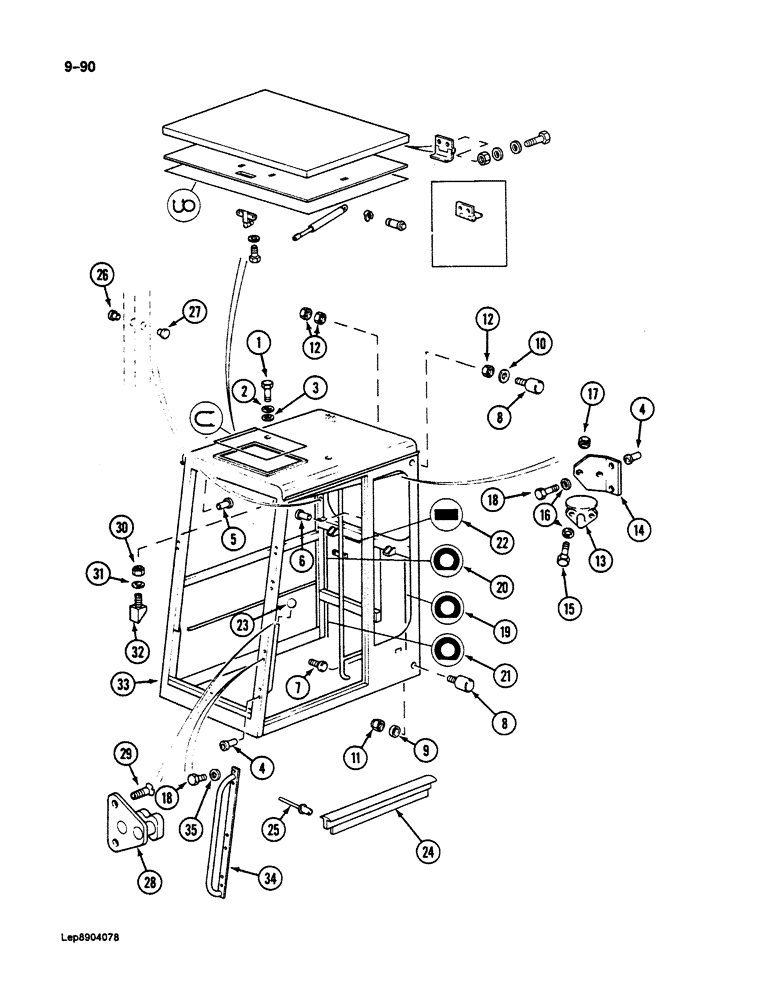

Запчасти Case 125B (9-090) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 21807 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

P8443829

CAB

ASSEMBLY - excavator, Includes: Ref. 1 - 35

1шт.

1

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

At cab top Hex, M14 x 30

2шт.

2

P35044

WASHER

- lock, 14 mm

2шт.

3

P945237

WASHER

- flat, 14 mm

2шт.

4

P834513

NUT

RETAINER - bolt, sleeve type, use as plug in some locations, 6 mm

22шт.

5

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

6шт.

6

P35444

RIVET

RETAINER - bolt, sleeve type, 4 mm

2шт.

7

P1827953

PIN

- shoulder, handle mounting

1шт.

8

P3841416

STOP

- door, rubber, upper and lower

2шт.

9

P3528794

WASHER

SPACER - stop, 6 mm thick

1шт.

10

P35002

WASHER

- flat, 8 mm

1шт.

11

P134598

NUT - hex, self-locking, 6 mm

1шт.

12

P34211

NUT

- hex, M8

4шт.

13

P4151

COAT HOOK

HOOK - coat

1шт.

14

P2928219

SUPPORT

BRACKET - mounting, coat hook

1шт.

15

P933825

SCREW

BOLT - hook to bracket, 6 mm x 18 mm

2шт.

16

P34607

WASHER

- lock, 6 mm

4шт.

17

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

2шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd - Bracket to cab

2шт.

19

REF

INSTRUCTION

SEAL - cab, left-hand rear, 31" long, cut from P1303159, use P3578 adhesive for mounting

1шт.

20

REF

INSTRUCTION

SEAL - cab, upper right-hand rear, 19-3/8" long, cut from P1303159, use P3578 adhesive for mounting

1шт.

21

REF

INSTRUCTION

SEAL - cab, lower right-hand rear, 9-1/2" long, cut from P1303159, use P3578 adhesive for mounting

1шт.

22

REF

INSTRUCTION

SEAL - cab, upper rear, 35-1/2" long, cut from P403145, use P3578 adhesive for mounting

1шт.

23

P29906

BALL KNOB

KNOB - handle

1шт.

24

P4048317

CONNECTING STRIP

COVER - door sill

1шт.

25

P35413

RIVET

POP RIVET - door sill cover

6шт.

26

P2537454

PLASTIC PLUG

PLUG - plastic, cab post, outer

2шт.

27

P2537452

PLASTIC PLUG

PLUG - plastic, cab post, inner

2шт.

28

P852054

CATCH PLATE

STRIKER - door latch

1шт.

29

P32412

SCREW

- striker to cab, use P3559 adhesive to prevent loosening

2шт.

30

P34108

NUT

- hex, M5

2шт.

31

P4328718

WASHER

- stop, 3 mm thick

2шт.

32

P4241455

STOP

- windshield, rubber

2шт.

33

NSS

NOT SOLD SEPARAT

CAB - excavator

1шт.

34

P4247944

HANDLE

- cab access

1шт.

35

P3528799

WASHER

- flat, 4 mm thick

6шт.

The 125B did not come equipped with any mirrors as they were not a required feature for Europe. The dealer or customer are on their own to come up with mirrors that will meet the specified regulations for the area in which this machine will be working.

1шт.
