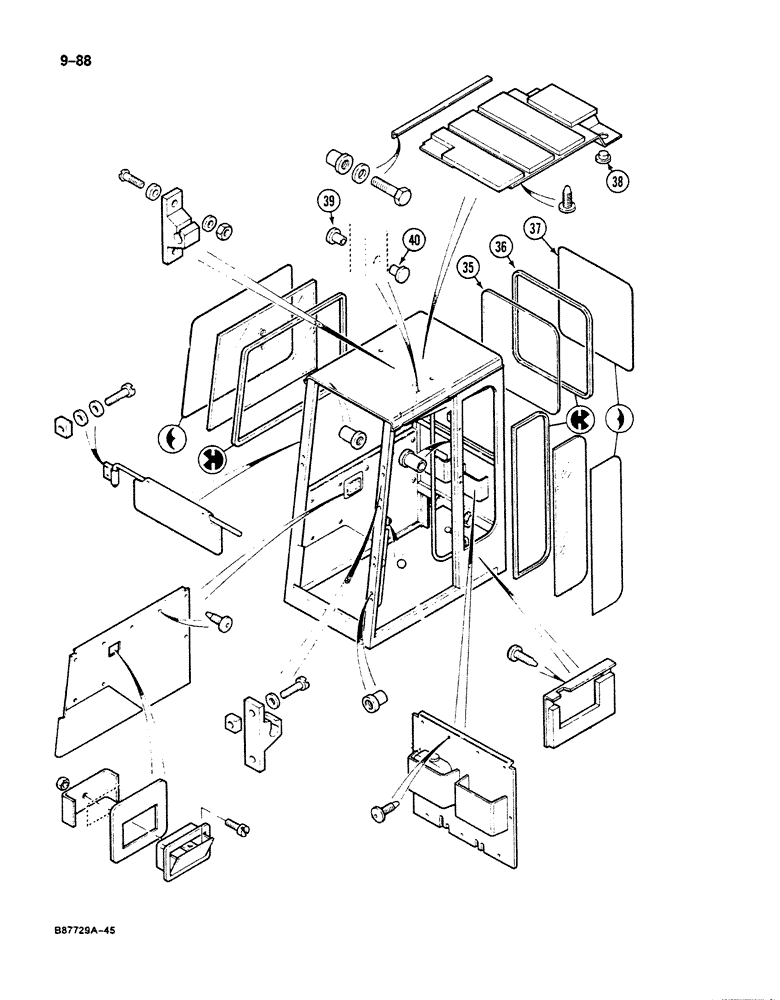

Запчасти Case 125B (9-088) - CAB, CAB GLASS AND INSULATION, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21806 (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figure 9-86, Includes: Ref. 35 - 40

1шт.

35

P1347091

GLASS

- window, cab rear, Serial Range: -21801

1шт.

35

P2047006

GLASS

- window, cab rear, Start Serial: 21801

1шт.

36

P8046010

SEAL

RETAINER - rubber, window to cab, Serial Range: -21801

1шт.

36

P8846016

SEAL

RETAINER - rubber. window to cab, Start Serial: 21801

1шт.

37

REF

INSTRUCTION

SEAL - window glass, 118" (2997 mm) long, cut from P346008, Serial Range: -21801

1шт.

37

REF

INSTRUCTION

SEAL - window glass, 118-7/64" (3000 mm) long, cut from P1303170, Start Serial: 21801

1шт.

38

P3037468

PLASTIC PLUG

PLUG - plastic

2шт.

39

P2537454

PLASTIC PLUG

PLUG - plastic, cab post, outer, if used

1шт.

40

P2537452

PLASTIC PLUG

PLUG - plastic, cab post, inner, if used

1шт.
