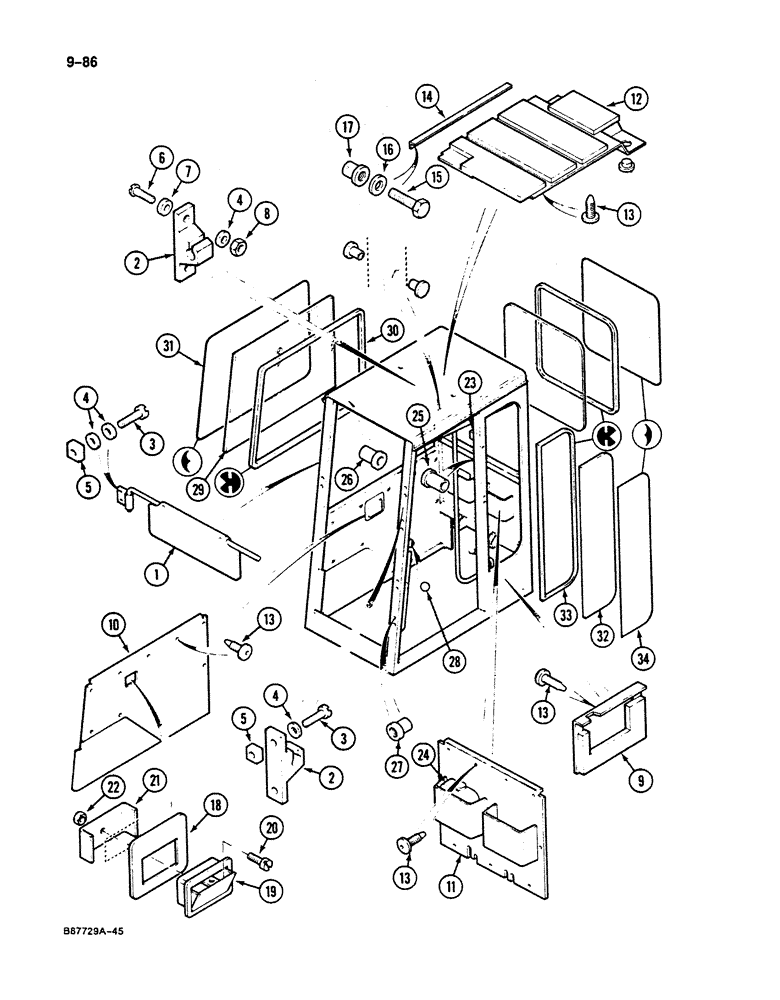

Запчасти Case 125B (9-086) - CAB, CAB GLASS AND INSULATION, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21806 (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figures 9-82 and 9-84, Includes: Ref. 1 - 34

1шт.

1

P2843294

VISOR, SUN

VISOR - operator, if used

1шт.

2

P3036940

HOOK

LATCH - visor, if used

2шт.

3

P32531

SCREW

- latch and visor to cab, if used

4шт.

4

P4328717

WASHER

SPACER - latch and visor screw, if used

8шт.

5

P234586

NUT

- clip type, latch and visor screw, if used

4шт.

6

P2033030

SCREW

- side latch to cab, if used

2шт.

7

P1245226

WASHER

SPACER - side latch screw, if used

2шт.

8

P34107

NUT - side latch screw, if used

2шт.

9

P2741424

LARGE PLATE

INSULATION AND COVER - cab at latch handle

1шт.

10

P3441444

LARGE PLATE

INSULATION - cab, right-hand side

1шт.

11

P2471423

INSULATION - cab, rear

1шт.

12

P3441496

LARGE PLATE

INSULATION - cab, top

1шт.

13

P2036971

BUTTON

RETAINER - insulation

33шт.

14

P1831643

ANGLE BAR

STRIP - retainer, cab insulation

2шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

Retainer strip Hex, M6 x 20, 8.8

6шт.

16

P3528799

WASHER

SPACER - retainer bolt

6шт.

17

P834513

NUT

RETAINER -, Serial Range: strip-cab

6шт.

18

P4423439

LARGE PLATE

PLATE - support, ash tray

1шт.

19

P2343284

ASH TRAY

TRAY - ash, cab

1шт.

20

P32506

SCREW

BOLT - ash tray mounting

1шт.

21

P6022751

SUPPORT

PLATE - retainer

1шт.

22

86508812

NUT,M3, Cl 8

1шт.

23

REF

INSTRUCTION

LAMP ASSEMBLY - cab, parts list Figures 4-34 and 4-36

1шт.

24

REF

INSTRUCTION

PUMP AND RESERVOIR - windshield washer, see Figures 4-34 and 4-36 for mounting parts

1шт.

25

P35444

RIVET

SLEEVE - bolt, cab interior lamp mounting

2шт.

26

P234587

NUT

SLEEVE - bolt

4шт.

27

P834513

NUT

RETAINER - bolt, used as plug in this application

24шт.

28

P29906

BALL KNOB

KNOB - handle

1шт.

29

P1347095

GLASS

- window, cab side, right-hand, see Figure 9-98 for sliding window assembly, if used

1шт.

30

P7146016

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

31

REF

INSTRUCTION

SEAL - window glass, 166" (4216 mm) long, cut from P346008

1шт.

32

P1347048

GLASS

- window, cab side, left-hand

1шт.

33

P7146074

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

34

REF

INSTRUCTION

SEAL - window glass, 122" (3099 mm) long, cut from P346008

1шт.

The 125B did not come equipped with any mirrors as they were not a required feature for Europe. The dealer or customer are on their own to come up with mirrors that will meet the specified regulations for the area in which this machine will be working.
