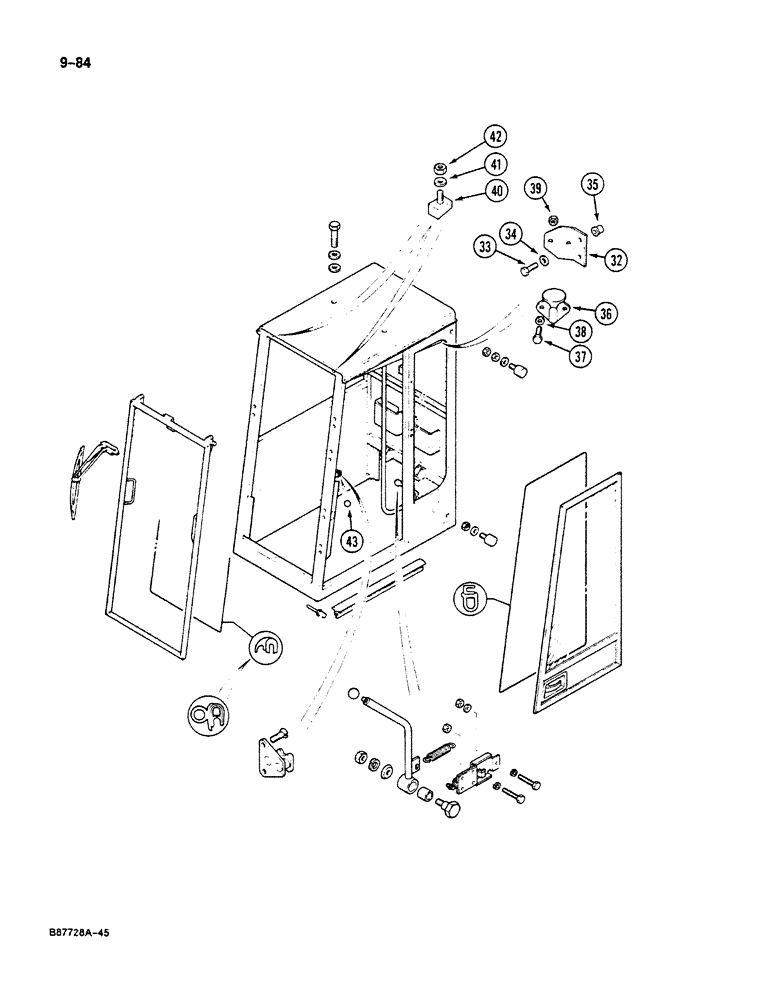

Запчасти Case 125B (9-084) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 74251 THORUGH 74963, 21801 THROUGH 21806 (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from Figure 9-82, Includes: Ref. 31 - 43

1шт.

31

P38002

COIL SPRING

SPRING - handle return

1шт.

32

P2928219

SUPPORT

BRACKET - mounting, coat hook

1шт.

33

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 25 mm, plated

2шт.

34

P34607

WASHER

- lock

2шт.

35

P834513

NUT

RETAINER -, Serial Range: bracket-cab

2шт.

36

P4151

COAT HOOK

HOOK - coat

1шт.

37

P933825

SCREW

BOLT -, Serial Range: hook-bracket

2шт.

38

P34607

WASHER

- lock

2шт.

39

P234513

SAFETY NUT

NUT -, Serial Range: hook-bracket

2шт.

40

P4241455

STOP

- rubber, cab window, Start Serial: 21801

2шт.

41

P4328718

WASHER

SPACER - screw, 3 mm thick

2шт.

42

P34108

NUT

- hex, 5 mm

2шт.

43

P29906

BALL KNOB

KNOB - handle

1шт.
