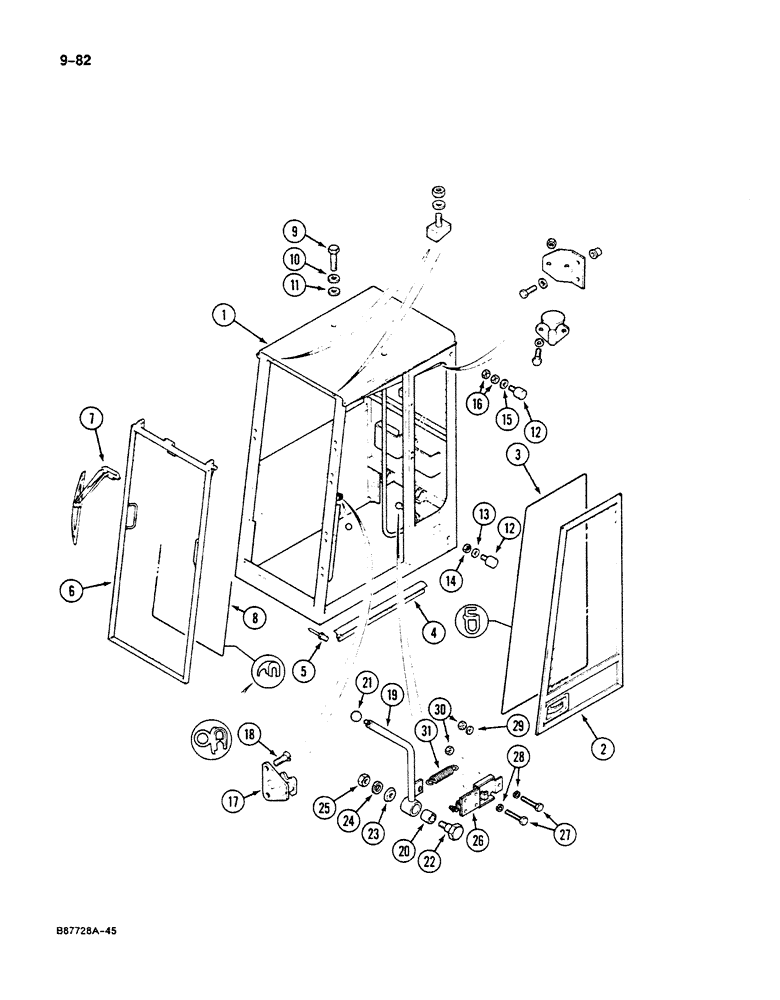

Запчасти Case 125B (9-082) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21806 (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - excavator

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - cab, parts list Figure 9-102 or 9-104

1шт.

3

REF

INSTRUCTION

SEAL - door to cab, parts list Figure 9-102 or 9-104

1шт.

4

P4048317

CONNECTING STRIP

COVER - door sill

1шт.

5

P35413

RIVET

- door sill cover

6шт.

6

P1347086

WINDSHIELD

ASSEMBLY - cab, parts list Figure 9-108

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER ASSEMBLY - windshield, parts list Figures 4-34 and 4-36

1шт.

8

REF

INSTRUCTION

SEAL - windshield to cab, 52" (1321 mm) long, cut from P303111, Serial Range: -74963

1шт.

8

REF

INSTRUCTION

SEAL - windshield to cab, 71" (1800 mm) long, cut from P1303155, Serial Range: 21801-21806

1шт.

9

P33869

BOLT,Hex, M14 x 30

At cab top Hex, M14 x 30

2шт.

10

P35044

WASHER

- lock

2шт.

11

P945237

WASHER

- flat

2шт.

12

P3841416

STOP

- door, rubber

2шт.

13

P3528794

WASHER

- flat

1шт.

14

P134596

SAFETY NUT

NUT - hex

1шт.

15

P3502

WASHER - flat

1шт.

16

P34211

NUT

- hex

2шт.

17

P852054

CATCH PLATE

STRIKER - door latch

1шт.

18

P32412

SCREW

-, Serial Range: striker-cab

2шт.

P4842763

CONTROL LEVER

HANDLE ASSEMBLY - door latch

1шт.

19

NSS

NOT SOLD SEPARAT

HANDLE - door latch

1шт.

20

P28780

SELF LUB RING

BUSHING - door handle

1шт.

21

P29938

BALL KNOB

KNOB - handle

1шт.

22

P1827953

PIN

- shoulder, handle mounting

1шт.

23

P34906

RUBBER WASHER

WASHER - spring type

1шт.

24

P34614

WASHER

- lock

1шт.

25

P134549

SAFETY NUT

NUT - hex

1шт.

26

P852086

LOCK ASSY

LATCH - door open

1шт.

27

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 16 mm, plated

5шт.

28

P34607

WASHER

- lock

5шт.

29

P3528799

WASHER

SPACER - latch bolt

1шт.

30

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

5шт.

The 125B did not come equipped with any mirrors as they were not a required feature for Europe. The dealer or customer are on their own to come up with mirrors that will meet the specified regulations for the area in which this machine will be working.

1шт.

REF CASE# 3584261

1шт.
