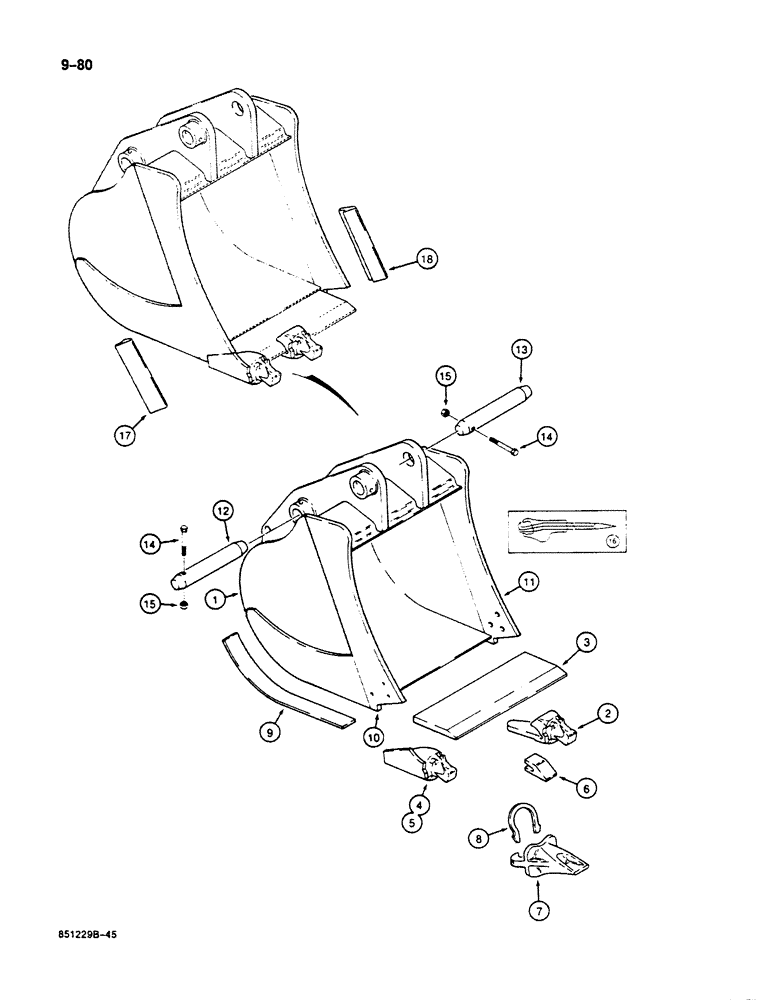

Запчасти Case 125B (9-080) - BACKHOE BUCKET, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

P8754617

BACKHOE BUCKET ASSEMBLY - excavator, 1-1/2 cu yd, 42" (1067 mm) wide, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BACKHOE BUCKET - EXCAVATOR

1шт.

P1504071

BLADE

CUTTING EDGE AND SHANK ASSEMBLY - bucket, Includes: Ref. 2 - 5

1шт.

2

P7646218

ADAPTER

SHANK - tooth, center

4шт.

3

NSS

NOT SOLD SEPARAT

CUTTING EDGE - bucket

1шт.

4

P1504081

SHANK, BUCKET TOOTH

SHANK - tooth, right-hand

1шт.

5

P1504082

SHANK, BUCKET TOOTH

SHANK - tooth, left-hand

1шт.

6

P2346194

PROTECTOR

TOOTH - cutting edge reinforcement

5шт.

7

P1504084

POINT

TOOTH - bucket

6шт.

8

P1236123

BUCKET TOOTH KEY

RETAINER - bucket tooth

6шт.

9

P5926625

STIFFENER

STRIP - wear bucket

5шт.

10

P4724252

STIFFENER

EDGE - cutting, left-hand

1шт.

11

P4724253

STIFFENER

EDGE - cutting, right-hand

1шт.

12

P1827649

PIN

- bucket mounting, lower

1шт.

13

P1827650

PIN

- bucket mounting, upper

1шт.

14

P533889

SCREW

BOLT - pin mounting

2шт.

15

829-1412

NUT,M12, Cl 10.9

Pin mounting bolt M12, Cl 10

2шт.

16

P3144441

TOOL

- removal, tooth retainer

1шт.

17

P2346193

PLATE

CUTTER - bucket, left-hand side, optional

1шт.

18

P2346193

PLATE

CUTTER - bucket, right-hand side, optional

1шт.

BOLT ON SIDE CUTTERS FOR REF 10 BUCKET: 1 EACH OF P1304030 AND P1304031 CUTTERS. HARDWARE WOULD BE 6 EA P34171 NUT, P34717 RING, P35008 WASHER AND P133834 BOLT.

1шт.

shims for pins, use p745342

1шт.
