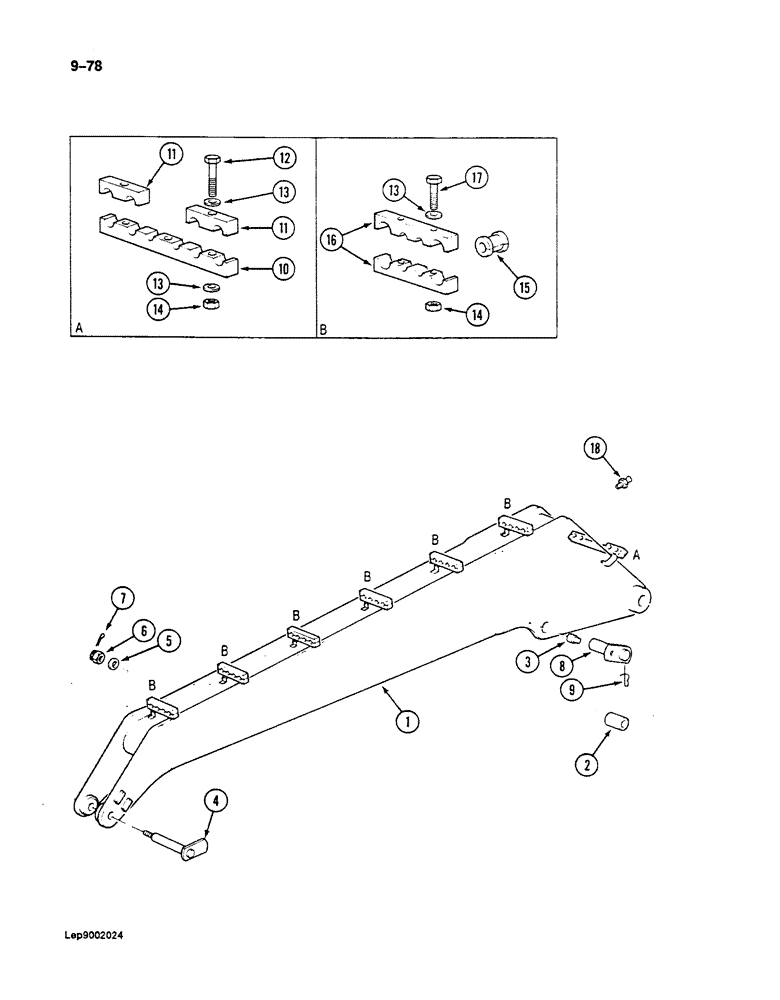

Запчасти Case 125B (9-078) - REHANDLING ARM, LINKS AND MOUNTING PINS, IF USED (09) - CHASSIS

1

P1854635

ARM - rehandling arm, Includes: Ref. 2 and 3

1шт.

2

P1528657

BUSHING

- arm pivot, at, Serial Range: arm-boom

2шт.

3

P50053

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-arm

1шт.

4

P2430990

LARGE PIN

PIN - pivot, clamshell rod end mounting

1шт.

5

P34625

WASHER

- pin

1шт.

6

P34319

SLOTTED NUT

NUT - hex, 42 mm

1шт.

7

P35558

SPLIT PIN

HAIR PIN - split, lock pin

1шт.

8

P2430960

HEADED PIN

PIN - pivot, Serial Range: arm-boom

1шт.

9

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - lock pin

1шт.

10

P4620340

CLAMP - tube

1шт.

11

P120359

SHIN

CLAMP - tube

2шт.

12

P32678

SCREW

BOLT - hex, 12 mm x 100 mm, full threaded

2шт.

13

P4328797

WASHER

SPACER - bolt, 8 mm thick

16шт.

14

337475

NUT,M12, Cl 10

- , Bracket bolt M12, Cl 10

14шт.

15

P741440

BUSHING

INSULATOR - tube

12шт.

16

P4620326

CLAMP - tube

12шт.

17

P33844

SCREW

BOLT - hex, 12 mm x 90 mm

12шт.

18

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.
