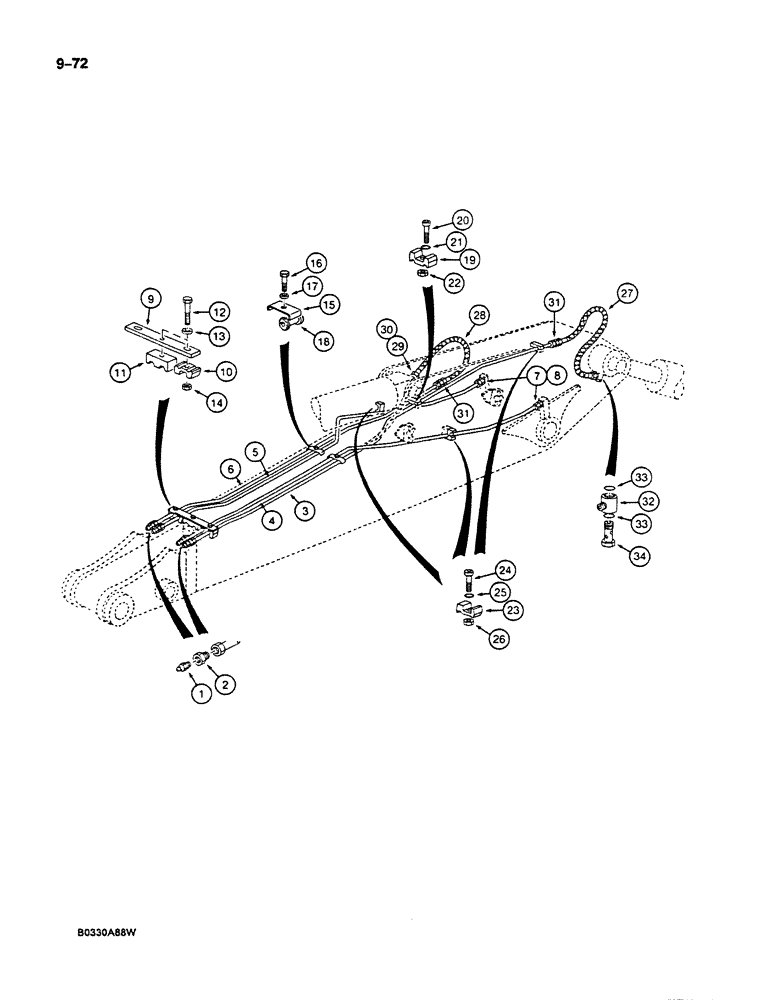

Запчасти Case 125B (9-072) - ARM LUBRICATION LINES, USED ON UNITS WITH 3.2 M ARM, *P.I.N. 74436 THROUGH 74844 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
J45801
LUBE NIPPLE,M8 x 1.25
- lubrication M8 x 1.25
4шт.
2
P3237596
END FITTING
ADAPTER - straight, grease, Serial Range: fitting-tube
4шт.
3
P6649133
PIPE
TUBE - lubrication, rod end of arm cylinder
1шт.
4
P6649138
PIPE
TUBE - lubrication, pin at boom, left-hand side
1шт.
5
P6649137
PIPE
TUBE - lubrication , pin at boom, right-hand side
1шт.
6
P6649132
PIPE
TUBE - lubrication, base end of tool cylinder
1шт.
7
P2337582
UNION
ADAPTER -, Serial Range: tube-arm
2шт.
8
P344419
WASHER, SEALING
SEAL - adapter
2шт.
9
P3523136
SUPPORT
BRACKET - tube clamp mounting
1шт.
10
P404292
SHIN
CLAMP - double tube
2шт.
11
P1023404
SHIN
SPACER - clamps
1шт.
12
P533837
SCREW
BOLT - hex head, 12 mm x 40 mm
3шт.
13
P3528793
WASHER
- flat, 12 mm
2шт.
14
829-1412
NUT,M12, Cl 10.9
2шт.
15
P2425939
HOOD
CLAMP - tube
2шт.
16
P33836
SCREW
BOLT - hex head, 12 mm x 20
2шт.
17
P3528793
WASHER
- flat, 12 mm
2шт.
18
P3841415
HALF-BUSHING
INSULATOR - tube
4шт.
19
P404292
SHIN
CLAMP - double tube
1шт.
20
P12329671
BOLT - hex head, 12 mm x 30 mm
1шт.
21
P34713
WASHER
- lock, 12 mm
1шт.
22
829-1412
NUT,M12, Cl 10.9
1шт.
23
P404291
SHIN
CLAMP - single tube
3шт.
24
P1232971
SCREW
BOLT - hex head, 12 mm x 30 mm
3шт.
25
P34713
WASHER
- lock, 12 mm
3шт.
26
829-1412
NUT,M12, Cl 10.9
3шт.
27
P3731994
HOSE
- 24-13/16" (630 mm) long, lubrication, rod end of arm cylinder
1шт.
28
P31939
HOSE
- 19-3/4" (500 mm) long, lubrication, base end of tool cylinder
1шт.
29
P3037546
UNION
ADAPTER - straight
1шт.
30
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
1шт.
31
P37553
UNION
ADAPTER - straight, Serial Range: tube-hose
2шт.
P637018
FITTING
ADAPTER ASSEMBLY - lubrication hose to arm cylinder, Includes: Ref. 32 - 34
1шт.
32
NSS
NOT SOLD SEPARAT
ADAPTER - lubrication hose to arm cylinder
1шт.
33
L33215
O-RING,0.737" ID x 0.943" OD x 0.103"
- adapter
2шт.
34
NSS
NOT SOLD SEPARAT
BOLT - adapter, special
1шт.
Выбрано товаров: 35
