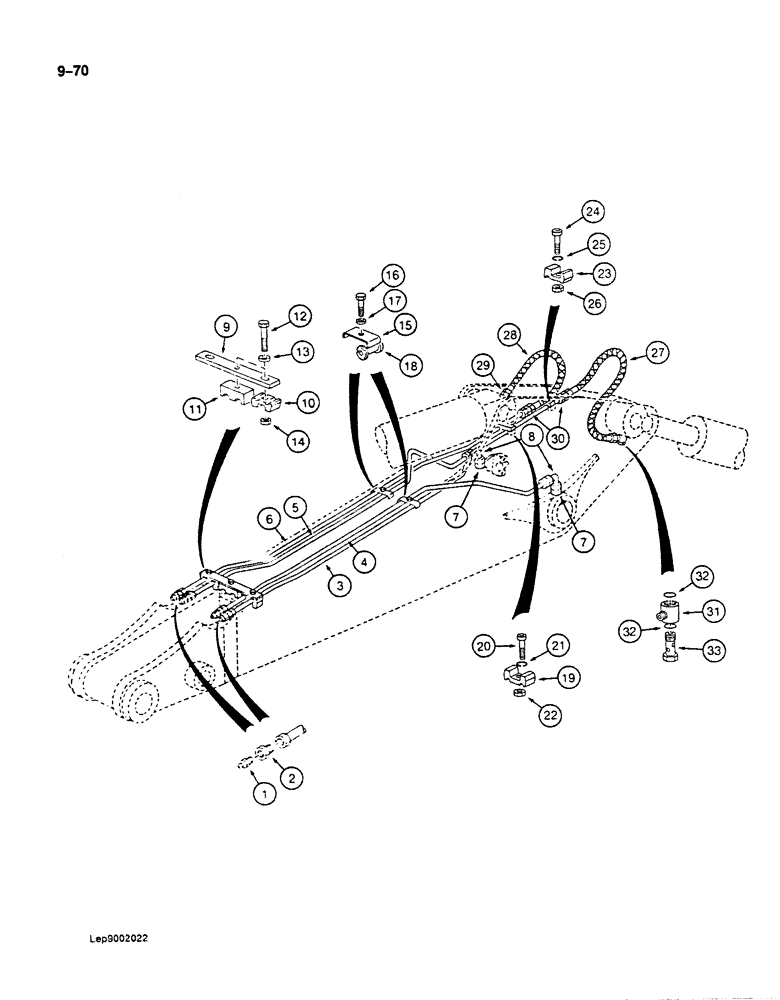

Запчасти Case 125B (9-070) - ARM LUBRICATION LINES, USED ON UNITS W/ 2.5 M ARM, P.I.N. 21807, 21808, 21810-21868, 26801 & AFT (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

- lubricaiton M8 x 1.25

4шт.

2

P4037594

END FITTING

ADAPTER - straight, grease, Serial Range: fitting-tube

4шт.

3

P6849163

PIPE

TUBE - lubrication, rod end of arm cylinder

1шт.

4

P7349162

PIPE

TUBE - lubrication, pin at boom, left-hand side

1шт.

5

P7349163

PIPE

TUBE - lubrication, pin at boom, right-hand side

1шт.

6

P6849165

PIPE

TUBE - lubrication, base end of tool cylinder

1шт.

7

P4037571

UNION

ADAPTER ASSEMBLY -, Serial Range: tube-arm

2шт.

P7046042

SEAL

- adapter

1шт.

8

P1737019

ANGLE

ELBOW - 90 degree, Serial Range: tube-arm

2шт.

9

P3523136

SUPPORT

BRACKET - tube clamp mounting

1шт.

10

P404292

SHIN

CLAMP - double tube

2шт.

11

P1023404

SHIN

SPACER - clamps

1шт.

12

P533837

SCREW

BOLT - hex head, 12 mm x 40 mm

3шт.

13

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

15

P2425939

HOOD

CLAMP - tube

2шт.

16

P33836

SCREW

BOLT - hex head, 12 mm x 20

2шт.

17

P3528793

WASHER

SPACER - bolt, 8 mm thick

2шт.

18

P3841415

HALF-BUSHING

INSULATOR - tube

4шт.

19

P404292

SHIN

CLAMP - double tube

1шт.

20

P1232971

SCREW

BOLT - hex socket head, 12 mm x 30 mm, class 10.9

1шт.

21

P34713

WASHER

- lock, 12 mm

1шт.

22

829-1412

NUT,M12, Cl 10.9

1шт.

23

P404291

SHIN

CLAMP - single tube

1шт.

24

P1232971

SCREW

BOLT - hex socket head, 12 mm x 30 mm, class 10.9

1шт.

25

P34713

WASHER

- lock, 12 mm

1шт.

26

829-1412

NUT,M12, Cl 10.9

1шт.

27

P6631965

HOSE

- 24-13/16 " (630 mm) long, lubrication, rod end of arm cylinder

1шт.

28

P6631940

HOSE

- 19-3/4" (500 mm) long, lubrication, base end of tool cylinder

1шт.

29

P4037573

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945295

SEAL

- adapter

1шт.

30

P3237535

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

P5137744

FITTING

ADAPTER ASSEMBLY - lubrication hose to arm cylinder, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

ADAPTER - lubrication hose to arm cylinder

1шт.

32

P30401

O-RING,2.5mm Thk x 18.5mm ID

- adapter

2шт.

33

NSS

NOT SOLD SEPARAT

BOLT - adapter, special

1шт.
