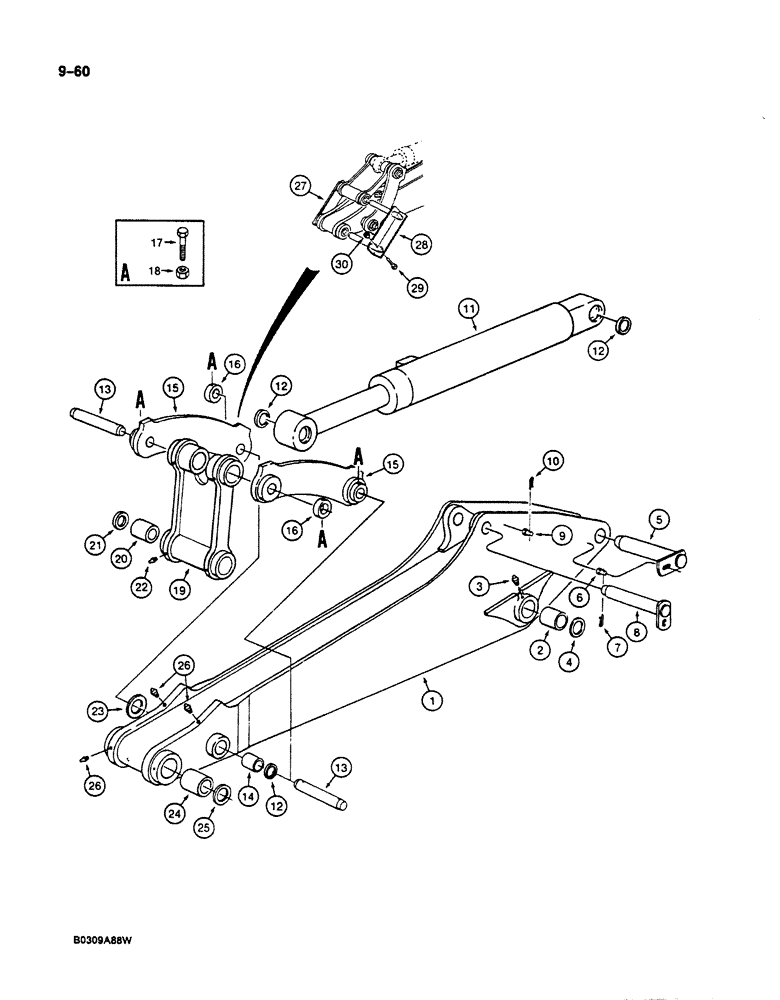

Запчасти Case 125B (9-060) - ARM, LINKS AND MOUNTING PINS, WITH 10 FOOT 6 INCH (3.2 M) (09) - CHASSIS

1

P5754686

DIPPER

ARM - 10 foot 6 inches (3.2 m) long

1шт.

Ref #1A - P1854626 Arm 3.2 m for N.A. units

1шт.

Ref #1 - (For bare boom, European units)

1шт.

2

P1528657

BUSHING

- arm pivot, at arm to boom, bronze, if used

2шт.

2

P5428704

BUSHING

- arm pivot, at arm to boom, steel, if used

2шт.

3

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

4

P745342

WASHER

SHIM - 0.08" (2 mm) thick, at, Serial Range: arm-boom

1шт.

5

P2430964

PIVOT PIN

PIN - pivot, arm cylinder rod end mounting

1шт.

6

P50053

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-arm

1шт.

7

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

8

P2530988

PIVOT PIN

PIN - pivot, tool cylinder closed end mounting

1шт.

9

P50055

SHAFT LOCK

PIN - lock, tool cylinder pivot pin, Serial Range: welded-arm

1шт.

10

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, for correct assembly and components see Figure 8-306 through 8-312

1шт.

12

P8046023

SEAL

- grease, at tool cylinder and link pins

6шт.

13

P1827649

PIN

- link and rod end of tool cylinder

2шт.

14

P1928635

BUSHING

- arm, bronze, at tool link pin, if used

2шт.

14

P5428702

BUSHING

- arm, steel, at tool link pin, if used

2шт.

15

P8754609

LINKAGE YOKE

LINK - cylinder, to tool hinge and arm

2шт.

16

P4628786

BUSHING

RETAINER - cylinder link pin

2шт.

17

P533889

SCREW

BOLT - pin retainer

4шт.

18

829-1412

NUT,M12, Cl 10.9

Retainer bolt M12, Cl 10

4шт.

P8754611

ROD, CONNECTING

HINGE ASSEMBLY - tool, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HINGE - tool

1шт.

20

P1528684

BUSHING

- tool hinge, bronze, if used

4шт.

20

P5428703

BUSHING

- tool hinge, steel, if used

4шт.

21

P8046023

SEAL

- grease, hinge bushing

8шт.

22

J45801

LUBE NIPPLE,M8 x 1.25

- straight M8 x 1.25

4шт.

23

P745341

WASHER

SHIM - 0.08" (2 mm) thick, at, Serial Range: link-arm

1шт.

24

P1528657

BUSHING

- arm, at tool, bronze, if used

2шт.

24

P5428704

BUSHING

- arm, at tool, steel, if used

2шт.

25

P8046024

SEAL

- grease, arm bushing

2шт.

26

J45801

LUBE NIPPLE,M8 x 1.25

- straight, bushing, at tool and cylinder link M8 x 1.25

5шт.

27

P5125687

ANGLE BAR

LINK - transport, right-hand, used when tool is removed

1шт.

28

P5125688

ANGLE BAR

LINK - transport, left-hand, used when tool is removed

1шт.

29

P133848

SCREW

BOLT - hex head, 12 mm x 140 mm

4шт.

30

P34596

LOCK NUT

NUT - hex, 12 mm

4шт.
