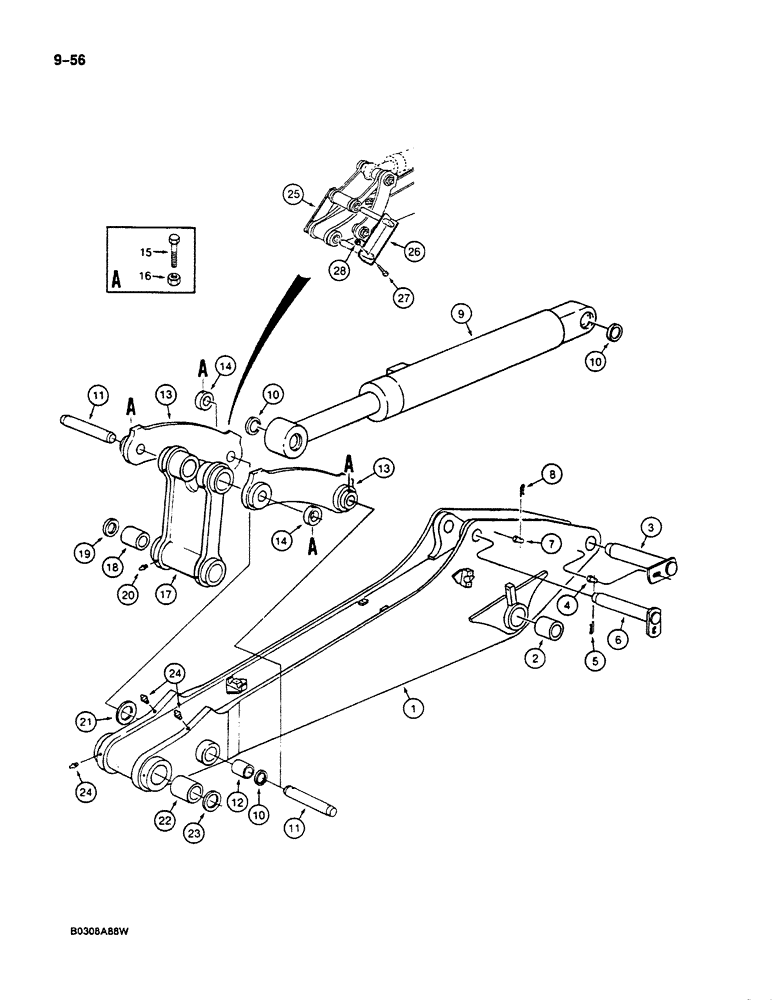

Запчасти Case 125B (9-056) - ARM, LINKS & MOUNTING PINS, WITH 8 3" (2.5 M) ARM, P.I.N. 74436-74963, 21801-21806, 21809 (09) - CHASSIS

1

P8754615

DIPPER

ARM - 8 foot 3 inches (2.5 m) long

1шт.

2

P1528657

BUSHING

- arm pivot, at arm to boom, bronze, if used

2шт.

2

P5428704

BUSHING

- arm pivot, at arm to boom, steel, if used

2шт.

3

P2430964

PIVOT PIN

PIN - pivot, arm cylinder rod end mounting

1шт.

4

P50053

SHAFT LOCK

PIN - lock, arm cylinder pivot pin, Serial Range: welded-arm

1шт.

5

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

6

P2530988

PIVOT PIN

PIN - pivot, tool cylinder base end mounting

1шт.

7

P50053

SHAFT LOCK

PIN - lock, tool cylinder pivot pin, Serial Range: welded-arm

1шт.

8

P36020

SPLIT PIN/SAFETY PIN

HAIR PIN - split, lock pin

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - tool, for correct assembly and components see Figures 8-306 through 8-312

1шт.

10

P8046023

SEAL

- grease, at tool cylinder and link pins

6шт.

11

P1827649

PIN

- link and rod end of tool cylinder

2шт.

12

P1928635

BUSHING

- arm, bronze, at tool link pin, if used

2шт.

12

P5428702

BUSHING

- arm, steel, at tool link pin, if used

2шт.

13

P8754609

LINKAGE YOKE

LINK - cylinder, to tool hinge and arm

2шт.

14

P4628786

BUSHING

RETAINER - cylinder link pin

2шт.

15

P533889

SCREW

BOLT - pin retainer

4шт.

16

829-1412

NUT,M12, Cl 10.9

Retainer bolt M12, Cl 10

4шт.

P8754611

ROD, CONNECTING

HINGE ASSEMBLY - tool, (Fabricated type), Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

HINGE - tool

1шт.

18

P1528684

BUSHING

- tool hinge, bronze, if used

4шт.

18

P5428703

BUSHING

- tool hinge, steel if used

4шт.

19

P8046023

SEAL

- grease, hinge bushing

6шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

- straight M8 x 1.25

4шт.

P1604032

HINGE ASSEMBLY - tool, (Casted type), Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

HINGE - tool

1шт.

18

P5428703

BUSHING

- tool hinge, steel

4шт.

19

P8046023

SEAL

- grease, hinge bushing

6шт.

20

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

4шт.

21

P745341

WASHER

SHIM - 0.08" (2 mm) thick, at, Serial Range: link-arm

1шт.

22

P1528657

BUSHING

- arm, at tool, bronze, if used

2шт.

22

P5428704

BUSHING

- arm, at tool, steel, if used

2шт.

23

P8046024

SEAL

- grease, arm bushing

2шт.

24

J45801

LUBE NIPPLE,M8 x 1.25

- straight, bushing, at tool and link M8 x 1.25

5шт.

25

P5125687

ANGLE BAR

LINK - transport, right-hand, used when tool is removed

1шт.

26

P5125688

ANGLE BAR

LINK - transport, left-hand, used when tool is removed

1шт.

27

P133848

SCREW

BOLT - hex head, 12 mm x 140 mm

4шт.

28

P34596

LOCK NUT

NUT - hex, 12 mm

4шт.
