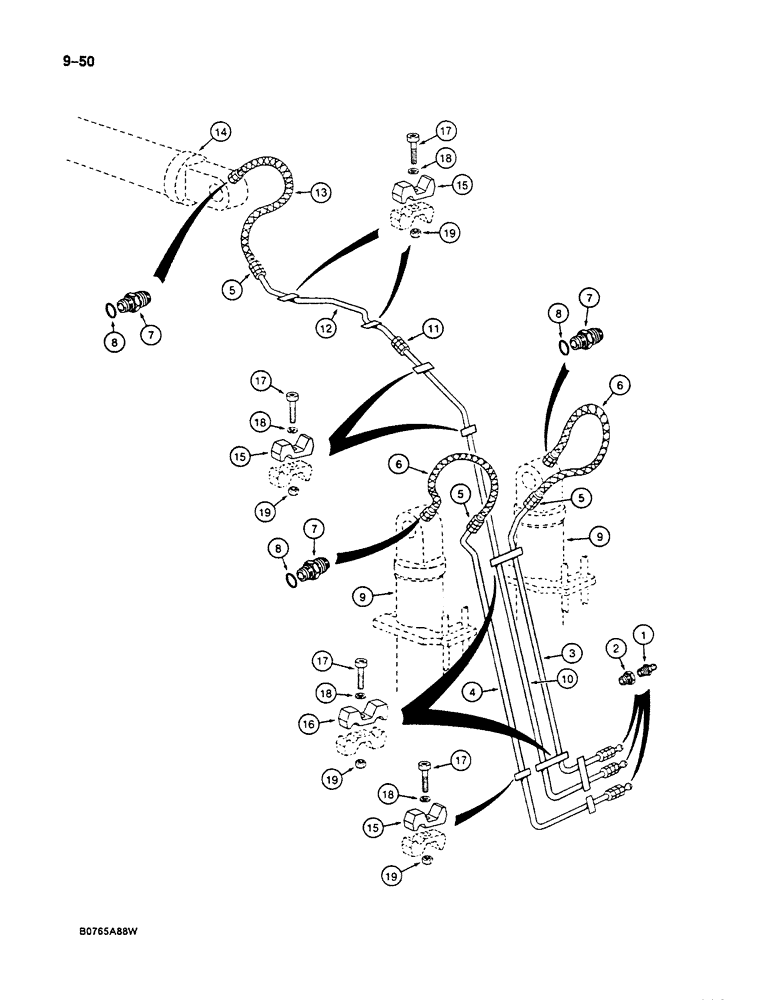

Запчасти Case 125B (9-050) - BOOM LUBRICATION LINES, P.I.N. 74845 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

3шт.

2

P4037594

END FITTING

ADAPTER - straight, grease, Serial Range: fitting-tube

3шт.

3

P6249079

PIPE

TUBE - lubrication, to right-hand boom cylinder

1шт.

4

P6249078

PIPE

TUBE - lubrication, to left-hand boom cylinder

1шт.

5

P3237535

UNION

ADAPTER - straight

3шт.

6

P6631940

HOSE

- 19-13/16" (500 mm) long, lubrication tube to base end of boom cylinder

2шт.

P4037573

UNION

ADAPTER ASSEMBLY - straight, hose to cylinder, Includes: Ref. 7 and 8

3шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - straight, hose to cylinder

1шт.

8

P945295

SEAL

- adapter

1шт.

9

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, for correct assembly and components see Figures 8-286 through 8-292

2шт.

10

P8347695

PIPE

TUBE - lubrication, to arm cylinder, lower section

1шт.

11

P3237535

UNION

ADAPTER - straight, lubrication tube

1шт.

12

P6249161

TUBE - lubrication, to arm cylinder, upper section

1шт.

13

P6631965

HOSE

- 24-13/16" (630 mm) long, lubrication tube to base end of arm cylinder

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, for correct assembly and components see Figures 8-294 through 8-302

1шт.

15

P404291

SHIN

CLAMP - tube, for single tube

7шт.

16

P404292

SHIN

CLAMP - tube, for double tubes

3шт.

17

P1232971

SCREW

BOLT - hex socket head, 12 mm x 30 mm, class 10.9

10шт.

18

P34713

WASHER

- lock, 12 mm

10шт.

19

829-1412

NUT,M12, Cl 10.9

10шт.
