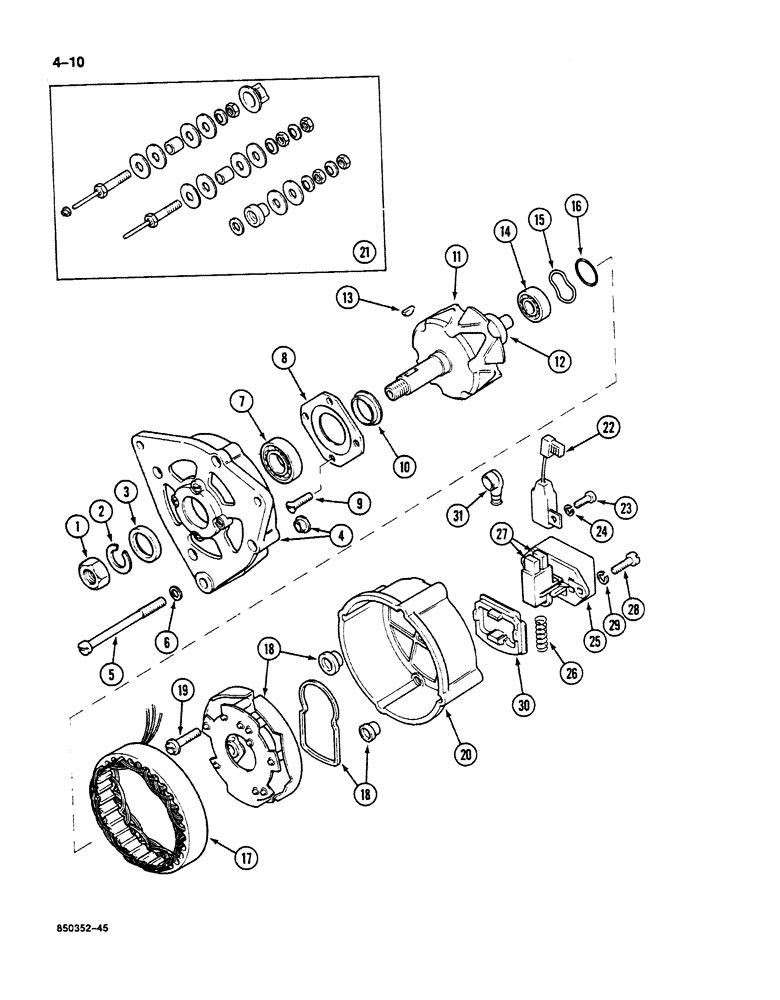

Запчасти Case 125B (4-10) - ALTERNATOR, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (04) - ELECTRICAL SYSTEMS

P641553

ALTERNATOR

ASSEMBLY - 28 volt, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - fan and pulley retaining

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

3

NSS

NOT SOLD SEPARAT

COLLAR - rotor shaft

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

4

P7230131

FLANGE

COVER - drive end shield

1шт.

5

P2033033

SCREW

BOLT - through, Serial Range: cover-housing

4шт.

6

P35055

WASHER

- flat

4шт.

7

P2039816

BEARING

- ball, drive end

1шт.

8

P1340489

CAP - rotor

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - cap

4шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rotor shaft

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

P641561

ROTOR

ASSEMBLY - alternator, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

12

P6146080

BUSHING

- Rotor

1шт.

13

NSS

NOT SOLD SEPARAT

WOODRUFF KEY - rotor shaft

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

14

P2039817

BEARING

- ball, inner

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - wave, bearing

1шт.

Part of Rotor Assembly Hardware Kit, P/N P641533

1шт.

16

P1630466

O-RING

- bearing

1шт.

17

P641563

STATOR

- alternator

1шт.

18

P2140611

RECTIFIER

DIODE - alternator, diode holder

1шт.

19

P2033032

SCREW

BOLT - diode, Serial Range: holder-housing

3шт.

20

P7230132

FLANGE

HOUSING - alternator, rear cover

1шт.

21

P4746267

SET OF PARTS

SET OF CONNECTORS - at rear of housing

1шт.

22

P2042417

BRUSH, COMMUTATOR

CAPACITOR - alternator

1шт.

23

P2033035

SCREW

BOLT - capacitor mounting

1шт.

24

P34740

WASHER

- lock

1шт.

P641565

GOVERNOR

REGULATOR ASSEMBLY - voltage, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

REGULATOR - voltage

1шт.

26

P1538138

SPRING

- regulator

1шт.

27

P1241206

SPARE PART SET

BRUSH SET - alternator

1шт.

28

P2033034

SCREW

BOLT - regulator mounting

2шт.

29

P34739

WASHER

- lock

2шт.

P641533

KIT

- rotor assembly hardware, includes Refs. 1, 2, 3, 9, 10, 13 and 15

1шт.
