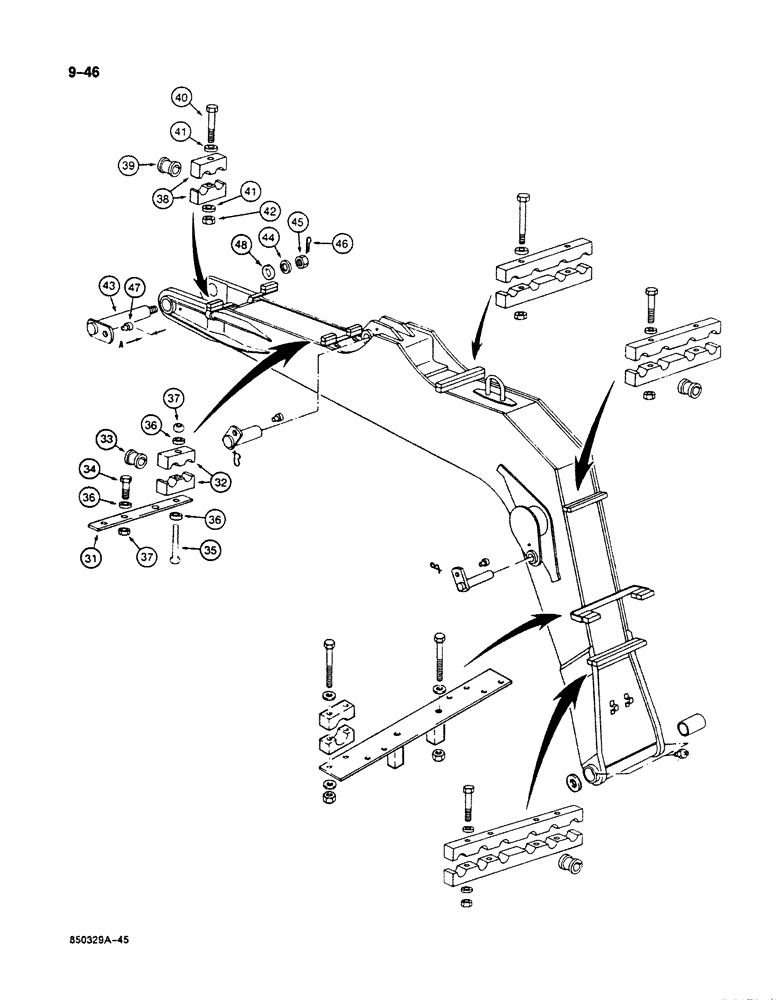

Запчасти Case 125B (9-046) - BOOM AND RELATED PARTS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

31

P1423160

SUPPORT

PLATE - mounting, tube clamp

1шт.

32

P1820380

SHIN

CLAMP - tube

4шт.

33

P741437

BUSHING

INSULATOR - tube

4шт.

34

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

Tube clamp mounting plate Hex, M12 x 45, 8.8

2шт.

35

P133887

SCREW

BOLT - tube clamp

2шт.

36

P4328797

WASHER

SPACER - bolt

6шт.

37

829-1412

NUT,M12, Cl 10.9

Bolt M12, Cl 10

4шт.

38

P1820380

SHIN

CLAMP - tube

4шт.

39

P741437

BUSHING

INSULATOR - tube

4шт.

40

P133887

SCREW

BOLT - tube clamp

2шт.

41

P4328797

WASHER

SPACER - bolt

4шт.

42

829-1412

NUT,M12, Cl 10.9

Bolt M12, Cl 10

2шт.

43

P2930976

HANDLED SHAFT

PIN - pivot, Serial Range: arm-boom

1шт.

44

P545577

WASHER

- pivot pin

1шт.

45

P34336

NUT

- pivot pin

1шт.

46

P35564

SPLIT PIN/SAFETY PIN

COTTER PIN - pivot pin

1шт.

47

P50059

SHAFT LOCK

PIN - lock, arm to boom pivot pin, "A" dimension is 58 mm, welded to boom, if used

1шт.

47

P1927850

SHAFT LOCK

PIN - lock, arm to boom pivot pin, "A" dimension is 45 mm, welded to boom, if used

1шт.

48

P1145578

WASHER

- pivot pin

1шт.
