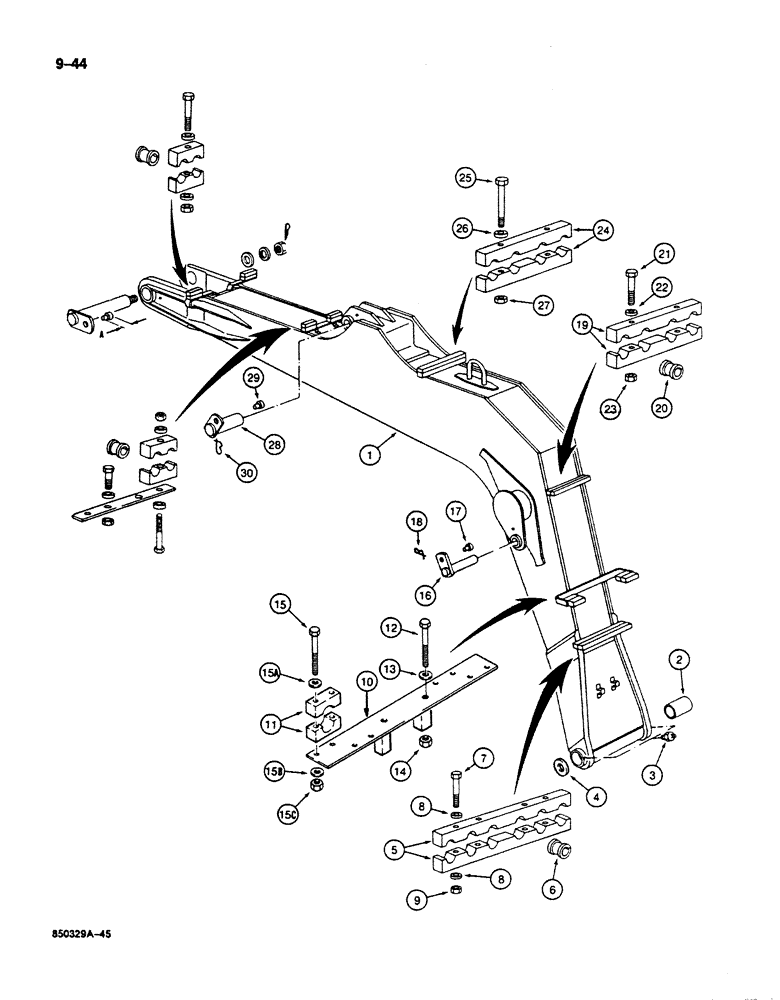

Запчасти Case 125B (9-044) - BOOM AND RELATED PARTS, P.I.N. 74251 THROUGH 74963, 21801 (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
P5754660
BOOM
- excavator
1шт.
2
P1528633
BUSHING
- boom pivot, at boom to turntable, bronze, if used
2шт.
2
P4628761
BUSHING
- boom pivot, at boom to turntable, steel, if used
2шт.
3
J45801
LUBE NIPPLE,M8 x 1.25
- lubrication M8 x 1.25
2шт.
4
P1945387
WASHER
SHIM - 0.08" (2 mm) thick, at, Serial Range: boom-turntable
1шт.
5
P1820384
SHIN
CLAMP - tube
2шт.
6
P741437
BUSHING
INSULATOR - tube
6шт.
7
P133887
SCREW
BOLT - tube clamp
4шт.
8
P4328797
WASHER
SPACER - bolt
8шт.
9
829-1412
NUT,M12, Cl 10.9
Bolt M12, Cl 10
4шт.
10
P6328240
LARGE PLATE
BRACKET - tube clamp mounting
1шт.
11
P520318
SHIN
CLAMP - tube
8шт.
12
P133887
SCREW
BOLT - tube clamp mounting bracket
2шт.
13
P3528793
WASHER
SPACER - bracket bolt
2шт.
15
P833835
SCREW
BOLT -, Serial Range: clamp-bracket
8шт.
15a
P4328796
WASHER
SPACER - clamp bolt, upper
8шт.
15b
P3528795
WASHER
SPACER - clamp bolt, lower
8шт.
16
P2430957
HEADED PIN
PIN - pivot, boom cylinder base end of cylinder
2шт.
17
P50059
SHAFT LOCK
PIN - lock, boom cylinder pivot pin, Serial Range: welded-boom
2шт.
18
P36020
SPLIT PIN/SAFETY PIN
HAIR PIN - split, lock pin
2шт.
19
P1820383
SHIN
CLAMP - tube
2шт.
20
P741437
BUSHING
INSULATOR - tube
4шт.
21
P133887
SCREW
BOLT - tube clamp
2шт.
22
P4328797
WASHER
SPACER - bolt
2шт.
23
829-1412
NUT,M12, Cl 10.9
Bolt M12, Cl 10
2шт.
24
P1820382
SHIN
CLAMP - tube
2шт.
25
P133887
SCREW
BOLT - tube clamp
2шт.
26
P4328797
WASHER
SPACER - bolt
2шт.
27
829-1412
NUT,M12, Cl 10.9
Bolt M12, Cl 10
2шт.
28
P2430963
PIVOT PIN
PIN - pivot, arm cylinder closed end mounting
1шт.
29
P50059
SHAFT LOCK
PIN - lock, arm cylinder pivot pin, Serial Range: welded-boom
1шт.
30
P36020
SPLIT PIN/SAFETY PIN
HAIR PIN - split, lock pin
1шт.
Выбрано товаров: 34
