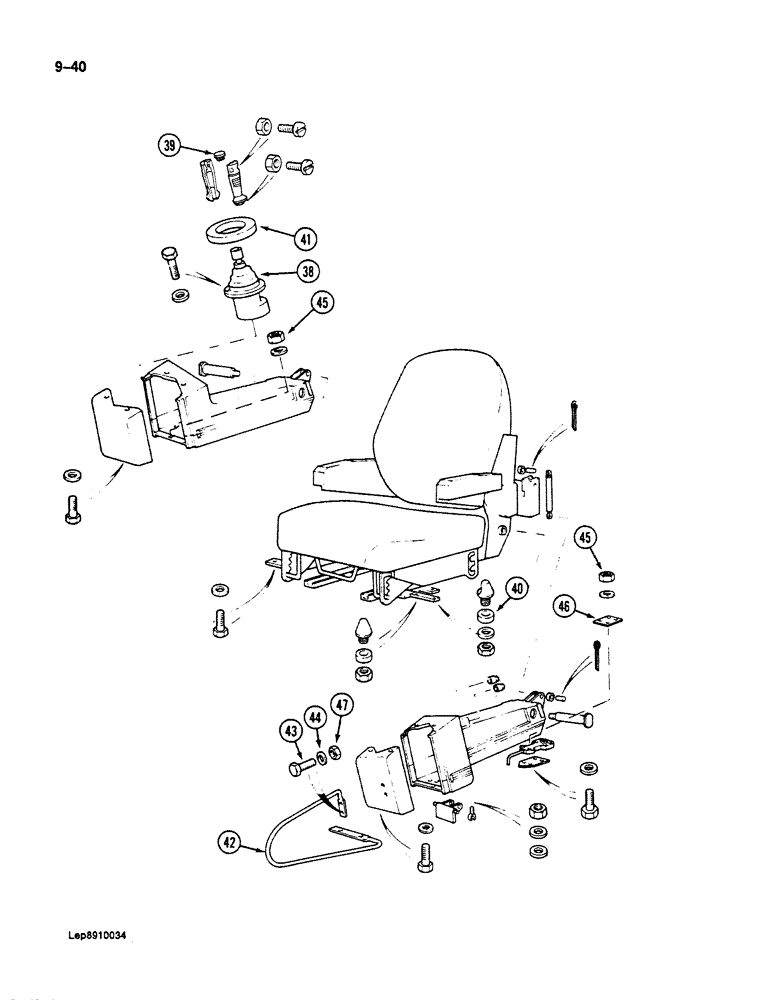

Запчасти Case 125B (9-040) - HAND CONTROL VALVE CONSOLES, P.I.N. 74871 THROUGH 74963 (09) - CHASSIS

38

REF

INSTRUCTION

VALVE - control, hand, part list Figures 8-232 and 8-234

2шт.

39

P2537472

PLASTIC PLUG

PLUG - control handle

2шт.

40

P34614

WASHER

- flat, 14 mm

1шт.

41

P7230184

PROTECTOR

RING - rubber, hand control valve

2шт.

42

P2130670

BAR

HANDLE - lift, left-hand console, if used

1шт.

43

120100

BOLT,M6 x 20mm, Cl 8.8

If used Hex, M6 x 20, 8.8

2шт.

44

P3528799

WASHER

SPACER - 4 mm thick, bolt, if used

2шт.

45

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm

6шт.

46

P2023290

LARGE PLATE

PLATE - mounting, upper

1шт.

47

P234513

SAFETY NUT

NUT - hex, self-locking, 6 mm, if used

2шт.
