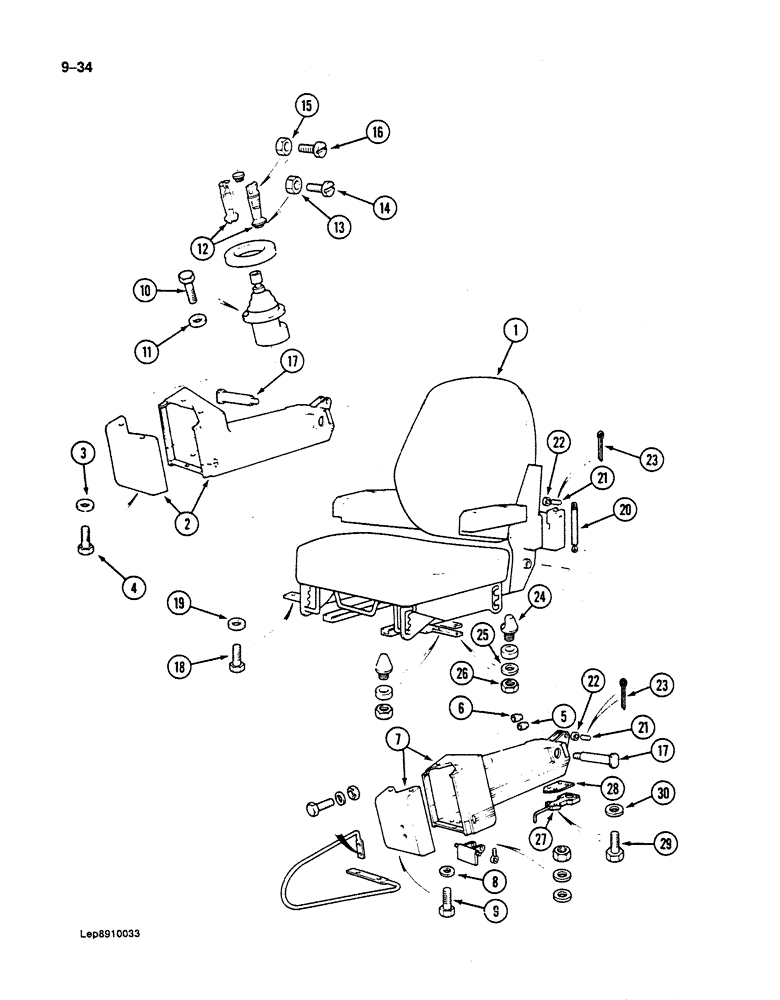

Запчасти Case 125B (9-034) - HAND CONTROL VALVE CONSOLES, P.I.N. 74251 THROUGH 74870 (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator's, parts list Figure 9-30

1шт.

P4842738

CASE

HOUSING ASSEMBLY - console, right-hand, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - right-hand console

1шт.

3

P35001

WASHER

- flat, 6 mm

1шт.

4

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

5

P1737419

PLUG

- plastic, left-hand console

2шт.

6

P1737425

PLASTIC PLUG

PLUG - plastic, left hand console

2шт.

P4842739

CASE

HOUSING ASSEMBLY - console, left-hand, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - left-hand console

1шт.

8

P35001

WASHER

- flat, 6 mm

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

10

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm x 25 mm

8шт.

11

P35001

WASHER

- flat, 6 mm

8шт.

12

P152069

HANDLE

- half

4шт.

13

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm - 1, plated

4шт.

14

P32549

SCREW

- handle, lower, 6 mm x 16 mm

4шт.

15

P34107

NUT - hex, 4 mm

4шт.

16

P32530

SCREW

- handle, upper, 4 mm x 10 mm

4шт.

17

P1027977

PIN

- pivot

2шт.

18

814-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 25 mm, plated

2шт.

19

P3528799

WASHER

SPACER - 4 mm thick, bolt

2шт.

20

P1436931

CYLINDER ASSY.

SHOCK ABSORBER - left-hand console

1шт.

21

P827645

PIN

- shock absorber

2шт.

22

P35001

WASHER

- flat, 6 mm

4шт.

23

P35510

SPLIT PIN

PIN - cotter, 2 mm x 20 mm

4шт.

24

P152075

CONE

RETAINER - latch

1шт.

25

P34611

WASHER

- flat, 10 mm, retainer mounting

1шт.

26

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

1шт.

27

P852065

LOCK ASSY

LATCH - left-hand console

1шт.

28

P323672

HOOD

PLATE - mounting

1шт.

29

P733035

SCREW

BOLT - hex head, 6 mm x 35 mm

4шт.

30

P3528799

WASHER

SPACER - 4 mm thick, bolt

4шт.
