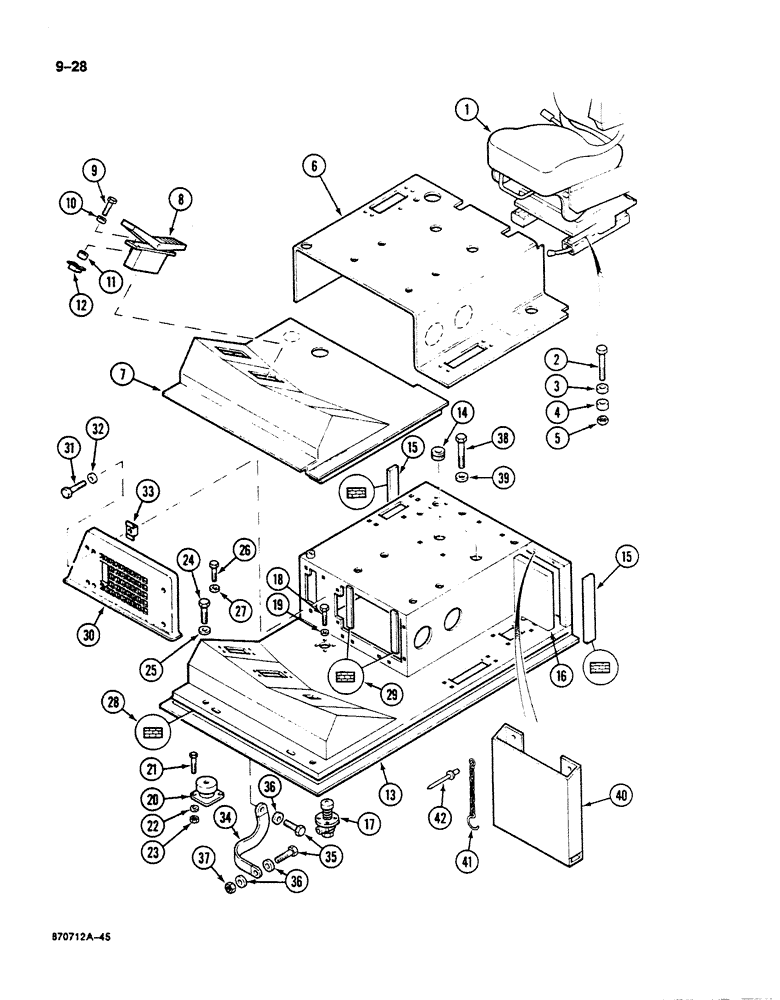

Запчасти Case 125B (9-028) - SEAT MOUNTING, AND FLOOR PLATE, P.I.N. 74631 THROUGH 74963 (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - parts list Figure 9-30 for 9-32

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Seat mounting Hex, M12 x 60, 8.8

4шт.

3

P3528793

WASHER

SPACER - 8 mm, bolt, upper

4шт.

4

P4328732

WASHER

SPACER - 28 mm, bolt, lower

4шт.

5

P1334578

NUT

- mounting bolt

4шт.

6

P3141485

MAT

- under seat

1шт.

7

P3441448

MAT

- floor

1шт.

8

REF

INSTRUCTION

VALVE - control, foot, parts list Figures 8-238 or 8-240

2-3шт.

9

P33822

SCREW

BOLT - hex head, 8 mm x 50 mm, control valve mounting

12шт.

10

P3528794

WASHER

SPACER - 6 mm, bolt, upper

12шт.

11

P4328730

WASHER

SPACER - 20 mm, bolt, lower

12шт.

12

P1334571

NUT

- valve mounting bolts

12шт.

13

P7743805

FLOOR

PLATE - floor, operator compartment

1шт.

14

P41478

GROMMET

GUIDE - in floor plate

2шт.

15

REF

INSTRUCTION

SEAL - 0.98 ft. (0.3 m) long, cut from P3127

2шт.

16

P3141452

LARGE PLATE

PAD - insulation, rear

1шт.

17

P1443532

PUMP

- foot

1шт.

18

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- hex head, 6 mm - 1 x 16 mm, plated, Foot pump mounting

4шт.

19

P3528799

WASHER

SPACER - 4 mm, bolt

4шт.

20

P3841491

SUPPORT

- floor plate

4шт.

21

P933818

SCREW

BOLT - hex head, 10 mm x 40 mm, support mounting

8шт.

22

P3528795

WASHER

SPACER - 7 mm thick, bolt

8шт.

23

P34598

SAFETY NUT

NUT - hex, 10 mm, mounting bolt

8шт.

24

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Center mount Hex, M12 x 60, 8.8

4шт.

25

P3528797

WASHER

SPACER - 30 mm, center mount bolt

4шт.

26

P933851

SCREW

BOLT - hex head, 14 mm x 80 mm, floor plate

2шт.

27

P629208

BUSHING

SPACER - bolt

2шт.

28

REF

INSTRUCTION

SEAL - 14-3/4 ft (4.5 m) long, cut from P3127

1шт.

29

REF

INSTRUCTION

SEAL - 7-7/8" (20 cm) long, cut from P3128

2шт.

30

P2340445

SIEVE

GRILLE - heater, under seat

1шт.

31

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Grille Mounting Hex, M8 x 25, 8.8

4шт.

32

P3528794

WASHER

SPACER - 6 mm, bolt

4шт.

33

P1334571

NUT

- mounting bolt

4шт.

34

P1047299

NEG BATTERY CABLE

STRAP - ground

1шт.

35

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

plated, ground strap Hex, M10 x 35, 8.8, Full Thd

2шт.

36

P3528795

WASHER

SPACER - 7 mm, bolt

3шт.

37

100016

NUT,M10 x 1.5, Cl 8

Ground Bolt M10, Cl 8

1шт.

38

P533846

SCREW

BOLT - hex head, 14 mm x 40 mm, floor plate

2шт.

39

P3528792

WASHER

SPACER - 10 mm, bolt

2шт.

40

P3326360

DOOR

BOX - manual

1шт.

41

P2631335

CHAIN (AG)

CHAIN - manual

1шт.

42

P35418

RIVET

POP RIVET - box, 4.8 mm x 17 mm

2шт.
