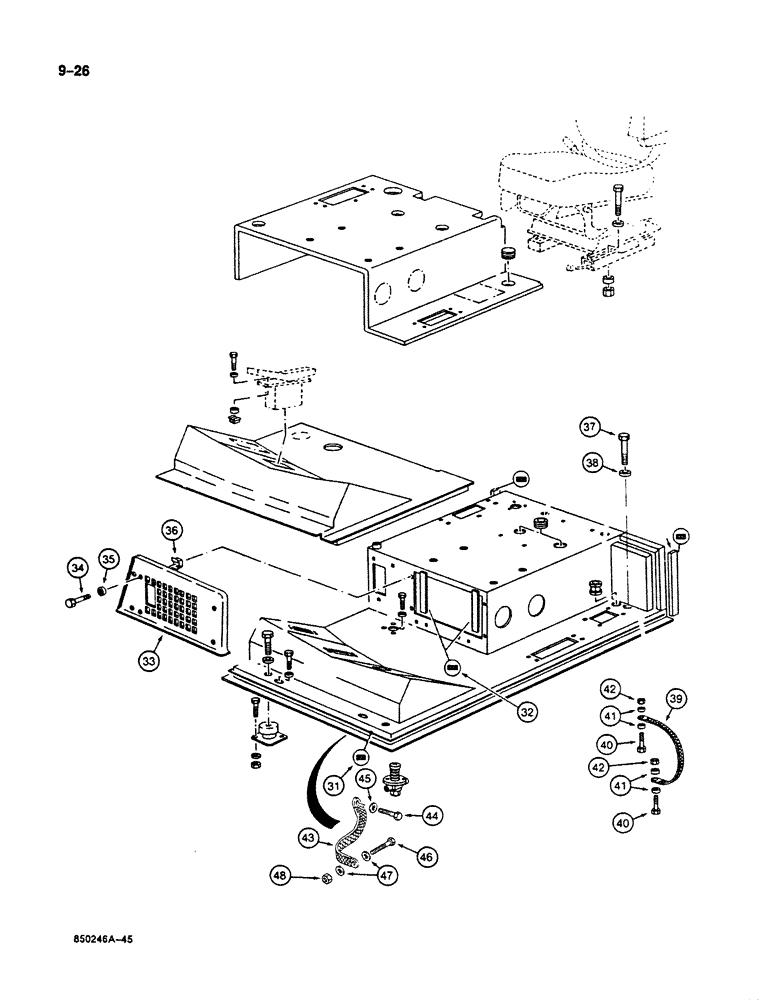

Запчасти Case 125B (9-026) - SEAT MOUNTING, AND FLOOR PLATE, P.I.N. 74251 THROUGH 74630 (09) - CHASSIS

31

REF

INSTRUCTION

SEAL - 14.76 ft (4.5 m) long, cut from P3127

1шт.

32

REF

INSTRUCTION

SEAL - 0.66 ft. (0.2 m) long, cut from P3128

2шт.

33

P2340445

SIEVE

GRILLE - heater, under seat

1шт.

34

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Grille Mounting Hex, M8 x 25, 8.8

4шт.

35

P3528794

WASHER

SPACER - bolt

4шт.

36

P1334571

NUT

- mounting bolt

4шт.

37

P533846

SCREW

BOLT - floor plate

2шт.

38

P3528792

WASHER

SPACER - bolt

2шт.

39

P1047299

NEG BATTERY CABLE

STRAP - ground, left hand side mounted, if used

1шт.

40

P33826

SCREW

BOLT - ground strap, left hand side mounted, if used

2шт.

41

P3528795

WASHER

SPACER - bolt, left hand side mounted ground strap, if used

4шт.

42

100016

NUT,M10 x 1.5, Cl 8

Ground Bolt, LH Side Mounted Strap, If Used M10, Cl 8

2шт.

43

P41824

NEG BATTERY CABLE

STRAP - ground, front mounted, if used

1шт.

44

P33826

SCREW

BOLT - hex head, 8 mm x 25 mm, full thread, ground strap, front mounted, if used

1шт.

45

P3528794

WASHER

SPACER - bolt, front mounted ground strap, if used

1шт.

46

P33818

SCREW

BOLT - hex head, 8 mm x 40 mm, full thread, ground strap, front mounted, if used

1шт.

47

P3528795

WASHER

SPACER - bolt, front mounted ground strap, if used

2шт.

48

100016

NUT,M10 x 1.5, Cl 8

Ground Bolt, Front Mounted Strap, If Used M10, Cl 8

1шт.
