Запчасти Case 125B (9-024) - SEAT MOUNTING, AND FLOOR PLATE, P.I.N. 74251 THROUGH 74630 (09) - CHASSIS

1

REF

INSTRUCTION

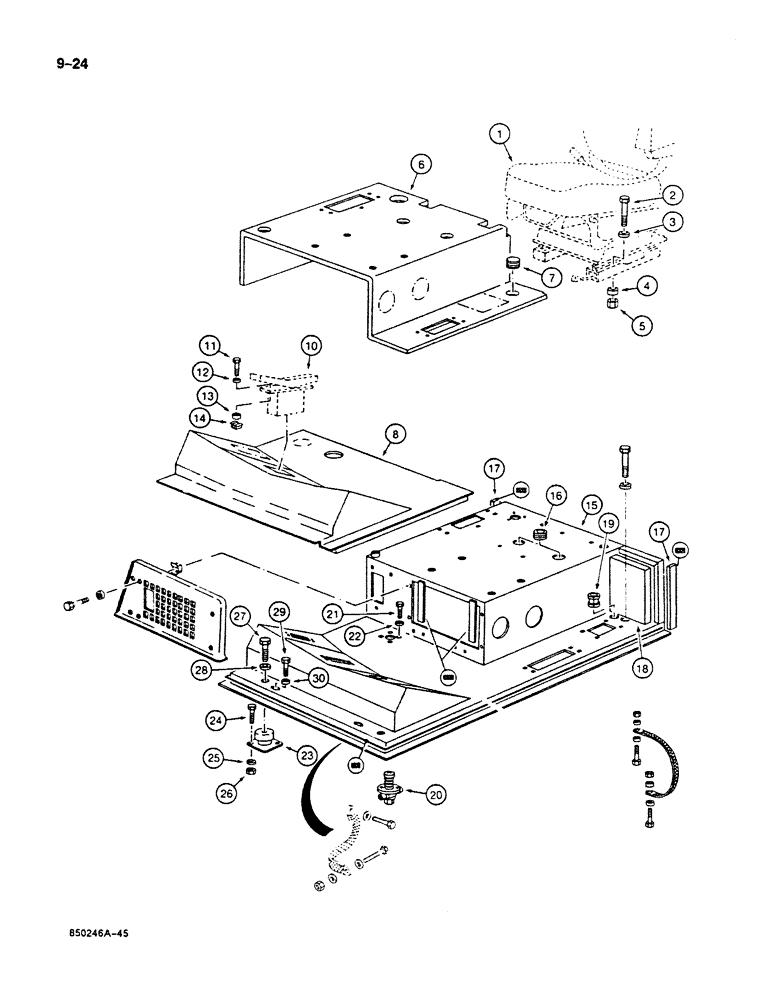

SEAT ASSEMBLY - parts list Figure 9-30

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Seat mounting Hex, M12 x 60, 8.8

4шт.

3

P3528793

WASHER

SPACER - bolt, upper

4шт.

4

P4328732

WASHER

SPACER - bolt, lower

4шт.

5

P1334578

NUT

- mounting bolt

4шт.

6

P3141485

MAT

- under seat

1шт.

7

P1037440

BLANK-OFF PLUG

PLUG - floor plate

1шт.

8

P3441448

MAT

- floor

1шт.

9

RESERVED

1шт.

10

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - foot, parts list Figure 8-236

2-3шт.

11

P133865

SCREW

BOLT - control valve mounting

12шт.

12

P3528794

WASHER

SPACER - bolt, upper

12шт.

13

P4328732

WASHER

SPACER - bolt, lower

12шт.

14

P1334571

NUT

- valve mounting bolts

12шт.

15

P6643851

FLOOR

PLATE - floor, operator compartment

1шт.

16

P41478

GROMMET

GUIDE - in floor plate

2шт.

17

REF

INSTRUCTION

SEAL - 0.98 ft (0.3 m) long, dut form P3127

2шт.

18

P3141452

LARGE PLATE

PAD - insulation, rear

1шт.

19

P141499

GROMMET

- floor plate

1шт.

20

P1443532

PUMP

- foot

1шт.

21

814-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

- Foot pump mounting Hex, M6 - 1 x 16, 8.8

4шт.

22

P3528799

WASHER

SPACER - bolt

4шт.

23

P741473

SUPPORT

- floor plate

4шт.

24

P1133839

SCREW

BOLT - support mounting

8шт.

25

P3528795

WASHER

SPACER - bolt

8шт.

26

P34598

SAFETY NUT

NUT - mounting bolt

8шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

Center mount Hex, M12 x 60, 8.8

4шт.

28

P3528797

WASHER

SPACER - center mount bolt

4шт.

29

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

floor plate Hex, M14 x 80, 8.8

2шт.

30

P629208

BUSHING

SPACER - bolt

2шт.
