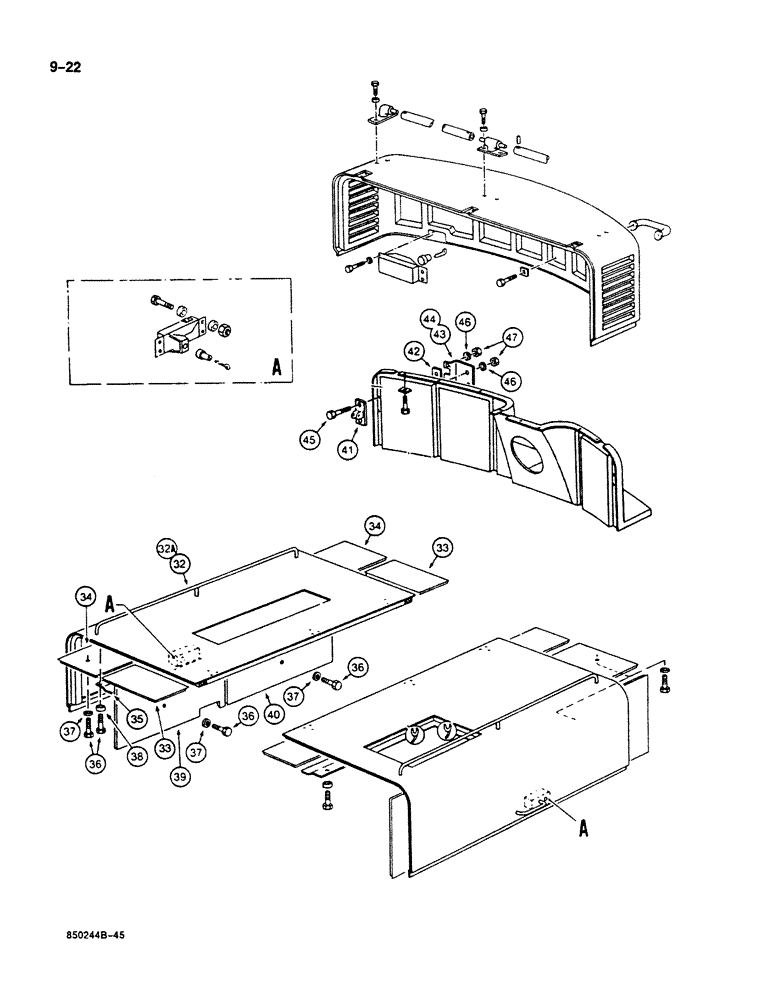

Запчасти Case 125B (9-022) - SHROUD AND ENGINE ACCESS COVERS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

32

P7543853

SHUTTER

COVER - engine access, right-hand, used with 14 mm OD cylinder rod, see Figure 9-18, Ref. 14

1шт.

32a

P6143885

SHUTTER

COVER - engine access, right-hand, used with 10 mm OD cylinder rod, see Figure 9-18, Ref. 14

1шт.

33

P2541457

LARGE PLATE

INSULATION - top, right-hand cover

2шт.

34

P2541456

LARGE PLATE

INSULATION - top, right-hand cover

2шт.

35

P23426151

RETAINER - top insulation

2шт.

36

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Retainer and Insulation to Cover Hex, M8 x 25, 8.8

10шт.

37

P1145471

WASHER

- insulation bolt

6шт.

38

P3528794

WASHER

SPACER - retainer bolt

4шт.

39

P2541459

PLATE

INSULATION - right-hand cover, side, front

1шт.

40

P2541458

PLATE

INSULATION - right-hand cover, side, rear

1шт.

41

P4128118

CLEVIS

BRACKET - mounting, shroud cylinder

2шт.

42

P7828162

LARGE PLATE

PLATE - support, shroud cylinder

2шт.

43

P1726263

STIFFENER

BRACKET - reinforcement, shroud, right-side

1шт.

44

P1726264

STIFFENER

BRACKET - reinforcement, shroud, left-side

1шт.

45

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- bracket to engine shroud Hex, M10 x 35, 8.8, Full Thd

8шт.

46

P34611

WASHER

- lock

8шт.

47

P34598

SAFETY NUT

NUT - hex

8шт.
