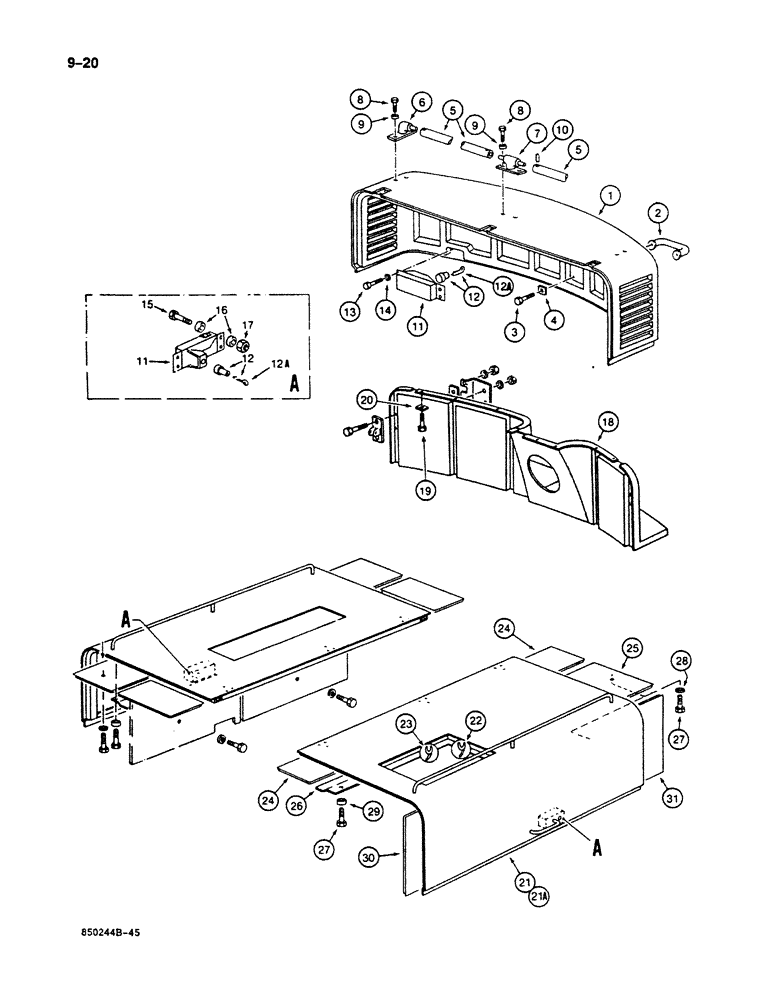

Запчасти Case 125B (9-020) - SHROUD AND ENGINE ACCESS COVERS, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

1

P7543807

COWL

SHROUD - rear

1шт.

2

P1352002

HANDLE

- shroud lift

2шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Handle to Shroud Hex, M8 x 25, 8.8

4шт.

4

P1722894

PLATE

- spacer

4шт.

5

P1348212

GRAB RAIL

HANDLE - assist, rear

2шт.

6

P104158

END FITTING

BRACKET - assist handle, outside

2шт.

7

P104159

SUPPORT

BRACKET - assist handle, center

1шт.

8

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- assist handle brackets to shroud

6шт.

9

P828507

WASHER

SPACER - bracket bolt

6шт.

10

P35730

SPLIT PIN/SAFETY PIN

ROLL PIN -, Serial Range: handle-bracket

4шт.

P1352001

LOCK ASSY

BRACKET AND LOCK ASSEMBLY - shroud and access cover, Includes: Ref. 11 - 12A

4шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - shroud and cover lock

1шт.

12

P152083

LOCK, CYLINDER

CYLINDER AND KEY - lock, Includes: Ref. 12

1шт.

12a

P1352009

KEY

- cylinder lock

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Lock Bracket to Shroud Hex, M8 x 25, 8.8

8шт.

14

P128719

BUSHING

SPACER - shroud lock bolt

8шт.

15

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

lock to engine cover Hex, M8 x 30, 8.8

8шт.

16

P3528794

WASHER

SPACER -, Serial Range: bolt-bracket

16шт.

17

P134596

SAFETY NUT

NUT - hex

8шт.

18

P4540315

VENT MANIFOLD

SHROUD - engine rear

1шт.

19

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Engine rear shroud Hex, M10 x 25, 10.9, Full Thd

20шт.

20

P1523469

PLATE

- shroud bolt

20шт.

21

P7543852

SHUTTER

COVER - engine access, left-hand, used with 14 mm OD cylinder rod, see Figure 9-18, Ref. 14

1шт.

21a

P6143819

SHUTTER

COVER - engine access, left-hand, used with 10 mm OD cylinder rod, see Figure 9-18, Ref. 14

1шт.

22

REF

INSTRUCTION

TRIM - cover access, 2.0 ft (0.6 m) long, cut from P303161

2шт.

23

REF

INSTRUCTION

TRIM - cover access, 2.3 ft (0.7 m) long, cut from P303161

2шт.

24

P2541455

LARGE PLATE

INSULATION - top, left-hand cover

2шт.

25

P2541454

LARGE PLATE

INSULATION - top, left-hand cover

1шт.

26

P2426152

HOOD

RETAINER - top insulation

1шт.

27

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Retainer and Insulation to Cover Hex, M8 x 25, 8.8

9шт.

28

P1145471

WASHER

- insulation retainer bolt

5шт.

29

P3528794

WASHER

SPACER - retainer bolt

4шт.

30

P2541458

PLATE

INSULATION - left-hand cover, side, front

1шт.

31

P2541459

PLATE

INSULATION - left-hand cover, side, rear

1шт.
