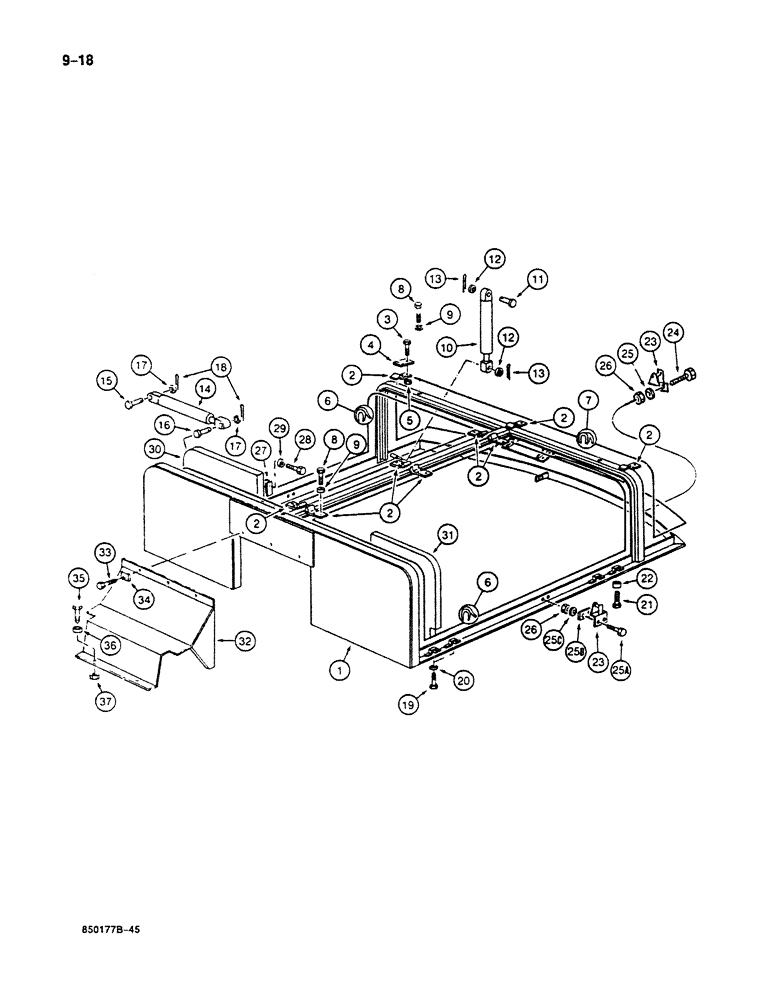

Запчасти Case 125B (9-018) - SHROUD AND ENGINE ACCESS COVER FRAME, P.I.N. 74251 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (09) - CHASSIS

1

P7543854

FRAME

- engine access cover and rear shroud, Includes: Ref. 2

1шт.

2

P36684

HINGE

- access covers to frame, Serial Range: (welded-frame)

9шт.

3

P933833

SCREW

BOLT - rear shroud to hinge at frame

9шт.

4

P523280

PLATE

- support, rear shroud hinge

6шт.

5

P134549

SAFETY NUT

NUT - hex

9шт.

6

REF

INSTRUCTION

SEAL - engine access covers, 21.65 ft (6.6 m) long, cut from P303153

2шт.

7

REF

INSTRUCTION

SEAL - rear shroud to frame, 20 ft (6.1 m) long, cut from P303111

1шт.

8

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

Engine access covers to frame hinge Hex, M14 x 30

20шт.

9

P35005

WASHER

- lock

20шт.

10

P1436932

GAS STRUT

CYLINDER - shroud support

2шт.

11

P2327822

PIN

-, Serial Range: cylinder-shroud

2шт.

12

P35002

WASHER

- flat

4шт.

13

P35510

SPLIT PIN

COTTER PIN - cylinder pin

4шт.

14

P3036945

GAS STRUT

CYLINDER - support, engine access cover, 14 mm OD cylinder rod, if used

2шт.

14

P1436933

GAS STRUT

CYLINDER - support, engine access cover, 10 mm OD cylinder rod, if used

2шт.

15

P2327822

PIN

-, Serial Range: cylinder-frame

2шт.

16

P1127815

PIN

-, Serial Range: cylinder-covers

2шт.

17

P35002

WASHER

- flat

4шт.

18

P35510

SPLIT PIN

COTTER PIN - cylinder pin

4шт.

19

P533846

SCREW

BOLT - frame to turntable, at front

2шт.

20

P3528792

WASHER

SPACER - bolt

2шт.

21

P933851

SCREW

BOLT - frame to turntable, at rear

10шт.

22

P629208

BUSHING

SPACER - bolt

10шт.

23

P152082

CATCH PLATE

LATCH - shroud and engine covers

4шт.

24

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

latch to frame, rear Hex, M8 x 30, 8.8

4шт.

25

P35002

WASHER

- flat, rear latch bolt

4шт.

25a

P33818

SCREW

BOLT - latch to frame, sides

4шт.

25b

P1722830

PLATE

- spacer, side, Serial Range: latch-frame

2шт.

25c

P3528794

WASHER

SPACER - side latch bolt

4шт.

26

P134596

SAFETY NUT

NUT - hex

8шт.

27

P4228203

ANGLE BAR

BRACKET - at front of frame, if used

1шт.

28

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Bracket to Frame, If used Hex, M8 x 25, 8.8

2шт.

29

P3528794

WASHER

SPACER - bolt, if used

2шт.

30

P2541468

PANEL

INSULATION - front, right-hand side

1шт.

31

P2541467

PANEL

INSULATION - front, left-hand side

1шт.

32

P7743898

COWL

COVER - hydraulic swivel

1шт.

33

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, - Cover to frametop Hex, M10 x 25, 10.9, Full Thd

3шт.

34

P1523469

PLATE

- spacer

3шт.

35

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Cover to frame, bottom Hex, M10 x 30, 8.8

2шт.

36

P3528795

WASHER

SPACER - bolt

2шт.

37

P1334561

NUT

- hex

2шт.
