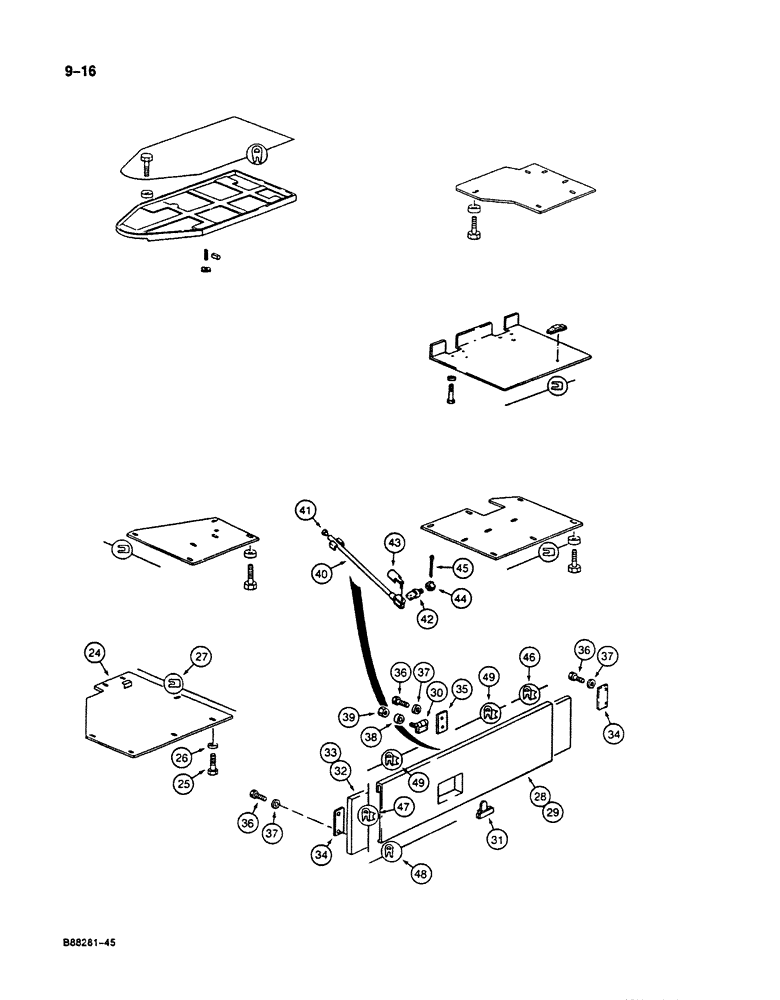

Запчасти Case 125B (9-016) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74631 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

24

P5743889

PANEL

COVER - left-hand, bottom

1шт.

25

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Cover Hex, M10 x 30, 8.8

7шт.

26

P5428708

WASHER

SPACER - bolt

7шт.

27

REF

INSTRUCTION

SEAL - 0.98 FT (0.3 m) long, cut from P303112

1шт.

P7543881

PANEL

DOOR ASSEMBLY - right-hand side, Includes: Ref. 28 - 31

1шт.

P7543880

PANEL

DOOR ASSEMBLY - left-hand side, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - right-hand side

1шт.

29

NSS

NOT SOLD SEPARAT

DOOR - lift-hand side

1шт.

30

P736626

HINGE

- door

3шт.

31

P51922

LATCH

- door

2шт.

32

P2541485

LARGE PLATE

PAD - insulation, front of left-hand door

1шт.

33

P2541486

LARGE PLATE

PAD - insulation, rear of left-hand door, front and rear of right hand door

3шт.

34

P2822811

PLATE

- door ends

4шт.

35

P2822821

PLATE

- door center

2шт.

36

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Plate Hex, M8 x 25, 8.8

12шт.

37

P3528794

WASHER

SPACER - bolt

12шт.

38

P3528795

WASHER

SPACER - nut

12шт.

39

P34598

SAFETY NUT

NUT - hex

12шт.

40

P736698

STAND

ROD - support

2шт.

41

P1737425

PLASTIC PLUG

PLUG - rod end

2шт.

42

P1027951

CLEVIS

BOLT - swivel, support rod

2шт.

43

P51954

LARGE PIN

RETAINER - rod to swivel bolt

2шт.

44

P34307

NUT

- swivel bolt

2шт.

45

P35512

SPLIT PIN

COTTER PIN - swivel bolt

2шт.

46

REF

INSTRUCTION

SEAL - 0.32 ft (0.1 m) long, cut from P303167

2шт.

47

REF

INSTRUCTION

SEAL - 1.64 ft (0.5 m) long, cut from P303167

2шт.

48

REF

INSTRUCTION

SEAL - 6.23 ft (1.9 m) long, cut from P3109

2шт.

49

REF

INSTRUCTION

SEAL - 2.62 ft (0.8 m) long, cut from P303167

4шт.
