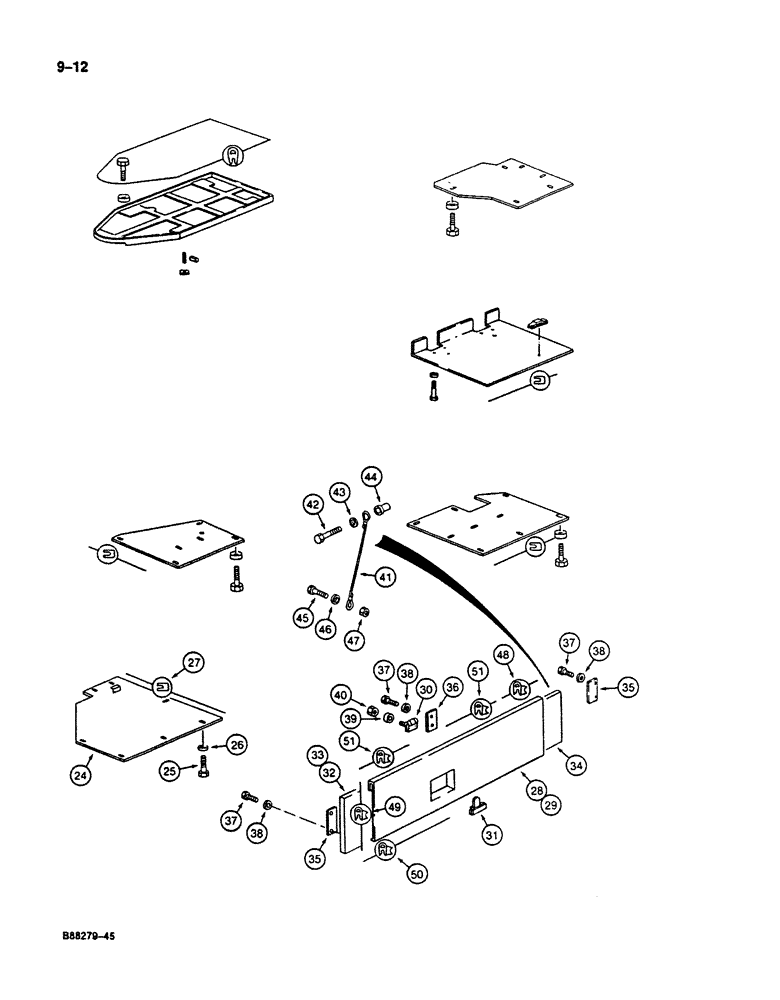

Запчасти Case 125B (9-012) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74251 THROUGH 74630 (09) - CHASSIS

24

P5743889

PANEL

COVER - left-hand, bottom

1шт.

25

P733096

SCREW

BOLT - cover

7шт.

26

P3528795

WASHER

SPACER - bolt

7шт.

27

REF

INSTRUCTION

SEAL - 0.98 ft (0.3 m) long, cut from P303112

1шт.

P5743887

PANEL

DOOR ASSEMBLY - right-hand side, Includes: Ref. 28 - 31

1шт.

P5243867

PANEL

DOOR ASSEMBLY - left-hand side, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - right-hand side

1шт.

29

NSS

NOT SOLD SEPARAT

DOOR - left-hand side

1шт.

30

P736626

HINGE

- door

3шт.

31

P51922

LATCH

- door

2шт.

32

P2541487

LARGE PLATE

PAD - insulation, rear of left-hand door, front of right-hand door

2шт.

33

P2541485

LARGE PLATE

PAD - insulation, front of left-hand door

1шт.

34

P2541486

LARGE PLATE

PAD - insulation, rear of right-hand door

1шт.

35

P2822811

PLATE

- door ends

4шт.

36

P2822821

PLATE

- door center

2шт.

37

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Plate Hex, M8 x 25, 8.8

12шт.

38

P3528794

WASHER

SPACER - bolt

12шт.

39

P3528795

WASHER

SPACER - nut

12шт.

40

P34598

SAFETY NUT

NUT - hex

12шт.

41

P2534358

CABLE - side door

2шт.

42

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, , Mounting Hex, M8 x 25, 8.8

2шт.

43

P3528794

WASHER

SPACER - bolt

2шт.

44

P234527

SLEEVE - bolt

2шт.

45

814-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

mounting Hex, M8 x 30, 8.8

2шт.

46

P3528794

WASHER

SPACER - bolt

2шт.

47

P134596

SAFETY NUT

NUT - hex

2шт.

48

REF

INSTRUCTION

SEAL - .032 ft (0.1 m) long, cut from P303167

2шт.

49

REF

INSTRUCTION

SEAL - 1.64 ft (0.5 m) long, cut from P303167

2шт.

50

REF

INSTRUCTION

SEAL - 6.23 ft (1.9 m) long, cut from P303167

2шт.

51

REF

INSTRUCTION

SEAL - 2.62 ft (0.8 m) long, cut from P303167

4шт.
