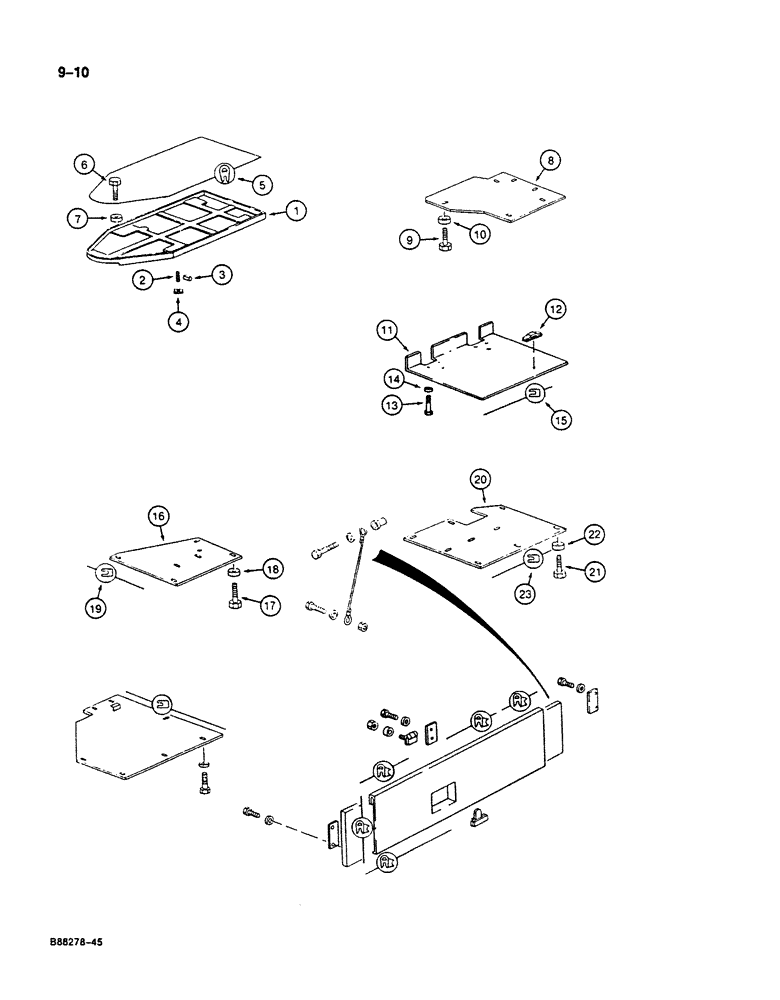

Запчасти Case 125B (9-010) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74251 THROUGH 74630 (09) - CHASSIS

P7543805

LARGE PLATE

COVER ASSEMBLY - fiberglass, center, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - fiberglass, center

1шт.

2

P727753

STEM

ROD - threaded

3шт.

3

P35731

SPLIT PIN/SAFETY PIN

ROLL PIN - nut

3шт.

4

P834578

NUT

- hand twist

3шт.

5

REF

INSTRUCTION

SEAL - 12.46 ft (3.8 m) long, cut from P3109

1шт.

6

P33840

SCREW

BOLT - cover hinge

6шт.

7

P3528793

WASHER

SPACER - bolt

6шт.

8

P1623915

HOOD

COVER - right-hand front

1шт.

9

P733096

SCREW

BOLT - cover

6шт.

10

P3528795

WASHER

SPACER - bolt

6шт.

P5743882

PANEL

DOOR ASSEMBLY - left-hand, bottom, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

DOOR - left-hand, bottom

1шт.

12

P343809

LATCH

- door

2шт.

13

P33840

SCREW

BOLT - door hinge

6шт.

14

P3528795

WASHER

SPACER - bolt

6шт.

15

REF

INSTRUCTION

SEAL - 0.98 ft (0.3 m) long, cut from P303112

1шт.

16

P4443816

PANEL

COVER - under operators compartment, rear

1шт.

17

P733096

SCREW

BOLT - cover

5шт.

18

P3528795

WASHER

SPACER - bolt

5шт.

19

REF

INSTRUCTION

SEAL - 0.98 ft (0.3 m) long, cut from P303112

1шт.

20

P4423473

PANEL

COVER - under operators compartment, front

1шт.

21

P733096

SCREW

BOLT - cover

7шт.

22

P3528795

WASHER

SPACER - bolt

7шт.

23

REF

INSTRUCTION

SEAL - 0.98 ft (0.3 m) long, cut from P303112

1шт.
