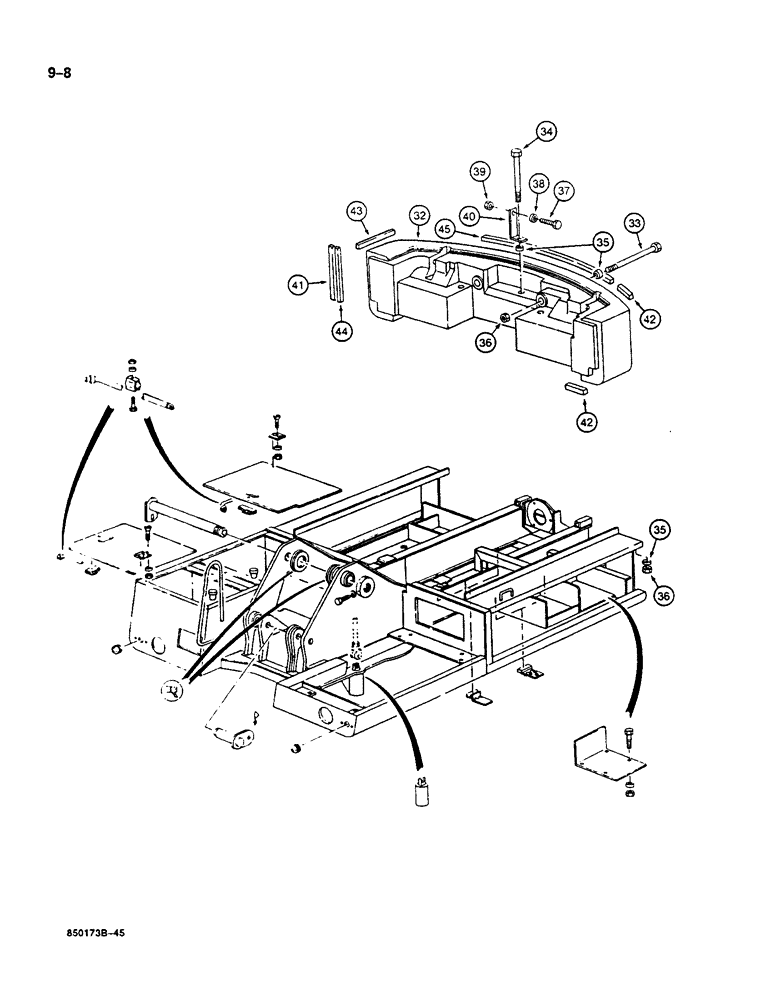

Запчасти Case 125B (9-008) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

32

P503861

BALANCER

COUNTERWEIGHT - rear, units with, Serial Range: 74251-74879

1шт.

32

P603809

BALANCER

COUNTERWEIGHT - rear, Serial Range: 74880-74963

1шт.

32

P603809

BALANCER

COUNTERWEIGHT - rear, Serial Range: 21801-21868

1шт.

32

P603809

BALANCER

COUNTERWEIGHT - rear, Start Serial: 26801

1шт.

33

P32788

SCREW

BOLT - counterweight, horizontal

2шт.

34

P32787

SCREW

BOLT - counterweight, vertical

3шт.

35

P646314

WASHER

SPACER - bolt

8шт.

36

P834543

SAFETY NUT

NUT - hex

5шт.

37

P933833

SCREW

BOLT - hex head, 14 mm x 45 mm, full thread

1шт.

38

P3528792

WASHER

SPACER - bolt

1шт.

39

P134549

SAFETY NUT

NUT - hex

1шт.

40

P2325698

PLATE

BRACKET - counterweight, upper

1шт.

41

REF

INSTRUCTION

SEAL - 1.64 ft. (0.5 m) long, cut from P3127

2шт.

42

REF

INSTRUCTION

SEAL - 0.66 ft. (0.2 m) long, cut from P3195

4шт.

43

REF

INSTRUCTION

SEAL - 1.31 ft (0.4 m) long, cut from P3195

2шт.

44

REF

INSTRUCTION

SEAL - 1.64 ft (0.5 m) long, cut from P3195

2шт.

45

REF

INSTRUCTION

SEAL - 5.24 ft (1.6 m) long, cut from P3195

1шт.
