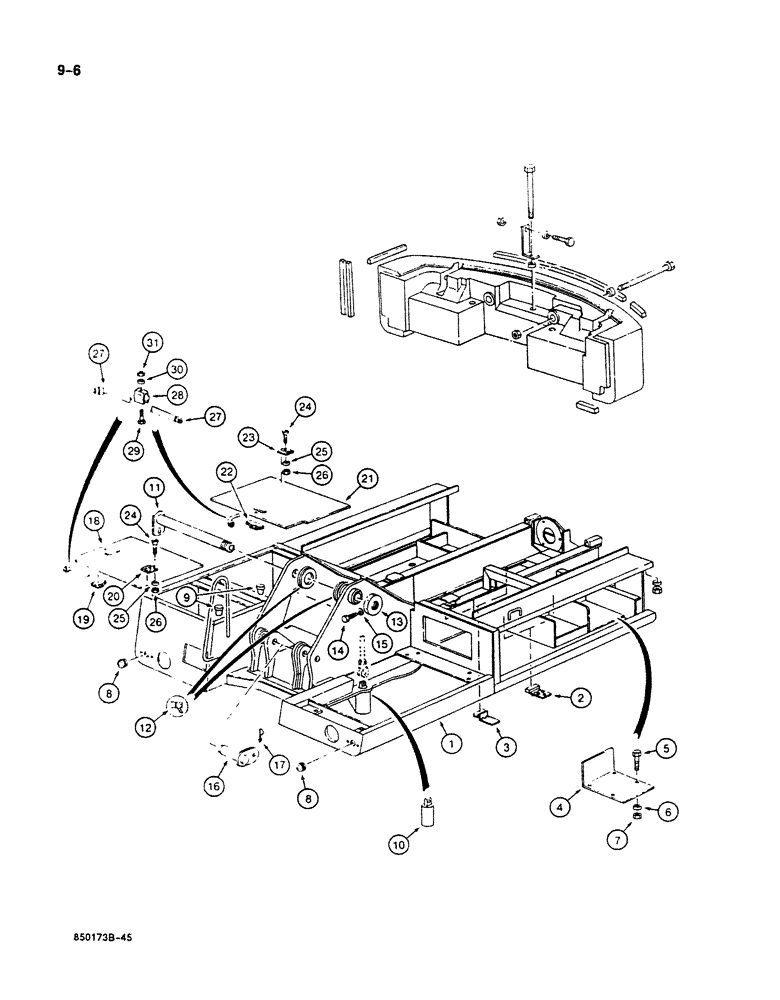

Запчасти Case 125B (9-006) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74251 THROUGH 74963, 21801 THROUGH 21868, 26801 AND AFTER (09) - CHASSIS

P54628

FRAME

TURNTABLE ASSEMBLY - excavator, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

TURNTABLE - weldment

1шт.

2

P736684

HINGE

- front

2шт.

3

P2227105

JOINT

HINGE - rear

2шт.

4

P4525650

HOOD

SHELF - storage compartment

1шт.

5

P933818

SCREW

BOLT - shelf

4шт.

6

P3528795

WASHER

SPACER - bolt

4шт.

7

P34598

SAFETY NUT

NUT - hex

4шт.

8

P3037408

PLASTIC PLUG

PLUG - turntable

2шт.

9

P41434

STOP

PLUG - turntable

2шт.

10

P2530986

PIN

- turntable lock, see Figure 9-42 for mounting components

1шт.

11

P2430953

HEADED PIN

PIN -, Serial Range: boom-turntable

1шт.

12

P251304

SEAL

- boom pivot pin

2шт.

13

P1634569

NUT

COLLAR - threaded

1шт.

14

P2033040

SCREW

BOLT - special

1шт.

15

P3528796

WASHER

SPACER - bolt

1шт.

16

P2430957

HEADED PIN

PIN - boom cylinder to turntable (rod end of cylinder)

2шт.

17

P36020

SPLIT PIN/SAFETY PIN

COTTER PIN - hair type

2шт.

P6143899

DOOR

ASSEMBLY - access, front, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR - access, front

1шт.

19

P343809

LATCH

- door

1шт.

20

P736667

HINGE

- door

2шт.

P6143898

DOOR

ASSEMBLY - access, rear, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

DOOR - access, rear

1шт.

22

P343809

LATCH

- door

1шт.

23

P73667

HINGE - door

2шт.

24

P32415

SCREW

- hinge

8шт.

25

P3528795

WASHER

SPACER - nut

8шт.

26

P34598

SAFETY NUT

NUT - hinge screw

8шт.

27

P736678

STAND

ROD - door support

2шт.

28

P1736995

FASTENER

LATCH - rod

2шт.

29

P433821

SCREW

- latch

2шт.

30

P4328717

WASHER

SPACER - nut

2шт.

31

P34107

NUT - hex

2шт.
