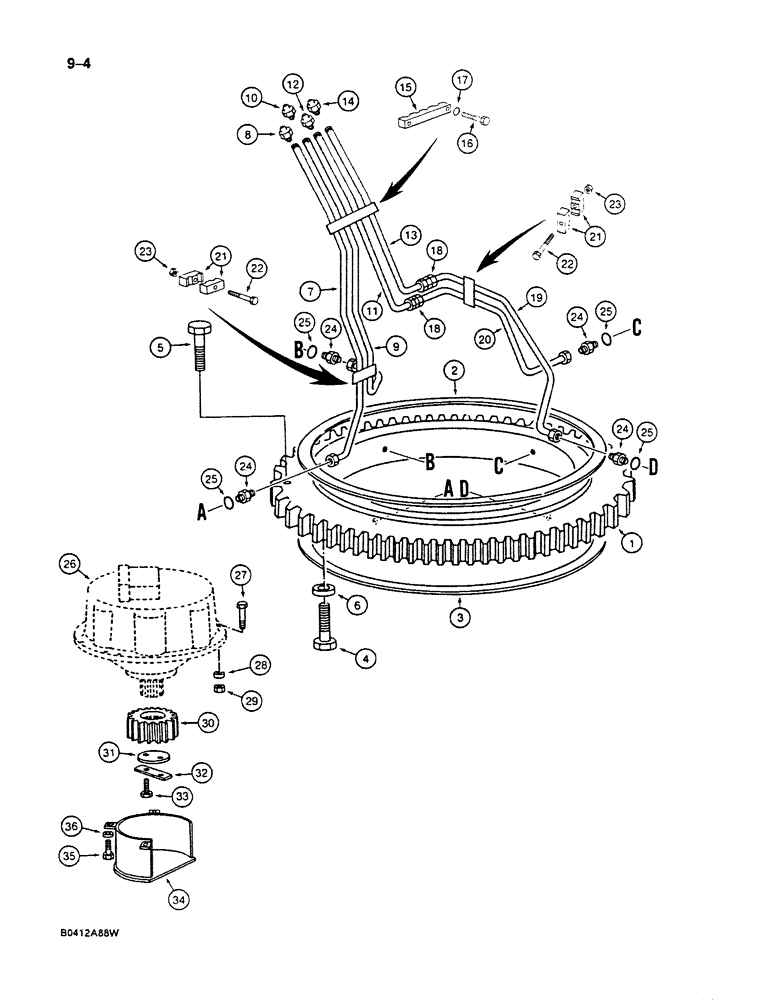

Запчасти Case 125B (9-004) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74845 THRU 74963, 21801 THRU 21868, 26801 AND AFTER (09) - CHASSIS

P739906

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

2

P2046029

SEAL

- upper

1шт.

3

P2046040

SEAL

- lower

1шт.

4

P333808

SCREW

BOLT - lower

28шт.

5

P933893

SCREW

BOLT - upper

28шт.

6

P3228773

WASHER

SPACER - bolt

28шт.

P6749197

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

8

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

P6749196

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

10

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

P8347675

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

12

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

P8347674

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - lubrication

1шт.

14

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

15

P4620389

SHIN

CLAMP - tube

1шт.

16

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- clamp Hex, M10 x 35, 8.8, Full Thd

2шт.

17

P3528794

WASHER

- lock

2шт.

18

P3237535

UNION

CONNECTOR - straight

2шт.

19

P6749195

PIPE

TUBE - lubrication

1шт.

20

P6249067

PRESSURE PIPE,284, 404 mm L

TUBE - lubrication

1шт.

21

P4620392

SHIN

CLAMP - tube

4шт.

22

P1133839

SCREW

BOLT - clamp

2шт.

23

P34598

SAFETY NUT

NUT - hex

2шт.

P4037585

UNION

ADAPTER ASSEMBLY - straight, Includes: Ref. 24 and 25

4шт.

24

NSS

NOT SOLD SEPARAT

ADAPTER - straight

1шт.

25

P2230441

SEAL

O-RING - adapter

1шт.

26

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 274

1шт.

27

P133836

SCREW

BOLT - swing motor

11шт.

28

P3528796

WASHER

SPACER - bolt

11шт.

29

P134564

SAFETY NUT

NUT - hex

11шт.

30

P3739356

PINION

GEAR - swing motor, see Ref. 37 for lubricant

1шт.

31

P130115

WASHER

PLATE - round

1шт.

32

P22877

BRAKE

PLATE - bolt

1шт.

33

P33869

BOLT,Hex, M14 x 30

Gear retaining Hex, M14 x 30

2шт.

34

P4340341

HOUSING

COVER - gear

1шт.

35

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- cover retaining

3шт.

36

P3528793

WASHER

- flat

3шт.

37

331-438

LUBRICANT

- swing gear, 20 oz. spray can, Symquip No. OGL-S, not shown

1шт.
