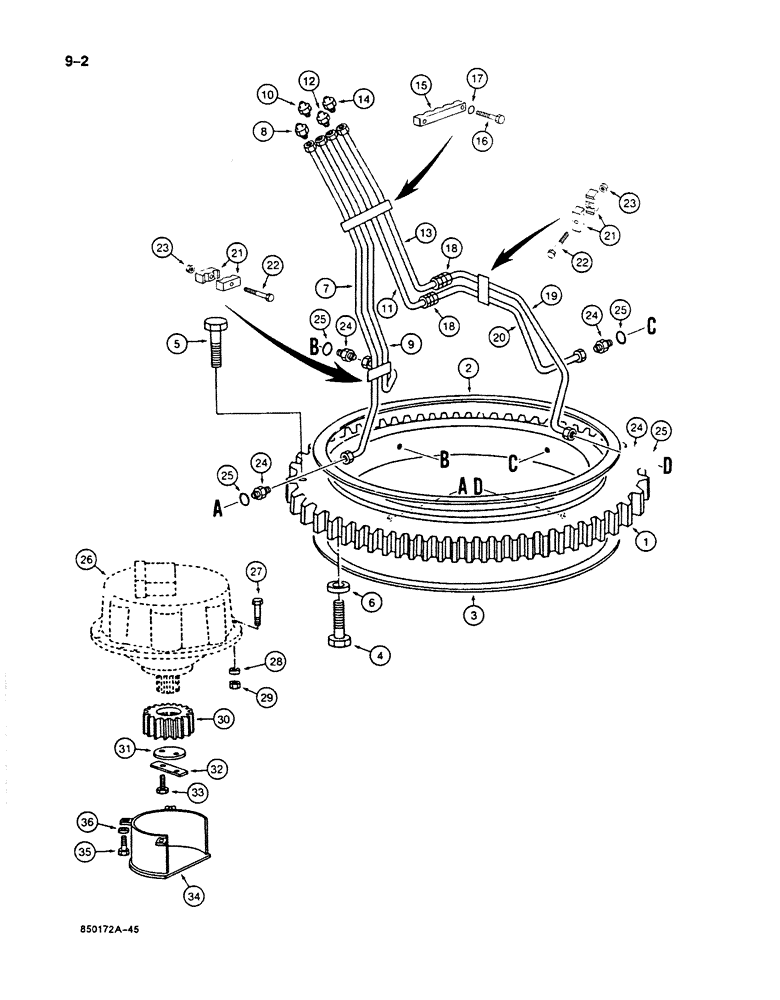

Запчасти Case 125B (9-002) - TURNTABLE BEARING AND LUBRICATION LINES, P.I.N. 74251 THROUGH 74844 (09) - CHASSIS

P739906

SLEWING RING

BEARING ASSEMBLY - turntable, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BEARING - turntable

1шт.

2

P2046040

SEAL

- upper (replaces P2046029)

1шт.

3

P2046029

SEAL

- lower (replaces P2046040)

1шт.

4

P333808

SCREW

BOLT - lower (replaces P33808)

28шт.

5

P933893

SCREW

BOLT - upper

28шт.

Ref #5 - (3/4" X 5 3/4")

1шт.

6

P3228773

WASHER

SPACER - bolt

28шт.

7

P4449188

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 8

1шт.

8

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

9

P4449189

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 10

1шт.

10

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

11

P5347142

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 12

1шт.

12

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

13

P5347143

PIPE

TUBE ASSEMBLY - lubrication, Includes: Ref. 14

1шт.

14

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

1шт.

15

P2023408

SHIN

CLAMP - tube

1шт.

16

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- clamp Hex, M10 x 35, 8.8, Full Thd

2шт.

17

P34711

WASHER

- lock

2шт.

18

P37553

UNION

CONNECTOR - straight

2шт.

19

P4449187

PIPE

TUBE - lubrication

1шт.

20

P4749050

PIPE

TUBE - lubrication

1шт.

21

P1420362

SHIN

CLAMP - tube

4шт.

22

P433805

SCREW

BOLT - clamp

2шт.

23

P34598

SAFETY NUT

NUT - hex

2шт.

24

P837555

UNION

ADAPTER - straight

4шт.

25

P28424

COMPOSITE SEAL

O-RING - adapter

4шт.

26

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, parts list Figures 8-272 and 8-274

1шт.

27

P133836

SCREW

BOLT - swing motor

11шт.

28

P3528796

WASHER

SPACER - bolt

11шт.

29

P134564

SAFETY NUT

NUT - hex

11шт.

30

P3739356

PINION

GEAR - swing motor, see Ref. 37 for lubricant

1шт.

31

P130115

WASHER

PLATE - round

1шт.

32

P22877

BRAKE

PLATE - bolt

1шт.

33

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

Gear retaining Hex, M14 x 30

2шт.

34

P4340341

HOUSING

COVER - gear

1шт.

35

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- cover retaining

3шт.

36

P3528793

WASHER

- flat

3шт.

37

331-438

LUBRICANT

- swing gear, 20 oz. spray can, Symquip No. OGL-S, not shown

1шт.
