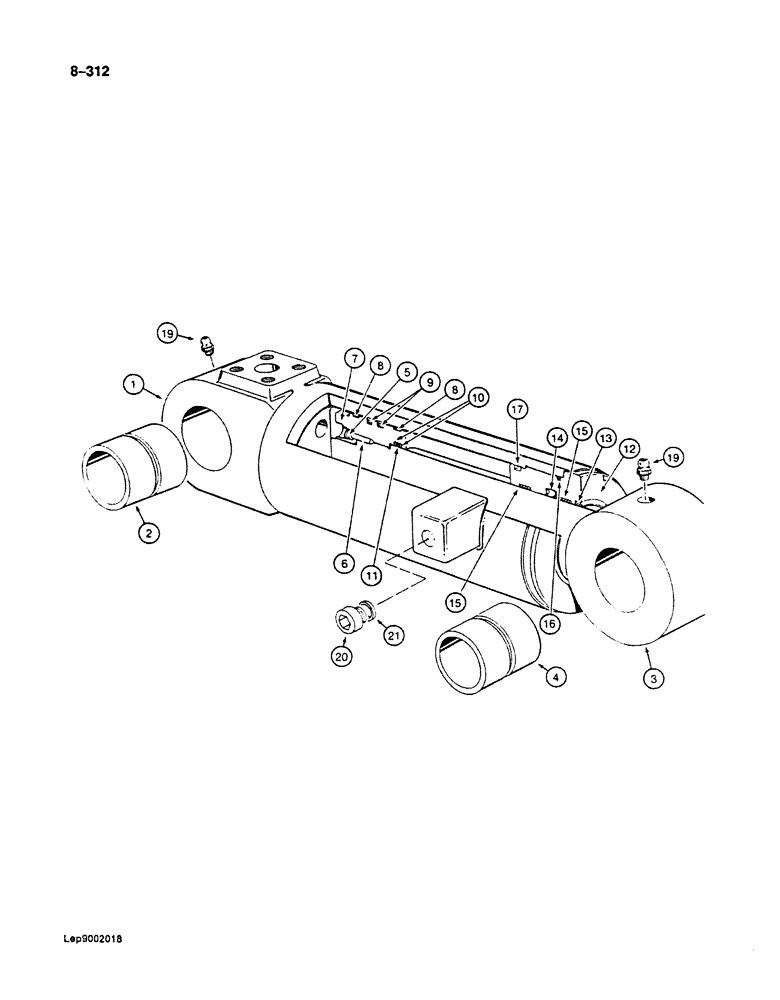

Запчасти Case 125B (8-312) - TOOL CYLINDER - P8346705, IF USED, CYLINDERS WITHOUT LETTER IDENTIFICATION (08) - HYDRAULICS

P8346705

CYLINDER ASSY.

CYLINDER ASSEMBLY - tool, cylinders without letter identification (Replaces P7646716, P7746786), Includes: Ref. 1 - 21

1шт.

P1852430

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928667

BUSHING

- tube

1шт.

P8849425

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928667

BUSHING

- piston rod

1шт.

5

P1432952

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P5649659

1шт.

6

P827736

PIN

- locking

1шт.

Part of Seal Kit, P/N P5649659

1шт.

7

P4129157

PISTON

- cylinder

1шт.

8

P2045279

RING - wear

2шт.

Part of Seal Kit, P/N P5649659

1шт.

9

P446049

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit, P/N P5649659

1шт.

10

P9046022

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P5649659

1шт.

11

P2030488

O-RING,0.139" Thk x 3.484" ID, -238, Cl 6, 90 Duro

- piston rod

1шт.

Part of Seal Kit, P/N P5649659

1шт.

12

P4129156

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P2046007

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P5649659

1шт.

14

P1651223

SEAL

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit, P/N P5649659

1шт.

15

P2045252

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P5649659

1шт.

16

P2030411

O-RING,0.094" Thk x 5.25" ID, -160, Cl 5, 75 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N P5649659

1шт.

17

P2030492

O-RING - gland, inner

1шт.

Part of Seal Kit, P/N P5649659

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

20

P2537413

PLUG

- cylinder, Includes: Ref. 21

1шт.

21

P1145268

SEAL

- plug

1шт.

P5649659

SEAL PACKAGE

KIT - seal, includes Refs. 5, 6, 8 thru 11 and 13 thru 17

1шт.
