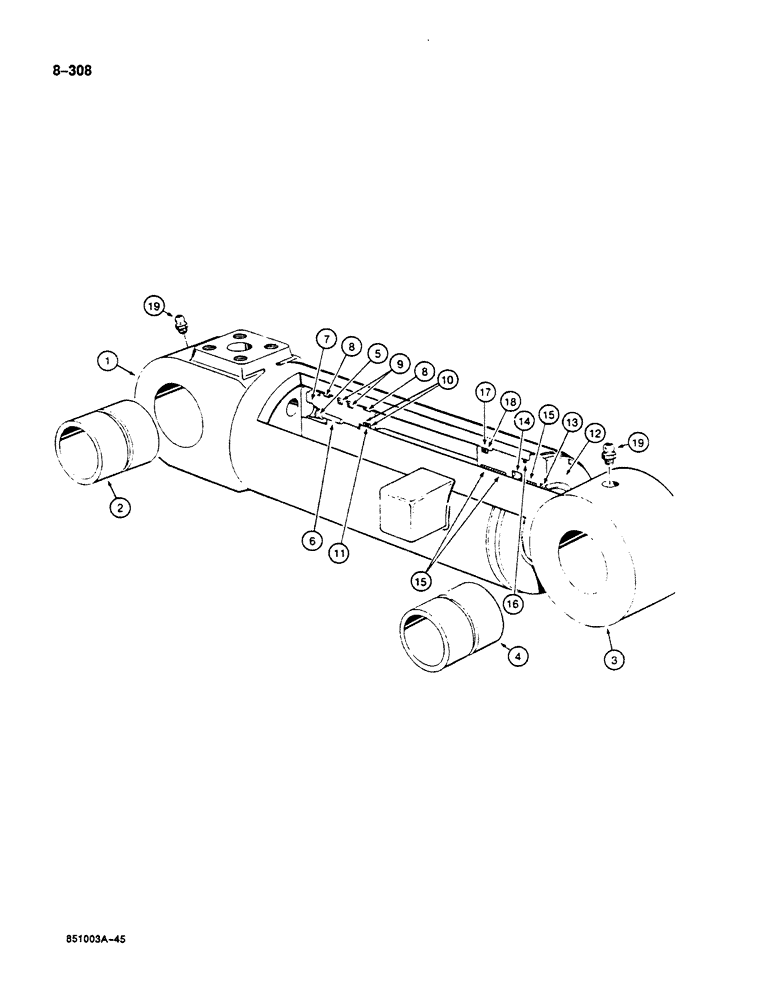

Запчасти Case 125B (8-308) - TOOL CYLINDER - P7646716, IF USED, CYLINDERS WITH LETTER "C" AND AFTER IDENTIFICATION (08) - HYDRAULICS

P7646716

CYLINDER

ASSEMBLY - tool, cylinders with letter "C" identification, (Order P8346702, see Figure 8-312), Includes: Ref. 1 - 19

1шт.

Check cylinder tube for proper identification letter following cylinder part number.

1шт.

P1552474

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928667

BUSHING

- tube

1шт.

P8249436

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928667

BUSHING

- piston rod

1шт.

5

P1432952

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P4949674

1шт.

6

P827736

PIN

- locking

1шт.

Part of Seal Kit, P/N P4949674

1шт.

7

P3829112

PISTON

- cylinder

1шт.

8

P2045233

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P4949674

1шт.

9

P446049

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit, P/N P4949674

1шт.

10

P4246023

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P4949674

1шт.

11

P30344

O-RING

- piston rod

1шт.

Part of Seal Kit, P/N P4949674

1шт.

12

P3829113

CYLINDER END CAP

GLAND - cylinder

1шт.

13

P2046007

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P4949674

1шт.

14

P1351215

SEAL

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit, P/N P4949674

1шт.

15

P2746013

SEGMENT

RING - wear

3шт.

Part of Seal Kit, P/N P4949674

1шт.

16

P2030411

O-RING,0.094" Thk x 5.25" ID, -160, Cl 5, 75 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N P4949674

1шт.

17

P2030421

O-RING

- gland, inner

1шт.

Part of Seal Kit, P/N P4949674

1шт.

18

P6846008

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N P4949674

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

P4949674

SEAL PACKAGE

KIT - seal, includes Refs. 5, 6, 8 thru 11 and 13 thru 18

1шт.
