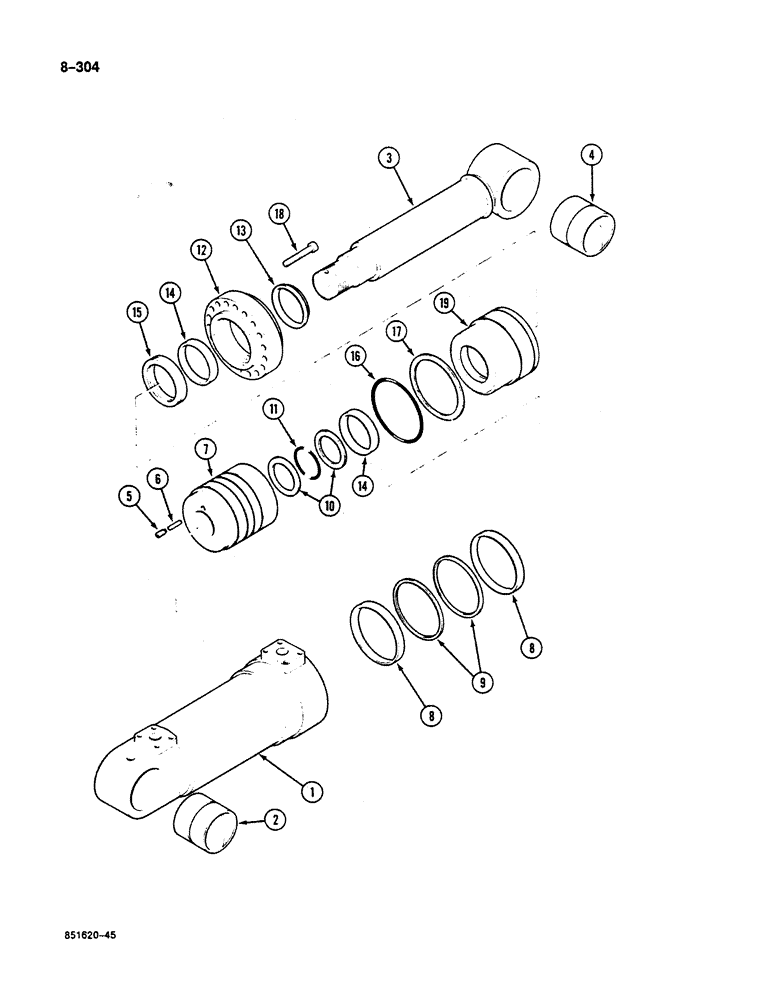

Запчасти Case 125B (8-304) - REHANDLING ARM CYLINDER (08) - HYDRAULICS

P7346726

CYLINDER

ASSEMBLY - arm, Includes: Ref. 1 - 19

1шт.

P952417

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1928604

BUSHING

- tube

1шт.

P7849477

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1928604

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P4949641

1шт.

6

P827737

PIN

- locking

1шт.

Part of Seal Kit, P/N P4949641

1шт.

7

P3729168

PISTON

- cylinder

1шт.

For Ref. no. 7, if looking for a 155mm piston, part no. p3729151.mck7-22-97

1шт.

8

P7846021

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P4949641

1шт.

9

P1451296

SEAL

- PISTON

2шт.

Part of Seal Kit, P/N P4949641

1шт.

10

P1846069

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P4949641

1шт.

11

P30347

O-RING

- piston rod

1шт.

Part of Seal Kit, P/N P4949641

1шт.

12

P3930129

WASHER

RETAINER - cylinder gland

1шт.

13

P246073

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P4949641

1шт.

14

P2046091

SEGMENT

RING - wear

2шт.

Part of Seal Kit, P/N P4949641

1шт.

15

P1351219

SEAL

U-CUP SEAL - piston

1шт.

Part of Seal Kit, P/N P4949641

1шт.

16

P30363

O-RING

- gland, small

1шт.

Part of Seal Kit, P/N P4949641

1шт.

17

P945209

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N P4949641

1шт.

18

P732985

SCREW

BOLT - gland

16шт.

19

P7330154

CYLINDER END CAP

GLAND - cylinder

1шт.

P4949641

SEAL PACKAGE

KIT - seal, includes Refs. 5, 6, 8 thru 11 and 13 thru 17

1шт.
