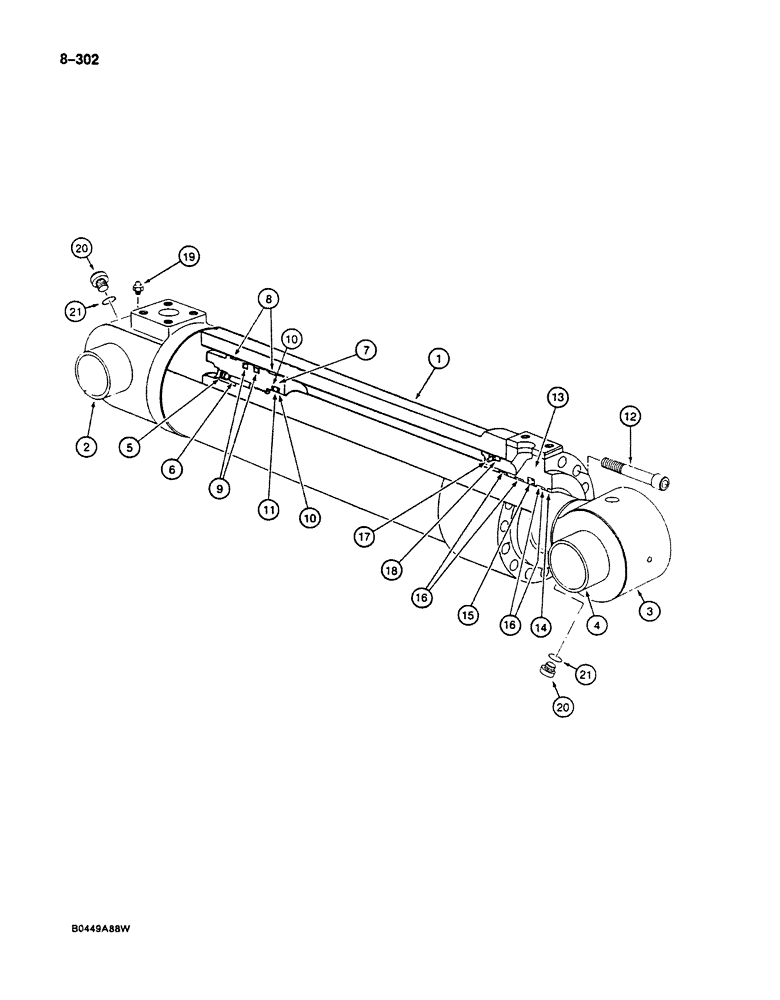

Запчасти Case 125B (8-302) - ARM CYLINDER - P8346710, IF USED, CYLINDERS WITHOUT IDENTIFICATION LETTER (08) - HYDRAULICS

P8346710

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm (Replaces P6456738, P7746711), Includes: Ref. 1 - 21

1шт.

P1652401

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

P1728699

BUSHING

- tube

1шт.

P8849415

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

P1728699

BUSHING

- piston rod

1шт.

5

P1432953

SCREW

SET SCREW - pin

1шт.

Part of Seal Kit, P/N P5649610

1шт.

6

P827733

PIN

- locking

1шт.

Part of Seal Kit, P/N P5649610

1шт.

7

P3729168

PISTON

- cylinder

1шт.

8

P6846053

BAND

RING - wear

2шт.

Part of Seal Kit, P/N P5649610

1шт.

9

P646038

SPECIAL MAT. SEAL

SEAL - piston

2шт.

Part of Seal Kit, P/N P5649610

1шт.

10

P1846069

BACK-UP RING

BACKUP RING - piston rod O-ring

2шт.

Part of Seal Kit, P/N P5649610

1шт.

11

P30347

O-RING

- piston rod

1шт.

Part of Seal Kit, P/N P5649610

1шт.

12

P732922

SCREW

BOLT - gland

16шт.

13

P2229088

CYLINDER END CAP

GLAND - cylinder

1шт.

14

P246073

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N P5649610

1шт.

15

P1351219

SEAL

U-CUP SEAL - piston rod

1шт.

Part of Seal Kit, P/N P5649610

1шт.

16

P7846078

SEGMENT

RING - wear

4шт.

Part of Seal Kit, P/N P5649610

1шт.

17

P1730426

O-RING

- gland

1шт.

Part of Seal Kit, P/N P5649610

1шт.

18

P6846017

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N P5649610

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

- lubrication M8 x 1.25

2шт.

20

P1437456

PLUG

- cylinder, Includes: Ref. 21

2шт.

21

P945295

SEAL

O-RING - plug

1шт.

P5649610

KIT

- seal, includes Refs. 5, 6, 8 thru 11 and 14 thru 18

1шт.
